BDS Suspension 6" Lift Kit for 1977 - 1987 Cheverolet/ GMC 4WD K20 / K25, 3/4 ton Suburban and Pickup Truck   -130H

(0) Reviews: Write first review
BDS130H
Front lift is accomplished using our acclaimed Glide-Ride Leaf Spring Suspension System, featuring stand up, bolt style leaf alignment clamps, anti-friction pads, and tapered leafs.
Pricing: $1,097.31

Customize Your Item

- Sway-Bar and Accessories -
 * required
- Spring Eye Bolts -
 * required
- We also recommend -
 * required
- Would you like -
 * required
- Shock Boot Selection -
 * required
- Rear Lift Kit Upgrades: -
 * required
- Shock Options -
 * required
- Accessories -
 * required
- Steering Stabilizer -
 * required
Qty:
Free Shipping

Description

Front lift is accomplished using our acclaimed Glide-Ride Leaf Spring Suspension System, featuring stand up, bolt style leaf alignment clamps, anti-friction pads, and tapered leafs.

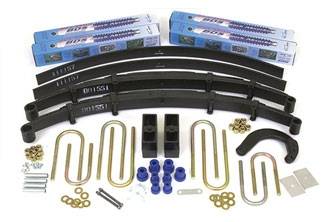

This lift kit includes new u-bolts, urethane spring bushings, and brake line relocation brackets. The kit also includes a 4" steering arm and transfer case drop kit to correct steering and driveline angles.

Rear lift options include 4" tapered blocks with an add-a-leaf or Glide-Ride leaf springs.

Features

  • Important Kit Notes

    • 1. Some vehicle came with factory front dual shocks. If you wish to replace the factory duals, you must order the additional two auxiliary shocks in the options. Both gas and hydraulic auxiliary shocks are available.
    • 2. If your vehicle is equipped with a front sway bar, you will need the sway bar shackle link kit available in the optional accessories section.
    • 3. If ordering rear leaf springs, you will need to measure the eye to eye dimension of your factory springs. Normally, 3/4 ton vehicle came with 56" springs, but some were produced with 52" rear leaf springs.

    • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 36" x 13.50" w/15 x 10 and 3-1/2" back spacing
    • Est. Installation: 6 hours
    • Difficulty Level (easy 1 - 5 complicated): 3

    Vehicle Fitment Information

    • 1977 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1978 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1979 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1980 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1981 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1982 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1983 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1984 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1985 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1986 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1987 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1977 Chevy / GMC Suburban 3/4 Ton 4WD
    • 1978 Chevy / GMC Suburban 3/4 Ton 4WD
    • 1979 Chevy / GMC Suburban 3/4 Ton 4WD
    • 1980 Chevy / GMC Suburban 3/4 Ton 4WD
    • 1981 Chevy / GMC Suburban 3/4 Ton 4WD
    • 1982 Chevy / GMC Suburban 3/4 Ton 4WD
    • 1983 Chevy / GMC Suburban 3/4 Ton 4WD
    • 1984 Chevy / GMC Suburban 3/4 Ton 4WD
    • 1985 Chevy / GMC Suburban 3/4 Ton 4WD
    • 1986 Chevy / GMC Suburban 3/4 Ton 4WD
    • 1987 Chevy / GMC Suburban 3/4 Ton 4WD
