BDS Suspension 3" Lift Kit for 2007-11 Jeep Wrangler JK 4 door 4WD - Standard Jeep or Rubicon  -1411H

(0) Reviews: Write first review
BDS1411H
Pricing: $824.90

Customize Your Item

- Rear Upper Control Arms -
 * required
- Rear Adjustable Track Bar -
 * required
- Control Arm Selection -
 * required
- Brake Lines Rear -
 * required
- Would you like -
 * required
- Shock Boot Selection -
 * required
- Rear Lower Control Arms -
 * required
- Shock Options -
 * required
- Front Lower Control Arms -
 * required
- Adjustable Track Bar -
 * required
- Brake Lines -
 * required
- Steering Stabilizer -
 * required
- Sway-Bar and Accessories -
 * required
Qty:
Free Shipping

Description

Specifically intended for 2007-11 models, this system includes an exhaust extension kit that maximizes allowable wheel travel with the factory front driveshaft.

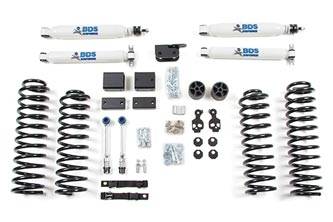

This kit comes with 3" Pro-Ride Coil Springs capable of full coil bind and 2" bump stop extensions to control the compression travel, but increase wheel travel. Brake line relocation brackets are supplied to handle the added wheel travel. Many companies don't include anything to correct your alignment, but BDS includes octo cam washers for the front lower control arms to fine tune the caster angle.

Fixed swaybar links are included for Rubicon models with the factory disconnect system, for non-Rubicon models choose between BDS Ultimate Sway Bar Disconnects or JKS Quicker Disconnects. In the rear, sway bar drop brackets are included instead of longer sway bar links to allow the use of a factory wheel and larger tire.

To correct the rear axle shift from the lift, a rear frame mounted track bar relocation bracket is included. The kit comes standard with NX² series custom valved shock absorbers for a smooth ride.

BDS carries a large selection of accessories for Jeep JK's so check out what is available for this 3" lift by customizing your system.

Features

  • Important Kit Notes

    • 1. Will not fit 2wd models.
    • 2. This kit is FMVSS No.126 Compliant
    • FMVSS No.126 compliant
    • The NHTSA's Federal Motor Vehicle Safety Standard (FMVSS) No.126 requires all new passenger vehicles to include Electronic Stability Control (ESC) systems that meet certain standards that can be tested through a comprehensive series of evasive maneuvers. Aftermarket products must meet these standards as well.

    • BDS Suspension is leading the industry by independently testing all suspension kits to verify our kits are fully compliant with the stability control system requirements set by Federal Motor Vehicle Safety Standard (FMVSS) No. 126.
    • 3. This kit is right hand drive compatible.
    • Right Hand Drive CompatibleFollow right hand drive installation instructions when installing this kit on a right hand drive vehicle.

    • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 35" x 12.50" w/16 x 8 and 4-1/2" back spacing
    • Est. Installation: 6 hours
    • Difficulty Level (easy 1 - 5 complicated): 2

    Vehicle Fitment Information

    • 2007 Jeep Wrangler JK 4 Door
    • 2008 Jeep Wrangler JK 4 Door
    • 2009 Jeep Wrangler JK 4 Door
    • 2010 Jeep Wrangler JK 4 Door
    • 2011 Jeep Wrangler JK 4 Door
    • 2007 Jeep Wrangler RHD JK 4 Door
    • 2008 Jeep Wrangler RHD JK 4 Door
    • 2009 Jeep Wrangler RHD JK 4 Door
    • 2010 Jeep Wrangler RHD JK 4 Door
    • 2011 Jeep Wrangler RHD JK 4 Door
