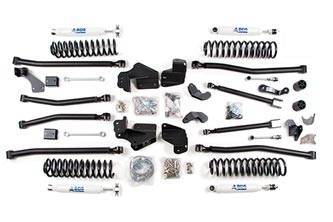

BDS Suspension 4" Long Arm 4-Link Lift Kit for 2012-18 Jeep Wrangler JK 2 Door - Rubicon and Standard - 1419H

BDS1419H
Pricing: $3,238.48

Customize Your Item

- Sway-Bar and Accessories -
 * required
- Cam Bolts -
 * required
- Brake Lines Rear -
 * required
- Shock Boot Selection -
 * required
- Rear Adjustable Track Bar -
 * required
- Shock Options -
 * required
- Accessories -
 * required
- Adjustable Track Bar -
 * required
- Brake Lines -
 * required
- Steering Stabilizer -
 * required
Qty:
Free Shipping

Description

For the ultimate performance on and off-road, BDS offers the 4'' Long Arm Suspension Lift Kit for your 2012-18 Jeep Wrangler JK. This system improves on the factory 4-link with a redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel. New mounts are constructed from 1/4" thick steel and work with the new heavy duty lower flex arms and adjustable upper flex arms to optimize handling characteristics. BDS Pro-Ride coils improve the overall ride quality and offer full coil bind capability for longevity no matter how you use or abuse them.

Fixed swaybar links are included for Rubicon models with the factory disconnect system, for non-Rubicon models choose between BDS Ultimate Sway Bar Disconnects or JKS Quicker Disconnects. Rear sway bar relocation brackets, front and rear braided stainless steel Kevlar lined brake lines, drop pitman arm, bump stop extensions, track bar brackets, and your choice of NX² series or Fox 2.0 gas shocks.

Optional accessories for this lift kit include front and rear adjustable track bars and steering stabilizer upgrades. As with all BDS lift kits this is covered under the No Fine Print Warranty, so go have fun with it, use it, and abuse it!

Features

  • Important Kit Notes

    • 1. Will not fit 2wd models.
    • 6. The front and rear driveshafts are maxed out at full droop. The front driveshaft boot can contact the transmission pan at extreme articulation on some models. Replacement of the front and rear driveshafts are recommended.
    • 7. Exhaust modification may be required.
  • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 37" x 12.50" w/16 x 8 and 4-1/2" back spacing
    • Est. Installation: 12 hours
    • Difficulty Level (easy 1 - 5 complicated): 2

    Vehicle Fitment Information

    • 2007 Jeep Wrangler JK 2 Door
    • 2008 Jeep Wrangler JK 2 Door
    • 2009 Jeep Wrangler JK 2 Door
    • 2010 Jeep Wrangler JK 2 Door
    • 2011 Jeep Wrangler JK 2 Door
    • 2012 Jeep Wrangler JK 2 Door
    • 2013 Jeep Wrangler JK 2 Door
    • 2014 Jeep Wrangler JK 2 Door
    • 2015 Jeep Wrangler JK 2 Door
