BDS Suspension 6" Lift Kit for 1988 - 1991 Chevrolet/ GMC 4WD K5 Blazer/ Full Size Jimmy, 1/2 ton Suburban - 143H

(0) Reviews: Write first review
BDS143H
Front lift is accomplished using our acclaimed Glide-Ride Leaf Spring Suspension System, featuring stand up, bolt style leaf alignment clamps, anti-friction pads, and tapered leafs.
Pricing: $1,115.20

Customize Your Item

- Sway-Bar and Accessories -
 * required
- Spring Eye Bolts -
 * required
- Rear Lift Kit Upgrades: -
 * required
- We also recommend -
 * required
- Would you like -
 * required
- Shock Boot Selection -
 * required
- Shock Options -
 * required
- Accessories -
 * required
- Steering Stabilizer -
 * required
Qty:
Free Shipping

Description

Front lift is accomplished using our acclaimed Glide-Ride Leaf Spring Suspension System, featuring stand up, bolt style leaf alignment clamps, anti-friction pads, and tapered leafs.

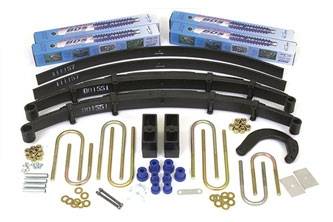

This lift kit includes new u-bolts, urethane spring bushings, and brake line relocation brackets. A 4" steering arm is included to return the steering angles back to factory location.

Rear lift options include 4" tapered blocks with an add-a-leaf or Glide-Ride leaf springs.

Features

  • Important Kit Notes

    • 1. If equipped with factory front dual shocks, select the additional two auxiliary shocks in the options. Both gas and hydraulic auxiliary shocks are available.
    • 2. If equipped with a factory front sway bar, order the sway bar shackle link kit option in the accessories.
    • 3. Typically, 1/2 ton are equipped with 52" eye to eye rear springs and 3/4 tons are equipped with 56" eye to eye springs. Unfortunately, this is not always the case. Be sure to measure the eye to eye distance on your rear leaf springs before ordering.

    • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 36" x 15" w/15 x 10 and 3-1/2" back spacing
    • Est. Installation: 6 hours
    • Difficulty Level (easy 1 - 5 complicated): 3

    Vehicle Fitment Information

    • 1988 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1989 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1990 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1991 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1988 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1989 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1990 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1991 Chevy / GMC Suburban 1/2 Ton 4WD
