BDS Suspension 4" Suspension Lift Kit System for 2014 Ford F150 2WD pickup trucks   -1504H

(0) Reviews: Write first review
BDS1504H

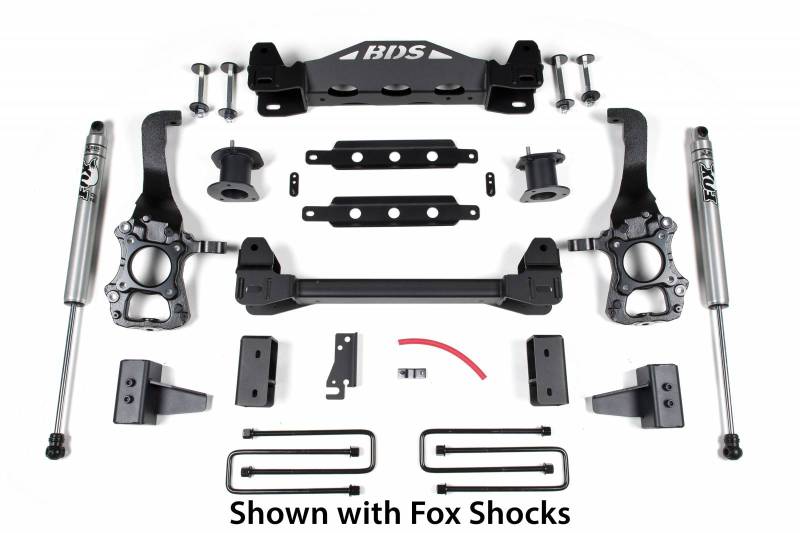

This system includes CNC machined steering knuckles to return your vehicle's steering to factory geometry. One piece front & rear High Clearance crossmembers increase rigidity for long term performance as well as dramatically increase ground clearance and curb appeal.. This system uses upper front coil spring spacers to ease installation.
Pricing: $1,852.32

Customize Your Item

- Shock Boot Selection -
 * required
- Rear Shock Selection -
 * required
Qty:
Free Shipping

Description

FMVSS No.126 compliant

This system includes CNC machined steering knuckles to return your vehicle's steering to factory geometry. One piece front & rear High Clearance crossmembers increase rigidity for long term performance as well as dramatically increase ground clearance and curb appeal.. This system uses upper front coil spring spacers to ease installation.

The rear is lifted with a new 4" offset rear block to replace the factory 2" and center the rear axle and give your 35's plenty of room.

Features

  • Important Kit Notes

    • 1. 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
    • 2. E-brake bracket required for factory powersteps (123018)
    • 4. For a level to tail low appearance use #023416 with Kit#1504H. Block kits replace factory 1-1/4" block.
    • This kit is FMVSS No.126 Compliant
    • FMVSS No.126 compliant
    • The NHTSA's Federal Motor Vehicle Safety Standard (FMVSS) No.126 requires all new passenger vehicles to include Electronic Stability Control (ESC) systems that meet certain standards that can be tested through a comprehensive series of evasive maneuvers. Aftermarket products must meet these standards as well.

    • BDS Suspension is leading the industry by independently testing all suspension kits to verify our kits are fully compliant with the stability control system requirements set by Federal Motor Vehicle Safety Standard (FMVSS) No. 126.

    • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 37" x 12.50" w/18 x 9 and 5" back spacing
    • 35" x 12.50" w/18 x 9 and 4.5" back spacing
    • 37" x 12.50" w/20 x 9 and 5-5.5" back spacing
    • Est. Installation: 8-10 hours
    • Difficulty Level (easy 1 - 5 complicated): 4

    Vehicle Fitment Information

    • 2014 Ford F150 2WD
