BDS Suspension 6" Lift Kit for 2007 - 2013 Chevrolet/GMC 4WD 1500 Series Silverado/Serria 1/2 ton pickup -176H
BDS176H
Pricing:
$2,049.10
Description
The unique BDS High Clearance design is a true blend of performance, appearance, and function.The suspension geometry of this 6" lift kit creates a factory style ride with a desert racing appearance. The black powdercoated high arched crossmembers blend perfectly with the angle of the factory installed lower control arms for a completely integrated look while lifting your vehicle a full 6" and increasing ground clearance at the front crossmember by 91%.

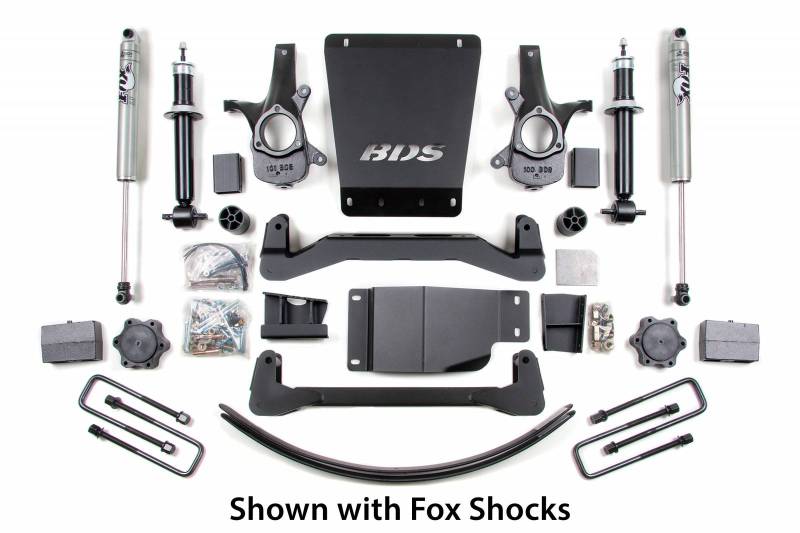

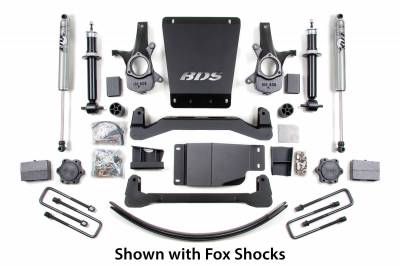

This comprehensive IFS lift kit includes ductile steering knuckles correcting steering geometry to O.E. angles and custom valved front coil over strut cylinders with 18 mm shafts designed to handle increased tire & wheel weight without sacrificing ride quality. Heavy duty front and differential skid plates are also included for extreme off road protection as well as rear NX² series shocks
Rear Glide Ride Leaf Springs, and 9500 series gas shocks are just a few of the options and upgrades available when customizing this 6" 4WD lift kit.
This comprehensive IFS lift kit includes ductile steering knuckles correcting steering geometry to O.E. angles and custom valved front coil over strut cylinders with 18 mm shafts designed to handle increased tire & wheel weight without sacrificing ride quality. Heavy duty front and differential skid plates are also included for extreme off road protection as well as rear NX² series shocks
Rear Glide Ride Leaf Springs, and 9500 series gas shocks are just a few of the options and upgrades available when customizing this 6" 4WD lift kit.
Features
Important Kit Notes - Will NOT FIT 2014
- MODEL YEAR.
- Strut compressor
- required for installation
- This system will
- not fit 2007 classic models
- Requires frame
- bracket modification
- 20" wheels
- with 5" to 5-3/4" backspacing recommended to reduce trimming.
- Traction bars will
- not fit regular cab short box models.
- Add 121651
- Auxillary Differential support bracket
- for AWD models. Also
- may require
- front driveline modification.
- Will not fit
- two-mode hybrid models
- with electronic power
- steering.
Manufacturer Notes
- BDS Suspension Lift Kit Warranty
- All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".
- If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
- Note: Stock wheels with stock tires can be reinstalled.
- Tire & Wheel Combinations
- 33" x 12.50" w/17 x 8 and 4-1/2" back spacing
- 35" x 12.50 w/17 x 9 or 18 x 9 and 5" back spacing
- 35" x 12.50" w/20 x 9 and 5.75" back spacing
- Est. Installation: 8 hours
- Difficulty Level (easy 1 - 5 complicated): 4
2007 Chevy / GMC 1/2 Ton Pickup 4WD 2008 Chevy / GMC 1/2 Ton Pickup 4WD 2009 Chevy / GMC 1/2 Ton Pickup 4WD 2010 Chevy / GMC 1/2 Ton Pickup 4WD 2011 Chevy / GMC 1/2 Ton Pickup 4WD 2012 Chevy / GMC 1/2 Ton Pickup 4WD 2013 Chevy / GMC 1/2 Ton Pickup 4WD
