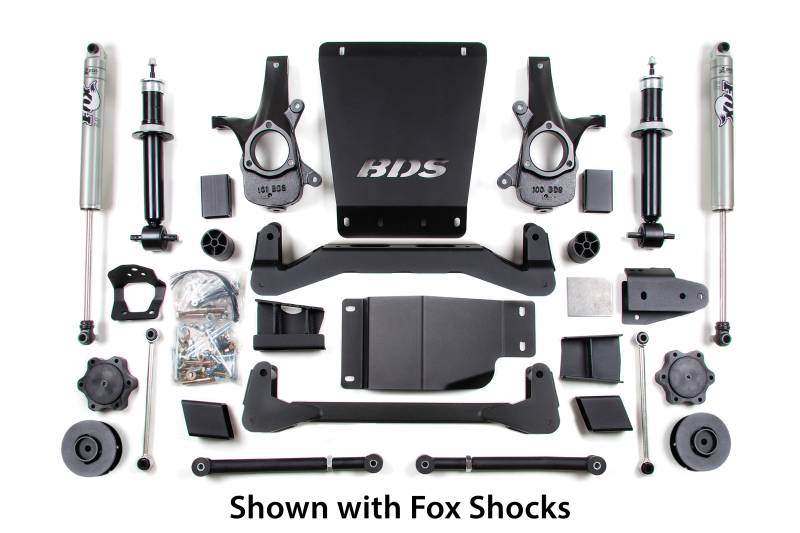

BDS Suspension 4" Lift Kit for 2007-2014 Chevrolet/GMC 4WD Avalanche, Suburban, Tahoe, Yukon, and Yukon XL 1500 1/2 ton SUVs - 188H

(0) Reviews: Write first review
BDS188H
Pricing: $2,004.89

Customize Your Item

- Rear Lift Kit Upgrades: -
 * required
- Would you like -
 * required
- Shock Boot Selection -
 * required
- Rear Shock Selection -
 * required
Qty:
Free Shipping

Description

The unique BDS High Clearance design is a true blend of performance, appearance, and function. The suspension geometry of this 4" lift kit creates a factory style ride with a desert racing appearance. The high arched crossmembers blend perfectly with the angle of the factory installed lower control arms for a completely integrated look while lifting your vehicle a full 4" and dramatically increasing ground clearance at the front crossmember.

This virtually indestructible 4" lift kit comes standard with shock absorbers, ductile steering knuckles correcting steering geometry to O.E. angles, custom valved front coil over strut cylinders with 18mm shafts designed to handle increased tire & wheel weight without sacrificing ride quality, anti-sway bar links, track bar relocation system, and adjustable upper control arms allowing you to properly adjust pinion angle. Heavy duty front and differential skid plates are also included for extreme off road protection.

The rear lift kit includes coil spring spacers to properly level the vehicle. Fox 2.0 series gas shocks are available upgrades when customizing this 4" 4WD lift kit.

Features

  • Important Kit Notes

    • 1. Will not work with auto-ride equipped vehicles.
    • 2. This system will only fit 2007 new body style.
    • 3. Strut compressor required for installation.
    • 4. Minor premature engagement of the stabilitrak system may occur during certain driving maneuvers.
    • 5. Minor frame bracket modification and welding required.
    • 6. 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
    • 8. Add 121651 Auxiliary Differential bracket for AWD models. Also may require front driveline modification.

    • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 32" x 12.50" w/17 x 8 and 4.5" back spacing
    • 33" x 12.50 w/18 x 9 and 5" back spacing
    • 33" x 12.50 w/20 x 9 and 5.75" back spacing
    • Est. Installation: 8 hours
    • Difficulty Level (easy 1 - 5 complicated): 4

    Vehicle Fitment Information

    • 2007 Chevy / GMC Avalanche 1500 4WD
    • 2008 Chevy / GMC Avalanche 1500 4WD
    • 2009 Chevy / GMC Avalanche 1500 4WD
    • 2010 Chevy / GMC Avalanche 1500 4WD
    • 2011 Chevy / GMC Avalanche 1500 4WD
    • 2012 Chevy / GMC Avalanche 1500 4WD
    • 2013 Chevy / GMC Avalanche 1500 4WD
    • 2007 Chevy / GMC Suburban 1/2 Ton 4WD
    • 2008 Chevy / GMC Suburban 1/2 Ton 4WD
    • 2009 Chevy / GMC Suburban 1/2 Ton 4WD
    • 2010 Chevy / GMC Suburban 1/2 Ton 4WD
    • 2011 Chevy / GMC Suburban 1/2 Ton 4WD
    • 2012 Chevy / GMC Suburban 1/2 Ton 4WD
    • 2013 Chevy / GMC Suburban 1/2 Ton 4WD
    • 2014 Chevy / GMC Suburban 1/2 Ton 4WD
    • 2007 Chevy / GMC Tahoe / Yukon 4WD
    • 2008 Chevy / GMC Tahoe / Yukon 4WD
    • 2009 Chevy / GMC Tahoe / Yukon 4WD
    • 2010 Chevy / GMC Tahoe / Yukon 4WD
    • 2011 Chevy / GMC Tahoe / Yukon 4WD
    • 2012 Chevy / GMC Tahoe / Yukon 4WD
    • 2013 Chevy / GMC Tahoe / Yukon 4WD
    • 2014 Chevy / GMC Tahoe / Yukon 4WD
    • 2007 Chevy / GMC Yukon XL 1/2 Ton 4WD
    • 2008 Chevy / GMC Yukon XL 1/2 Ton 4WD
    • 2009 Chevy / GMC Yukon XL 1/2 Ton 4WD
    • 2010 Chevy / GMC Yukon XL 1/2 Ton 4WD
    • 2011 Chevy / GMC Yukon XL 1/2 Ton 4WD
    • 2012 Chevy / GMC Yukon XL 1/2 Ton 4WD
    • 2013 Chevy / GMC Yukon XL 1/2 Ton 4WD
    • 2014 Chevy / GMC Yukon XL 1/2 Ton 4WD
