BDS Suspension Chevrolet/GMC 4WD 7" Lift Kit for 99-06 1500 HD Silverado/Sierra 1/2 ton pickup, 01-06 2500 NON-HD Silverado/Sierra 3/4 ton pickup, Avalanche, Suburban, and Yukon XL 2500 3/4 Ton SUVs  -189H_SUV

(0) Reviews: Write first review
BDS189H_SUV
Pricing: $2,290.11

Customize Your Item

- We also recommend -
 * required
- Traction Bars -
 * required
- Shock Boot Selection -
 * required
- Shock Options -
 * required
- Track Width Option -
 * required
- Steering Stabilizer -
 * required
Qty:
Free Shipping

Description

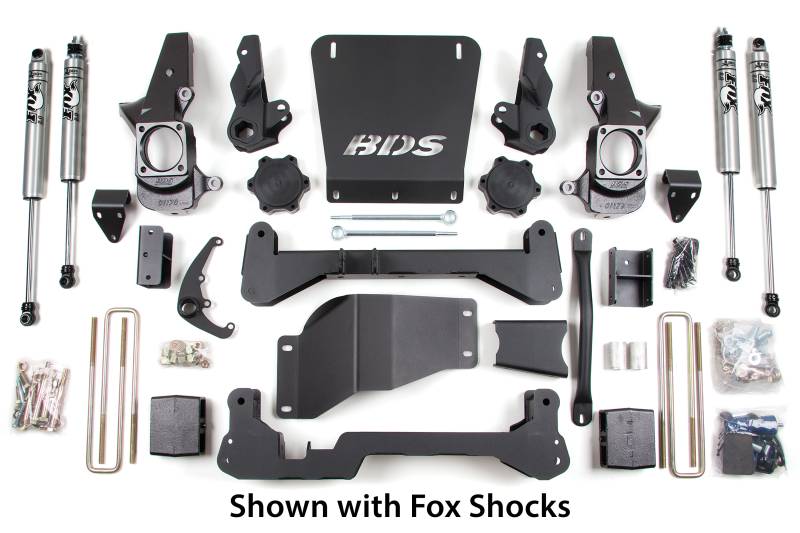

This unique High Clearance suspension lift kit utilizes high arched crossmembers that blend perfectly with the angle of the factory installed lower control arms for a completely integrated look while lifting your vehicle a full 7"dramatically increasing ground clearance at the front crossmembers and improving operating geometry. Torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar crossmember.

A front skid plate and differential skid plate come standard, to lock everything together, creating a nearly indestructible sub frame for extreme off road protection.

The rear is lifted with a flat 5" block for easy installation.

This highly customizable kit gives you the choices you need to build your rig your way. With standard or narrow track knuckles, gas shocks and dual steering stabilizers as just a few of the options and upgrades available for this 7" Chevy/GMC suspension lift kit.

Features

  • Important Kit Notes

    • 1. Torsion Bar tool required to load/unload the torsion bars.
    • 2. Some welding required.
    • 3. Requires frame bracket modification and differential mount modification.
    • 4. Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4" to 8" of lift.
    • 5. 20" wheels with 5 to 5-3/4" backspacing recommended to reduce trimming.
    • 6. Gas models require exhaust modification.
    • 7. Narrow track knuckle will slightly increase turning radius.
    • 9. Dually applications will require custom u-bolts.

    • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    Tire & Wheel Combinations

    2001-2007 Classic Body Style

    35" x 12.50" w/16 x 8 and 4-1/2" back spacing

    35" x 12.50" w/17 or 18 x 9 and 5.5" back spacing

    37" x 12.50" w/20 x 9 and 5.75" back spacing

    2007-2010 New Body Style

    35" x 12.50" w/16 x 8 and 4-1/2" back spacing

    35" x 12.50" w/17 or 18 x 9 and 5.5" back spacing

    35" x 12.50" w/20 x 9 and 5.75" back spacing

    • Tire & Wheel Combinations
    • Est. Installation: 8-10 hours
    • Difficulty Level (easy 1 - 5 complicated): 4

    Vehicle Fitment Information

    • 2001 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
    • 2002 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
    • 2003 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
    • 2004 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
    • 2005 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
    • 2006 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
    • 2001 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
    • 2002 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
    • 2003 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
    • 2004 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
    • 2005 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
    • 2006 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
    • 2001 Chevy / GMC Avalanche 2500 4WD
    • 2002 Chevy / GMC Avalanche 2500 4WD
    • 2003 Chevy / GMC Avalanche 2500 4WD
    • 2004 Chevy / GMC Avalanche 2500 4WD
    • 2005 Chevy / GMC Avalanche 2500 4WD
    • 2006 Chevy / GMC Avalanche 2500 4WD
    • 2001 Chevy / GMC Suburban 3/4 Ton 4WD
    • 2002 Chevy / GMC Suburban 3/4 Ton 4WD
    • 2003 Chevy / GMC Suburban 3/4 Ton 4WD
    • 2004 Chevy / GMC Suburban 3/4 Ton 4WD
    • 2005 Chevy / GMC Suburban 3/4 Ton 4WD
    • 2006 Chevy / GMC Suburban 3/4 Ton 4WD
    • 2001 Chevy / GMC Yukon XL 3/4 Ton 4WD
    • 2002 Chevy / GMC Yukon XL 3/4 Ton 4WD
    • 2003 Chevy / GMC Yukon XL 3/4 Ton 4WD
    • 2004 Chevy / GMC Yukon XL 3/4 Ton 4WD
    • 2005 Chevy / GMC Yukon XL 3/4 Ton 4WD
    • 2006 Chevy / GMC Yukon XL 3/4 Ton 4WD
