BDS Suspension 4-1/2" Lift Kit for 2000 - 2006 Chevrolet/GMC 4WD Avalanche, Suburban, Tahoe, Yukon, and Yukon XL, Escalade AWD, 1500 1/2 ton SUVs  -191H

(0) Reviews: Write first review
BDS191H
The unique BDS High Clearance design is a true blend of performance, appearance, and function. The suspension geometry of this 4-1/2" lift kit creates a factory style ride with a desert racing appearance. The high arched crossmembers blend perfectly with the angle of the factory installed lower control arms for a completely integrated look while lifting your vehicle a full 4-1/2" and increasing ground clearance at the front crossmember by 91%.
Pricing: $2,260.58

Customize Your Item

- Shock Boot Selection -
 * required
- Shock Options -
 * required
- Steering Stabilizer -
 * required
Qty:
Free Shipping

Description

The unique BDS High Clearance design is a true blend of performance, appearance, and function. The suspension geometry of this 4-1/2" lift kit creates a factory style ride with a desert racing appearance. The high arched crossmembers blend perfectly with the angle of the factory installed lower control arms for a completely integrated look while lifting your vehicle a full 4-1/2" and increasing ground clearance at the front crossmember by 91%.

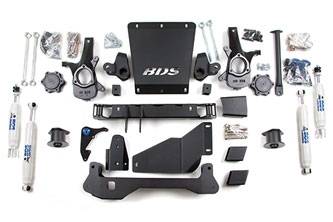

This complete suspension lift kit comes with front and rear hydraulic shock absorbers and ductile steering knuckles correcting steering geometry to factory angles. Heavy duty front and differential skid plates are also included for extreme off road protection.

The rear lift is accomplished with new coil springs, track bar relocation, sway bar links and extended bump stops.

Relocation bracket kit for Auto Ride equipped vehicles and dual steering stabilizers are a few of the available options and upgrades when you customize this BDS 4-1/2" suspension lift kit.

Features

  • Important Kit Notes

    • 1. Special tool (Kent Moore Tools Part# J-42393) required to unload/load torsion bars. Not available through BDS.
    • 2. Requires frame bracket modification and differential mount modification.
    • 3. All wheel drive models will require front drive line modification.
    • 4. If equipped with stock 17" wheels, then must replace with 17" or larger aftermarket wheels.
    • 5. Larger tires cannot be installed on OEM wheels.
    • 6. Auto-Ride equipped vehicles require part #121400 or #121011 in place of front and rear shocks.
    • 7. System will not fit 2000 model Escalades.

    • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 32" x 11.50" w/16 or 17 x 8 and 4.5" back spacing
    • 33" x 12.50" w/18 x 9 and 5" back spacing
    • 33" x 12.50" w/20 x 9 and 5.75" back spacing
    • Est. Installation: 8-10 hours
    • Difficulty Level (easy 1 - 5 complicated): 4

    Vehicle Fitment Information

    • 2000 Chevy / GMC Avalanche 1500 4WD
    • 2001 Chevy / GMC Avalanche 1500 4WD
    • 2002 Chevy / GMC Avalanche 1500 4WD
    • 2003 Chevy / GMC Avalanche 1500 4WD
    • 2004 Chevy / GMC Avalanche 1500 4WD
    • 2005 Chevy / GMC Avalanche 1500 4WD
    • 2006 Chevy / GMC Avalanche 1500 4WD
    • 2000 Chevy / GMC Escalade AWD
    • 2001 Chevy / GMC Escalade AWD
    • 2002 Chevy / GMC Escalade AWD
    • 2003 Chevy / GMC Escalade AWD
    • 2004 Chevy / GMC Escalade AWD
    • 2005 Chevy / GMC Escalade AWD
    • 2006 Chevy / GMC Escalade AWD
    • 2000 Chevy / GMC Suburban 1/2 Ton 4WD
    • 2001 Chevy / GMC Suburban 1/2 Ton 4WD
    • 2002 Chevy / GMC Suburban 1/2 Ton 4WD
    • 2003 Chevy / GMC Suburban 1/2 Ton 4WD
    • 2004 Chevy / GMC Suburban 1/2 Ton 4WD
    • 2005 Chevy / GMC Suburban 1/2 Ton 4WD
    • 2006 Chevy / GMC Suburban 1/2 Ton 4WD
    • 2000 Chevy / GMC Tahoe / Yukon 4WD
    • 2001 Chevy / GMC Tahoe / Yukon 4WD
    • 2002 Chevy / GMC Tahoe / Yukon 4WD
    • 2003 Chevy / GMC Tahoe / Yukon 4WD
    • 2004 Chevy / GMC Tahoe / Yukon 4WD
    • 2005 Chevy / GMC Tahoe / Yukon 4WD
    • 2006 Chevy / GMC Tahoe / Yukon 4WD
    • 2000 Chevy / GMC Yukon XL 1/2 Ton 4WD
    • 2001 Chevy / GMC Yukon XL 1/2 Ton 4WD
    • 2002 Chevy / GMC Yukon XL 1/2 Ton 4WD
    • 2003 Chevy / GMC Yukon XL 1/2 Ton 4WD
    • 2004 Chevy / GMC Yukon XL 1/2 Ton 4WD
    • 2005 Chevy / GMC Yukon XL 1/2 Ton 4WD
    • 2006 Chevy / GMC Yukon XL 1/2 Ton 4WD
