BDS Suspension 6" Lift Kit for 1992-1998 Chevrolet/GMC 4WD 1500 1/2 ton Suburban, Tahoe, Yukon and 2500 6 lug 3/4 ton Suburban SUVs - 193H_SUV

(0) Reviews: Write first review
BDS193H_SUV
Pricing: $2,286.95

Customize Your Item

- 2 Door or 4 Door? -
 * required
- Shock Boot Selection -
 * required
- Shock Selection -
 * required
- Steering Stabilizers -
 * required
Qty:
Free Shipping

Description

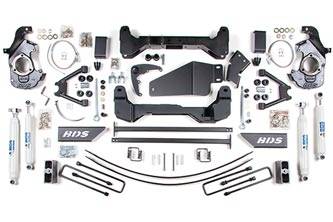

This tightly engineered 6" suspension lift kit is designed around two heavy duty upper A-arms, one-piece 1/4" laser cut high clearance crossmembers and replacement steering knuckles. This combination offers zero track width change unlike many knuckle kits on the market.

The high clearance crossmembers increase ground clearance for off road performance while compression struts support the crossmembers under impact. This lift kit also includes replacement steering knuckles to maintain proper steering angles and ball joint angles, front stainless steel braided brake lines for optimum performance and ease of installation, plus a differential skid plate is included for off road protection.

Customize this 6" BDS suspension lift kit with upgrades like dual steering stabilizers, traction bars, rear stainless steel braided brake lines, and more.

Features

  • Important Kit Notes

    • 1. Requires exhaust modification.
    • 2. Special tool (Kent Moore Tools Part #J-36202-A) required to unload/load torsion bars.
    • Not available through BDS.
    • 3. Requires frame bracket modification and differential mount modification.
    • 4. All models equipped with auto-trac may require a new front driveshaft. The auto-trac New Process 246 transfer case can be identified by the silver dollar
    • sized plaque on the rear of the transfer case that reads "NP246". The dash mounted display will display the Auto 4WD symbol. NP243 is not auto-trac.
    • 5. Aftermarket wheels required. (See tire and wheel chart in back of catalog)
    • 6. System will not work on some 88-95 vehicles equipped with spindle mounted front ABS sensor.
    • 7. Four door models require 121002 Torsion Bar Crossmember Kit.

    • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 35" x 12.50" w/15 x 8 and 3-5/8" back spacing
    • 35" x 12.50" w/16 or 17 x 8 and 4-1/2" back spacing
    • 35" x 12.50" w/20 x 9 and 5-1/4" back spacing
    • Est. Installation: 8 hours
    • Difficulty Level (easy 1 - 5 complicated): 4

    Vehicle Fitment Information

    • 1992 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1993 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1994 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1995 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1996 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1997 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1998 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1992 Chevy / GMC Suburban 3/4 Ton 4WD 6 Lug
    • 1993 Chevy / GMC Suburban 3/4 Ton 4WD 6 Lug
    • 1994 Chevy / GMC Suburban 3/4 Ton 4WD 6 Lug
    • 1995 Chevy / GMC Suburban 3/4 Ton 4WD 6 Lug
    • 1996 Chevy / GMC Suburban 3/4 Ton 4WD 6 Lug
    • 1997 Chevy / GMC Suburban 3/4 Ton 4WD 6 Lug
    • 1998 Chevy / GMC Suburban 3/4 Ton 4WD 6 Lug
    • 1992 Chevy / GMC Tahoe / Yukon 4WD
    • 1993 Chevy / GMC Tahoe / Yukon 4WD
    • 1994 Chevy / GMC Tahoe / Yukon 4WD
    • 1995 Chevy / GMC Tahoe / Yukon 4WD
    • 1996 Chevy / GMC Tahoe / Yukon 4WD
    • 1997 Chevy / GMC Tahoe / Yukon 4WD
    • 1998 Chevy / GMC Tahoe / Yukon 4WD
