BDS Suspension 6" Extended Radius Arm Lift Kit for 1980-1996 Full Size Bronco w/power steering   -367H

(0) Reviews: Write first review
BDS367H
Pricing: $1,668.00

Customize Your Item

- Other Options -
 * required
- Would you like -
 * required
- Shock Boot Selection -
 * required
- Rear Lift Kit Upgrades: -
 * required
- Shock Options -
 * required
- Alignment Cam -
 * required
- Sway-Bar and Accessories -
 * required
- Single Steering Stabilizer -
 * required
Qty:
Free Shipping

Description

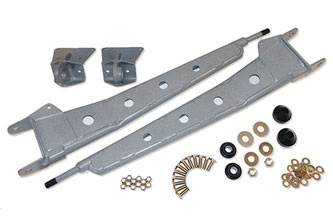

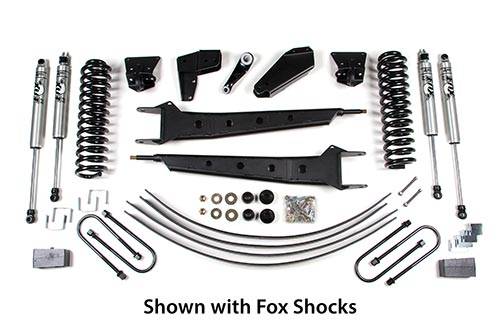

A complete 6" lift system with a reputation of being nearly indestructible. This legendary lift kit system starts with two front Pro-Ride Coil Springs, then adds a new pitman arm for steering correction, heavy duty radius arms and axle pivot relocation brackets. The extended radius arm system will reduce caster change through wheel travel creating a more capable and controlled feeling in the steering wheel both on and off road.

Rear lift kit comes with new custom valved NX² series shocks and is lifted via 2" block and u-bolt kit for easy installation.

Rear options include a dual add-a-leaf kit (shown) or complete new BDS Glide-Ride Leaf Springs.

Addtional customizations for this 6" suspension lift kit include anti-sway bar drop bracket kit, single or dual steering stabilizer kits, and more.

Features

  • Important Kit Notes

    • 1. Front end alignment required. Alignment cams may be required. See page 118.
    • 3. #123401 recommended if equipped with a front anti-sway bar. Ford produced 3 different styles of sway bar systems
    • between 1980 and 1996. In extremely rare cases, modification may be required.
    • 4. #003208, #003408 and #003608 come with OE style bushings installed.
    • 5. Add two front auxiliary shocks if the vehicle is equipped with factory dual mounts.
    • 6. Extended brake lines required.
    Some vehicles were equipped with factory dual front shocks. Check your vehicle and select the appropriate option to ensure the correct number of front shocks are ordered.

    • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 35" x 12.50" w/15 x 8 and 3-1/2" back spacing
    • Est. Installation: 6 hours
    • Difficulty Level (easy 1 - 5 complicated): 3

    Vehicle Fitment Information

    • 1980 Ford Bronco 4WD Full Size
    • 1981 Ford Bronco 4WD Full Size
    • 1982 Ford Bronco 4WD Full Size
    • 1983 Ford Bronco 4WD Full Size
    • 1984 Ford Bronco 4WD Full Size
    • 1985 Ford Bronco 4WD Full Size
    • 1986 Ford Bronco 4WD Full Size
    • 1987 Ford Bronco 4WD Full Size
    • 1988 Ford Bronco 4WD Full Size
    • 1989 Ford Bronco 4WD Full Size
    • 1990 Ford Bronco 4WD Full Size
    • 1991 Ford Bronco 4WD Full Size
    • 1992 Ford Bronco 4WD Full Size
    • 1993 Ford Bronco 4WD Full Size
    • 1994 Ford Bronco 4WD Full Size
    • 1995 Ford Bronco 4WD Full Size
    • 1996 Ford Bronco 4WD Full Size
