BDS Suspension 4" Suspension Lift Kit for 1980-1983 Ford F100 2WD and 1980-1996 Ford F150 2WD - 398H

(0) Reviews: Write first review
BDS398H

This kit includes two front Pro-Ride Coil Springs to level out your Ford. The box kit includes a new pitman arm for steering correction, heavy duty radius arm drop brackets, and axle pivot relocation brackets.

The rear kit includes a dual add-a-leaf kit. If your stock springs are warn out, these will bring them back to life.

Was: $1,018.39
Sale: $967.45
Save: 5%
Save: $50.94

Customize Your Item

- Coil Spring Selection -
 * required
- Optional Accessories & Upgrades -
 * required
- Shock Options -
 * required
- Accessories -
 * required
- Sway-Bar and Accessories -
 * required
Qty:
Free Shipping

Description

Easily fit larger tires on your Ford 1980-1983 F100 and 1980-1996 F150 2WD truck with a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

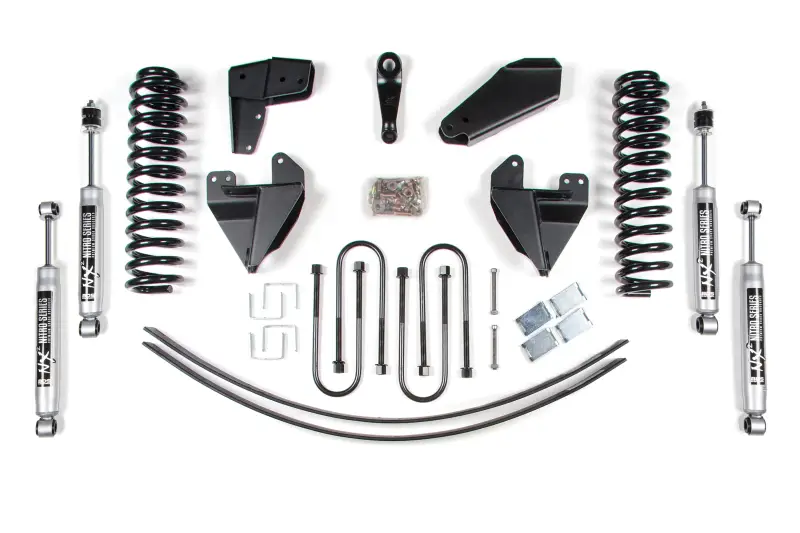

Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, radius arm drop brackets, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Features & Benefits

  • Easy, Bolt-on installation
  • Standard cab models only
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty steel drop brackets for proper suspension geometry
  • Cast steel blocks provide level stance from front to rear
  • NX2 Nitro shocks with vehicle-specific valving for better control

Recommended Tires & Wheels

  • 33 x 12.5 with 15 x 8 and 3.5 in. Backspace

IMPORTANT NOTES

  1. If your vehicle is equipped with a front anti-sway bar, you will want a 123401 available in the options.
  2. Front ball joint alignment cams will be required for alignment.
  3. Does not fit F150 models without power steering.
  4. Fits Standard cab models only.
  • Front Lift Method : Coil Spring
  • Rear Lift Method : Leaf Spring
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 2"

Features

  • Important Kit Notes

    • 1. If your vehicle is equipped with a front anti-sway bar, you will want a 123401 available in the options.
    • 2. We have specific coils available for the regular cab and extra cab, please make your selection in the customize your kit step before check out.
    • 3. Front ball joint alignment cams will be required for alignment.
    • 4. Does not fit F150 models without power steering.
    Some vehicles were equipped with factory dual front shocks. Check your vehicle and select the appropriate option to ensure the correct number of front shocks are ordered.

    • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 33" x 12.50" w/15 x 8 and 3-1/2" back spacing
    • Est. Installation: 6 hours
    • Difficulty Level (easy 1 - 5 complicated): 3

    Vehicle Fitment Information

    • 1980 Ford F100 2WD
    • 1981 Ford F100 2WD
    • 1982 Ford F100 2WD
    • 1983 Ford F100 2WD
    • 1980 Ford F150 2WD
    • 1981 Ford F150 2WD
    • 1982 Ford F150 2WD
    • 1983 Ford F150 2WD
    • 1984 Ford F150 2WD
    • 1985 Ford F150 2WD
    • 1986 Ford F150 2WD
    • 1987 Ford F150 2WD
    • 1988 Ford F150 2WD
    • 1989 Ford F150 2WD
    • 1990 Ford F150 2WD
    • 1991 Ford F150 2WD
    • 1992 Ford F150 2WD
    • 1993 Ford F150 2WD
    • 1994 Ford F150 2WD
    • 1995 Ford F150 2WD
    • 1996 Ford F150 2WD
