BDS Suspension 4-1/2" Lift Kit for 2003 - 2006 Jeep Wrangler TJ Unlimited   -456H_Unlimited

BDS456H_Unlimited

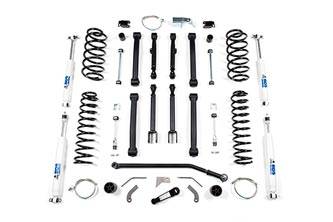

The 4.5" standard lift is anything but standard and comes with front and rear Pro-Ride Coil Springs. BDS corrects the steering geometry using a dropped pitman arm and adjustable front track bar. Kevlar lined stainless steel brakelines front and rear will handle the added wheel travel from this system. Front and rear fixed length lower control arms and front and rear adjustable upper control arms all come standard. In addition, front and rear bump stop extensions to control compression travel and cam bolts for proper alignment are included. The rear track bar relocation bracket, centers the axle while the longer rear sway bar links help fight body roll. For the most possible articulation, easy one handed operation, BDS ultimate sway bar disconnects are included. As always, all non-wear items are covered by the BDS No Fine Print Warranty.
Not Available
Pricing: $1,761.05

Description

The 4.5" standard lift is anything but standard and comes with front and rear Pro-Ride Coil Springs. BDS corrects the steering geometry using a dropped pitman arm and adjustable front track bar. Kevlar lined stainless steel brakelines front and rear will handle the added wheel travel from this system. Front and rear fixed length lower control arms and front and rear adjustable upper control arms all come standard. In addition, front and rear bump stop extensions to control compression travel and cam bolts for proper alignment are included. The rear track bar relocation bracket, centers the axle while the longer rear sway bar links help fight body roll. For the most possible articulation, easy one handed operation, BDS ultimate sway bar disconnects are included. As always, all non-wear items are covered by the BDS No Fine Print Warranty.

This BDS 4.5" suspension lift has many upgrades available. You can choose the standard or ultimate kit, or choose individual components. The Ultimate kit that gives you the most popular upgrades with a low package price. The ultimate kit adds adjustable front and rear lower control arms and adjustable rear track bar for a fully adjustable and impressive system.

BDS carries a large selection of accessories for this system, including adjustable flex control arms, belly pan, skid plates, and more. Find out what more is by customizing your system.


*PLEASE NOTE THAT IF CHOOSING THE
ULTIMATE SHORT ARM LIFT, PLEASE SEE WHAT IT COMES WITH*


The ultimate short arm system contains everything the base
kit includes plus adjustable lower control arms and a rear track bar.

"

Features

  • Important Kit Notes

    • 1. Rubicon models may require OEM skid plate modification.
    • 2. Manual transmission models may need the shifter opening in the floorboard enlarged.
    • 3. Although extremely unusual an aftermarket CV style rear driveshaft maybe required.
    • 4. Some welding required.
  • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 33" x 12.50" w/16 x 8 and 3-1/2" back spacing
    • Est. Installation: 8 hours
    • Difficulty Level (easy 1 - 5 complicated): 3

    Vehicle Fitment Information

    • 2003 Jeep Wrangler LJ Unlimited
    • 2004 Jeep Wrangler LJ Unlimited
    • 2005 Jeep Wrangler LJ Unlimited
    • 2006 Jeep Wrangler LJ Unlimited

    Details
