Additional Images

BDS Suspension 6" 4-Link Suspension Lift Kit for 2008-2010 Ford F250/F350 4WD pickup truck   -560H

(0) Reviews: Write first review
BDS560H

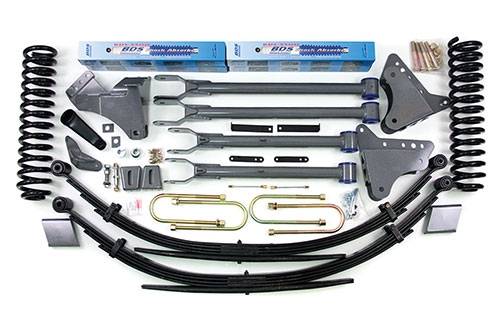

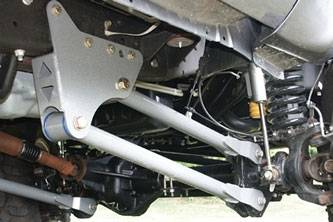

This kit includes two 6" Pro-Ride Coil Springs. This full replacement four link system is centered around 4 massive control arms featuring greasable ends. The 4-link system reduces caster change through wheel travel creating a more controlled feel both on and off road. The kit also comes with a new steering stabilizer, anti-sway bar drop brackets, a dropped pitman arm for steering angle correction, a track bar relocation bracket to properly center your axle and bump stop extension.
Pricing: $2,560.57

Customize Your Item

- Driveshaft -
 * required
- Shock Boot Selection -
 * required
- Engine Type -
 * required
- Rear Lift Kit Upgrades: -
 * required
- Adjustable Track Bar -
 * required
- Shock Options -
 * required
- Steering Stabilizer -
 * required
- Sway-Bar and Accessories -
 * required
Qty:
Free Shipping

Description

This kit includes two 6" Pro-Ride Coil Springs. This full replacement four link system is centered around 4 massive control arms featuring greasable ends. The 4-link system reduces caster change through wheel travel creating a more controlled feel both on and off road. The kit also comes with a new steering stabilizer, anti-sway bar drop brackets, a dropped pitman arm for steering angle correction, a track bar relocation bracket to properly center your axle and bump stop extension.

The rear is lifted via a 5" block kit or full replacement leaf spring options.

Choose between gas and diesel configurations, as well as plenty of upgrades and accessories when customizing your kit.

Features

  • Important Kit Notes

    • 1. Removal of the factory block is required.
    • 2. Installation of the rear block kit will result in a "pre-runner" look with the rear of the vehicle 2" lower than the front. To get a level stance you must upgrade to the rear leaf spring option.
    • 3. These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
    • 4. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section.
    • 5. Although extremely rare, front driveline vibration may occur.
    • 6. Front exhaust modification may be required to clear the front driveshaft on gas models.
    • 7. U-bolts will not fit dually models.
    • 8. Dropped pitman arm will not fit 10 lug wide track F350 models.

    • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 37" x 13.50" w/17 x 9 and 4" back spacing
    • Est. Installation: 8 hours
    • Difficulty Level (easy 1 - 5 complicated): 3

    Vehicle Fitment Information

    • 2008 Ford F250 / F350
    • 2009 Ford F250 / F350
    • 2010 Ford F250 / F350

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • Free Shipping
