BDS Suspension 4" 2013 - 2018 Dodge Ram 1500 4WD Gas/Eco-Diesel 1/2 Ton Pickup - 670H
BDS670H
Pricing:
$2,345.96
Description

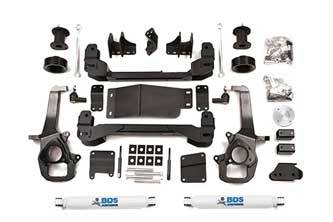

This 4" lift kit will clear up to 35" tires and is based around two one-piece, 1/4" laser cut high-clearance crossmembers and replacement steering knuckles. The high-clearance crossmembers increase ground clearance for off road performance.
The replacement steering knuckles reduce installation time as well as maintain proper steering angles and ball joint angles. A differential skid plate is included for off road protection.
The system also includes bump stop drops, anti-sway bar links, 3 point differential drop system, strut relocation brackets, and front stainless steel brake lines.
The rear is lifted via BDS 2" coil spacers to level most trucks. The rear for this Dodge Ram lift kit is completed with a track bar bracket, upper link relocation brackets and sway bar links. A 3" rear coil spring option is available depending on your desired stance.
Check out more options and build your own kit by clicking on customize this kit.
The replacement steering knuckles reduce installation time as well as maintain proper steering angles and ball joint angles. A differential skid plate is included for off road protection.
The system also includes bump stop drops, anti-sway bar links, 3 point differential drop system, strut relocation brackets, and front stainless steel brake lines.
The rear is lifted via BDS 2" coil spacers to level most trucks. The rear for this Dodge Ram lift kit is completed with a track bar bracket, upper link relocation brackets and sway bar links. A 3" rear coil spring option is available depending on your desired stance.
Check out more options and build your own kit by clicking on customize this kit.
Features
Important Kit Notes
1. The rack and pinion steering system is extremely sensative to an out-of -round or out-of-balance tire/wheel combination. The larger the tire and the less the backspacing, the more sensative the system becomes, causing minor steering wheel shimmy. 2. Not recommended for AWD models. 3. Stock 17" wheels can not be re-installed. Stock 20" can be reinstalled with factory tire. 4. Will not fit adjustable air suspension equipped models 5. This kit is FMVSS No.126 Compliant
The NHTSA's Federal Motor Vehicle Safety Standard (FMVSS) No.126 requires all new passenger vehicles to include Electronic Stability Control (ESC) systems that meet certain standards that can be tested through a comprehensive series of evasive maneuvers. Aftermarket products must meet these standards as well. BDS Suspension is leading the industry by independently testing all suspension kits to verify our kits are fully compliant with the stability control system requirements set by Federal Motor Vehicle Safety Standard (FMVSS) No. 126.
Manufacturer Notes
BDS Suspension Lift Kit Warranty
Tire & Wheel Combinations 35" x 12.50" w/17 x 9 and 4-1/2" back spacing 35" x 12.50" w/18 or 20 x 9 and 5" back spacing Est. Installation: 10 hours Difficulty Level (easy 1 - 5 complicated): 4
Vehicle Fitment Information
2013 Dodge / Ram Ram 1/2 Ton Pickup 1500 2014 Dodge / Ram Ram 1/2 Ton Pickup 1500
