ROUGH COUNTRY 4 INCH LIFT KIT | GMC C15/K15 TRUCK/HALF-TON SUBURBAN 4WD (69-72)
RC-10030
Pricing:
$469.95
Description
Give your truck an impressive upgrade, front to back with Rough Country’s 4" GM Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance.
This kit features a set of front lifted leaf springs allowing you gain additional ride height without sacrificing ride quality or performance. A set of rear blocks and brake line brackets are provided to keep everything at optimum angles for a factory-like ride, even after lifting.
A set of Rough Country's premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.
Get the wheels you want! Rough Country's 4" GM Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.
Best of all, Rough Country's 4” GM Suspension Lift Kit is backed by our Lifetime Replacement Warranty.
FEATURES
- Increased ground clearance
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
NOTES - IMPORTANT
- If vehicle is equipped with a front sway-bar, drop brackets are recommended. (#1019)
- Optional steering arm only fits models with 3-bolt open knuckle steering.

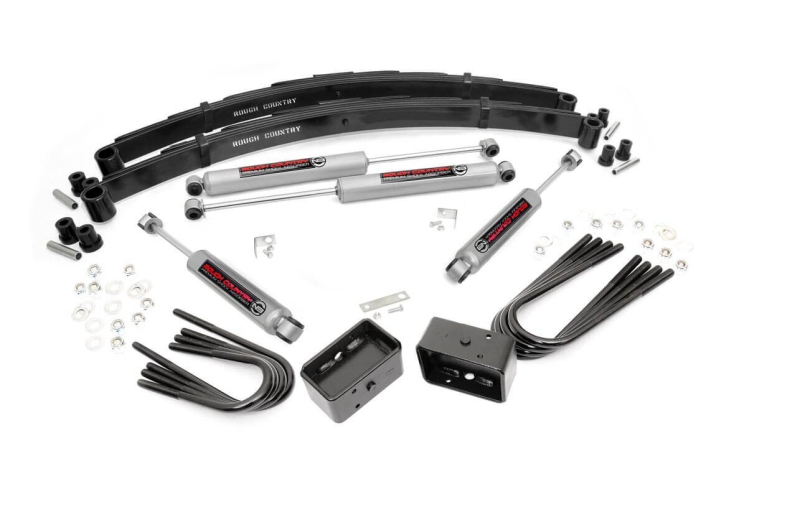

FRONT
- Lifted leaf springs
- Brake line relocation brackets
- U-bolts
- Hardware
REAR
- 4" lift blocks
- U-bolts
- Hardware
SHOCKS
- (4) Premium N3 series
| SKU | 10030 |
|---|---|
| Est. Install Time | 6 - 8 hours |
| 1969-1972 | 4WD | Chevy | C10/K10 Pickup |
| 1969-1972 | 4WD | Chevy | C10/K10 Suburban |
| 1969-1972 | 4WD | Chevy | C20/K20 Pickup |
| 1969-1972 | 4WD | Chevy | K5 Blazer |
| 1969-1972 | 4WD | GMC | C15/K15 Pickup |
| 1969-1972 | 4WD | GMC | C15/K15 Suburban |
| 1969-1972 | 4WD | GMC | C25/K25 Pickup |
| 1970-1972 | 4WD | GMC | Jimmy |
| TIRE | WHEEL | BOLT PATTERN | OFFSET | NOTE |
|---|---|---|---|---|
| 35x12.50R15 | 15x8 | 6x5.5 | +0 | - |
| 315/75R16 | 16x8 | 6x5.5 | +0 | - |
| 315/70R17 | 17x9 | 6x5.5 | -12 | - |
| 315/70R17 | 17x9 | 6x5.5 | -6 | - |
| 315/70R17 | 17x9 | 6x5.5 | +0 | - |
| 315/65R18 | 18x9 | 6x5.5 | -12 | - |
| 315/65R18 | 18x9 | 6x5.5 | -6 | - |
| 315/65R18 | 18x9 | 6x5.5 | +0 | - |
| 315/55R20 | 20x9 | 6x5.5 | -12 | - |
| 315/55R20 | 20x9 | 6x5.5 | -6 | - |
| 315/55R20 | 20x9 | 6x5.5 | +0 | - |
