ROUGH COUNTRY 4.75 INCH LIFT KIT COMBO | CHEVY/GMC 1500 (07-13)
RC-257.20
Pricing:
$649.95
Description
This 4.75" combo kit features our Nitrogen charged N3 Shocks offer the best in balanced performance for on and off-road use, featuring a 10-stage velocity sensitive valving custom tuned for this specific application. That means these shocks are specifically valved for use with this specific vehicle and lift combo, giving you unparalleled performance for any driving situation.
This kit also features upgraded ball joints that are easy to install and maintenance free. These POM ball joints offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design.
Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.
This kit also features upgraded ball joints that are easy to install and maintenance free. These POM ball joints offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design.
Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.
FEATURES
- Easy bolt-on installation
- Maintains factory ride quality
- Increased ground clearance
- Able to be returned to stock
- Levels the front with the rear of the vehicle
- No need to disassemble your struts to install
- Differential drops maintain proper axle angle.
- Control arms include POM ball joints for greater range of motion and easier installation.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- Body lift provides 1.25" of lift as opposed to the standard 1".
- Body lift includes front bumper brackets.
NOTES - IMPORTANT
- Requires minor cutting and drilling.
- Does NOT fit 2007 "Classic" models.
- Does NOT fit models with electric steering.
- Will NOT work with manual 4x4 floor shifter.
- New fabricated blocks replace your factory block.
- Retain your factory wheels with our 0.25" wheel spacers (#1065).

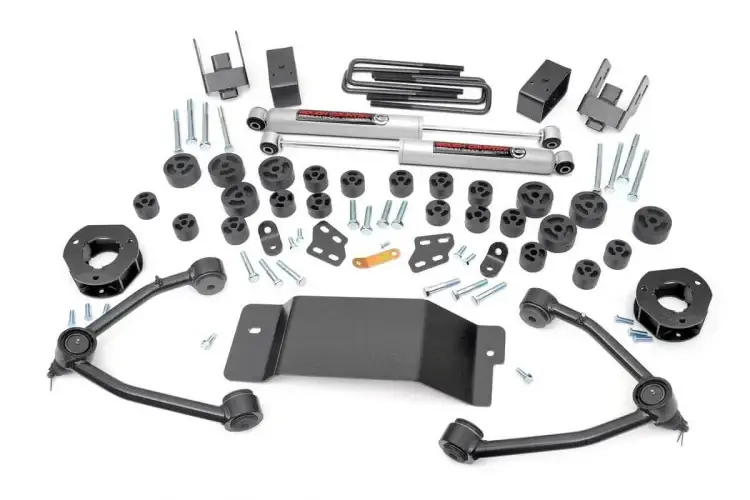

FRONT
- Upper strut spacers
- Upper control arms
- Upper ball joints
- Differential drops
- Differential skid plate
- Hardware
REAR
- 3in fabricated lift blocks
- U-bolts
- Hardware
SHOCKS
- (2) Rear Premium N3 series
| SKU | 257.20 |
|---|---|
| Est. Install Time | 6 - 8 hours |
| 2007-2013 | 4WD | Chevy | Silverado 1500 |
| 2007-2013 | 4WD | GMC | Sierra 1500 |
| 305/70R17 | Factory 17 | 6x5.5 | - | - |
| 295/70R17 | 17x9 | 6x5.5 | +0 | - |
| 295/70R17 | 17x9 | 6x5.5 | +1 | - |
| 295/70R17 | 17x9 | 6x5.5 | +12 | - |
| 295/70R17 | 17x9 | 6x5.5 | +18 | - |
| 33x12.50R17 | 17x9 | 6x5.5 | -12 | - |
| 33x12.50R17 | 17x9 | 6x5.5 | +0 | - |
| 33x12.50R17 | 17x9 | 6x5.5 | +1 | - |
| 305/65R18 | Factory 18 | 6x5.5 | - | - |
| 285/65R18 | 18x9 | 6x5.5 | +0 | - |
| 285/65R18 | 18x9 | 6x5.5 | +1 | - |
| 285/65R18 | 18x9 | 6x5.5 | +12 | - |
| 285/65R18 | 18x9 | 6x5.5 | +18 | - |
| 33x12.50R18 | 18x9 | 6x5.5 | -12 | - |
| 33x12.50R18 | 18x9 | 6x5.5 | +0 | - |
| 33x12.50R18 | 18x9 | 6x5.5 | +1 | - |
| 305/55R20 | Factory 20 | 6x5.5 | - | - |
| 33x12.50R20 | 20x9 | 6x5.5 | -12 | - |
| 33x12.50R20 | 20x9 | 6x5.5 | +0 | - |
| 33x12.50R20 | 20x9 | 6x5.5 | +1 | - |
| 295/55R20 | 20x9 | 6x5.5 | +0 | - |
| 295/55R20 | 20x9 | 6x5.5 | +1 | - |
| 295/55R20 | 20x9 | 6x5.5 | +12 | - |
| 295/55R20 | 20x9 | 6x5.5 | +18 | - |
| 33x12.50R20 | 20x10 | 6x5.5 | -25 | Trimming Required |
| 33x12.50R20 | 20x10 | 6x5.5 | -24 | Trimming Required |
| 33x12.50R20 | 20x10 | 6x5.5 | -19 | Trimming Required |
| 33x12.50R20 | 20x10 | 6x5.5 | -18 | Trimming Required |
| 33x12.50R20 | 20x12 | 6x5.5 | -25 | Trimming Required |
| 33x12.50R20 | 20x12 | 6x5.5 | -24 | Trimming Required |
| 33x12.50R20 | 20x12 | 6x5.5 | -19 | Trimming Required |
| 33x12.50R20 | 20x12 | 6x5.5 | -18 | Trimming Required |
| 33x12.50R20 | 20x12 | 6x5.5 | -44 | Trimming Required |
| 33x12.50R22 | 22x12 | 6x5.5 | -25 | Trimming Required |
| 33x12.50R22 | 22x12 | 6x5.5 | -24 | Trimming Required |
| 33x12.50R22 | 22x12 | 6x5.5 | -19 | Trimming Required |
| 33x12.50R22 | 22x12 | 6x5.5 | -18 | Trimming Required |
| 33x12.50R22 | 22x12 | 6x5.5 | -44 | Trimming Required |
