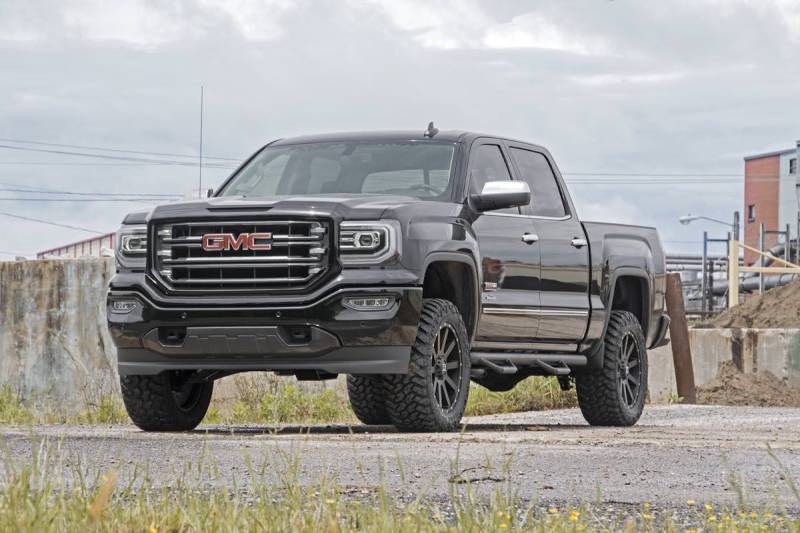

ROUGH COUNTRY 3.5 INCH LIFT KIT CHEVY/GMC 1500 (07-16)

RC-19431A-19470-19457-19450-27731
Pricing: $669.95

Customize Your Item

- Select Configuration -
 * required
Qty:
Free Shipping

Description

This all-inclusive kit comes with several fantastic features - all at a price that'll leave plenty of room for new tires and wheels! This kit includes Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.

This kit also features upgraded ball joints that are easy to install and maintenance free. These POM ball joints offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.

FEATURES

    • Increased ground clearance.
    • Can be returned to stock height!
    • Differential drops maintain proper axle angle.
    • Control arms include POM ball joints for greater range of motion and easier installation.
    • Ball joints are pre-installed to ease installation.
    • Rear fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
    • Features application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

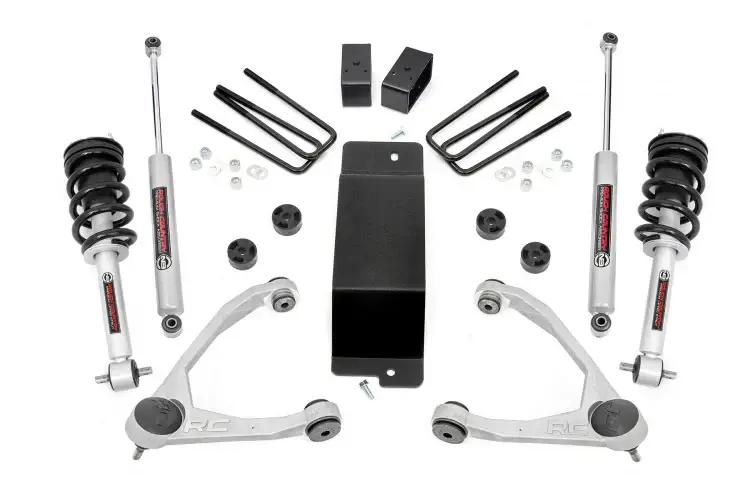

OPTIONAL N3 LOADED STRUTS



  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Nitrogen-charged
  • Engineered for lifted applications
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty





OPTIONAL V2 MONOTUBE SHOCKS



  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

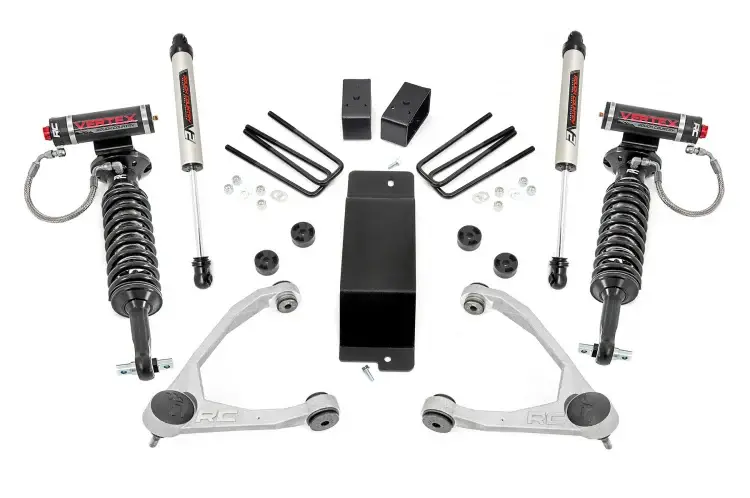

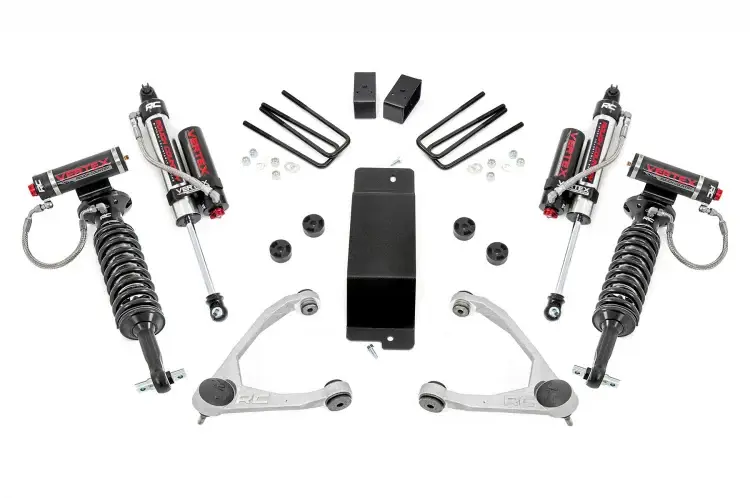

OPTIONAL VERTEX COILOVERS



  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty



NOTES - IMPORTANT

  • This kit fits models with both cast steel or aluminum factory control arms.
  • Does NOT fit models with factory stamped steel control arms.
  • Requires cutting and grinding.
  • New lift block replaces the factory equipped block.
  • If truck is equipped with a mass damper on the front differential, the damper must be removed.
  • Does NOT fit AWD models.
  • Does NOT fit 2007 "Classic / old body style" models.
  • Does NOT fit GMC Denali models with Magnetic Ride Control.
  • Retain your factory wheels with our 0.25" wheel spacers available here! SKU: 1065

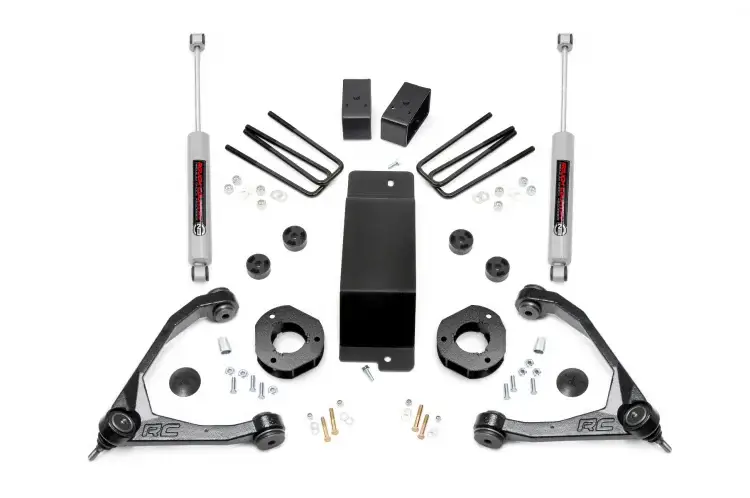

FRONT
  • Strut spacers
  • Forged upper control arms
  • Upper POM ball joints
  • Differential drop spacers
  • Differential skid plate
  • Hardware
REAR
  • 3in fabricated lift blocks
  • U-bolts
  • Hardware
SHOCKS
  • (2) Rear Premium N3 Shocks
Est. Install Time 5-6 hours
2007-2016 4WD Chevy Silverado 1500
2007-2016 4WD GMC Sierra 1500
285/55R20 20x9 6x5.5 +0 -
285/55R20 20x9 6x5.5 +1 -
285/55R20 20x9 6x5.5 +18 -
285/55R20 20x9 6x5.5 +20 -
285/55R20 Factory 20 6x5.5 - -
285/65R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +1 -
285/65R18 18x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +20 -
285/65R18 Factory 18 6x5.5 - -
285/70R17 17x9 6x5.5 +0 -
285/70R17 17x9 6x5.5 +1 -
285/70R17 17x9 6x5.5 +12 -
285/70R17 17x9 6x5.5 +18 -
285/70R17 17x9 6x5.5 +20 -
285/70R17 Factory 17 6x5.5 - -
295/55R20 20x9 6x5.5 +18 -
295/55R20 20x9 6x5.5 +20 -
305/60R18 18x9 6x5.5 +18 -
305/60R18 18x9 6x5.5 +20 -
