ROUGH COUNTRY 4.5 INCH LIFT KIT FORD SUPER DUTY 4WD (2008-2010)
RC-478.20
Pricing:
$849.95
Description
This suspension features luxury ride coil springs matching OE coils rates that are specifically designed for diesel motors. A heavy duty track bar relocation bracket properly centers the axle and matches the steering angles created by the supplied drop pitman arm while the radius arm drop brackets maintain the Super Duty's O.E. caster angles. A steering stabilizer relocation bracket maintains proper steering control but a RC problem solver single unit is recommended with larger tires and a RC dual stabilizer is required when running 37in tires.
FEATURES
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
- Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

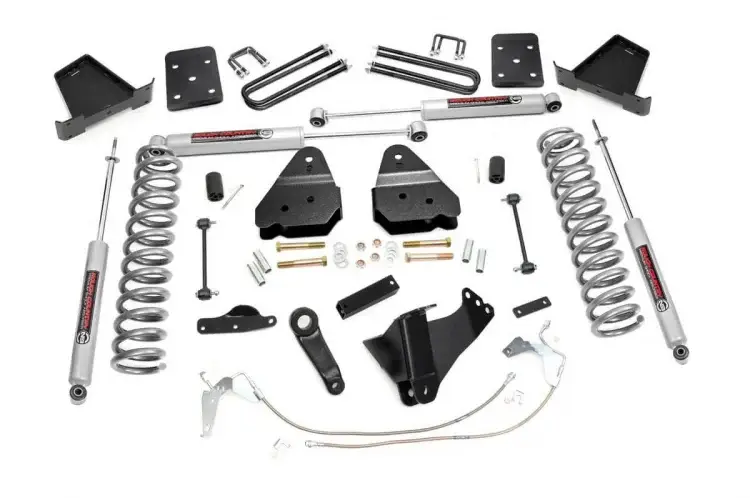

OPTIONAL PREMIUM N3 SHOCKS
- 10-Stage Variable Valving
- High Pressure Nitrogen Charged
- 35mm Piston
- Chromed Hardened 18mm Piston Rod
- 36kN Tensile Strength
- Spring Loaded Piston Rod Seal
- Metallic Silver Paint
- Silver powder coat finish
- 3-year Manufacturer's Warranty

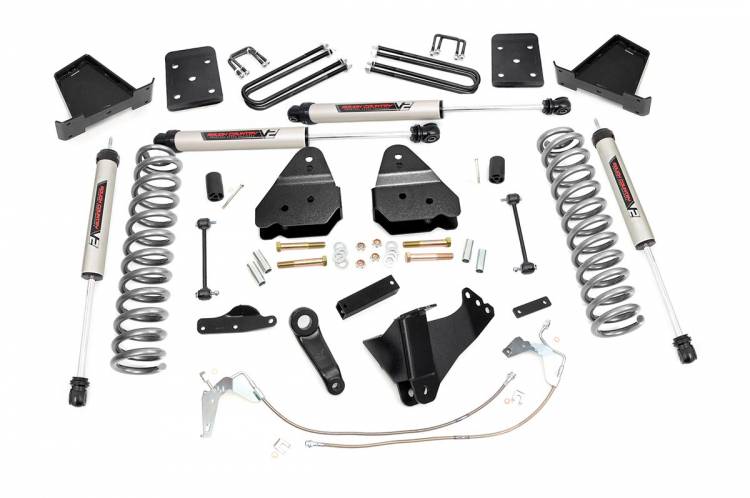

OPTIONAL V2 MONOTUBE SHOCKS
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty

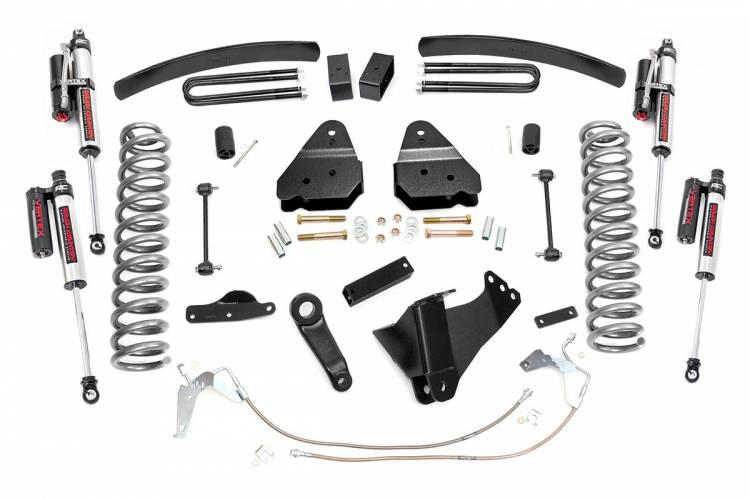

OPTIONAL VERTEX SHOCKS
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
NOTES - IMPORTANT
- Does NOT fit V-8 gas engine models.
- Does NOT fit dually models.
- V-10 gas engine models will require exhaust modification to clear the front driveshaft.
- If vehicle is equipped with rear overload leafs, they will need to be removed.
FRONT
- Lifted coil springs
- Radius arm drop brackets
- Extended sway-bar links
- Track bar drop bracket
- Pitman arm
- Stainless steel braided brake lines
- Bumpstop spacers
- Hardware
REAR
- Fabricated anti-wrap lift blocks
- Carrier bearing drop bracket
- U-bolts
- Hardware
SHOCKS
- (4) Premium N3 series
| Est. Install Time | 6-8 hours |
|---|
| 2008-2010 | 4WD | Ford | F-250 Super Duty |
| 2008-2010 | 4WD | Ford | F-350 Super Duty |
| 35x12.50R17 | 17x9 | 8x170 | -12 | - |
| 35x12.50R18 | 18x9 | 8x170 | -12 | - |
| 35x12.50R20 | 20x9 | 8x170 | -12 | - |
