ROUGH COUNTRY 8 INCH LIFT KIT FORD SUPER DUTY 4WD (05-07)

RC-591.20
Pricing: $1,549.95

Customize Your Item

- Shock Boot Selection -
 * required
- Shock Series -
 * required
Qty:
Free Shipping

Description

Compliment your 05-07 Ford F-250/350's aggressive, good looks with Rough Country's 4-Link Suspension Lift System. Rough Country's 8-inch Lift Kit was engineered to retain the F-250/350's impressive factory specs while bumping up performance and durability where it's needed most. The result is an aggressive, lifted beast with a mean profile and balanced on and off-road ride quality.

When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's 4-Link Suspension Lift System features a set of ultra-durable radius arm drop brackets, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle.

This all-inclusive kit also features an adjustable lower control arms at the axle to allow caster adjustment as well as a track bar relocation bracket and a drop pitman arm. A full set of N3 Shocks provide a truly balanced ride quality for on and off-road use - prefect for daily drivers. This kit also ships with a set of durable, lifted coil springs and brake line relocation brackets.

This innovative kit design features a 100% bolt-on installation process that is lightning fast compared to other kits this size. Save time and money with no need for cutting, drilling, or other complicated procedures. Rough Country's Rough Country's 4-Link Suspension Lift System is backed by our Lifetime Replacement Warranty.

FEATURES

    • Easy bolt-on installation
    • Increased ground clearance
    • Levels the front with the rear of the vehicle
    • Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
    • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
    • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
    • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.

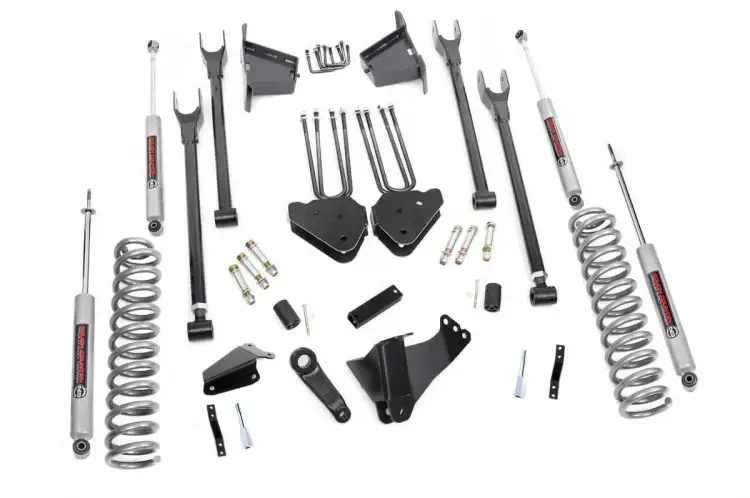

OPTIONAL PREMIUM N3 SHOCKS



  • 10-Stage Variable Valving
  • High Pressure Nitrogen Charged
  • 35mm Piston
  • Chromed Hardened 18mm Piston Rod
  • 36kN Tensile Strength
  • Spring Loaded Piston Rod Seal
  • Metallic Silver Paint
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

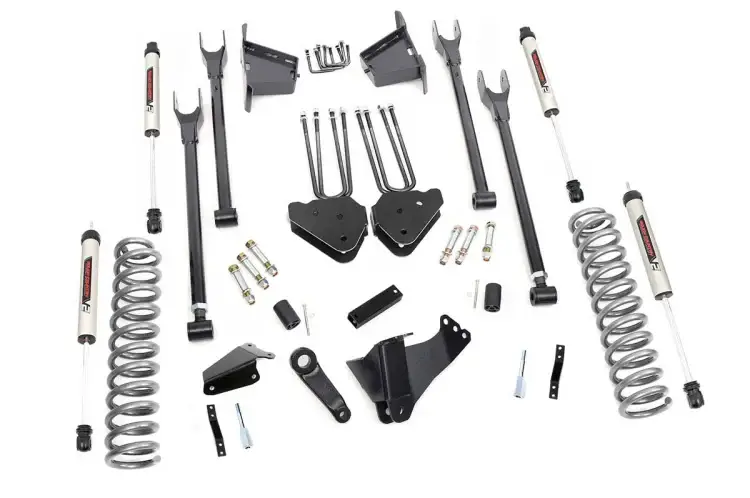

OPTIONAL V2 MONOTUBE SHOCKS



  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

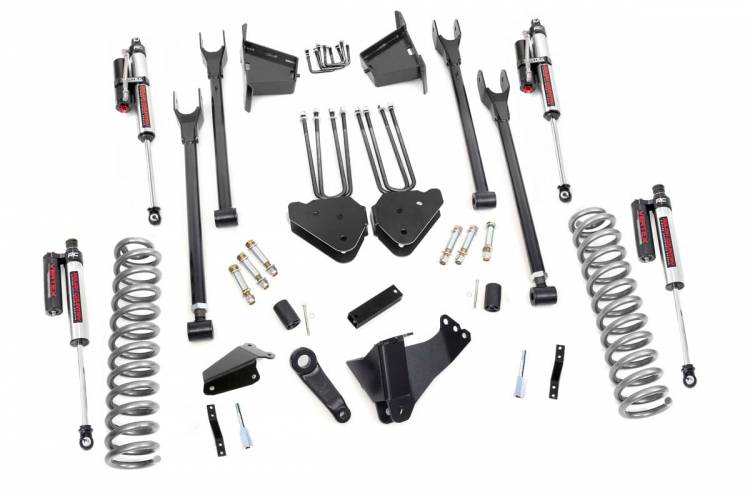

OPTIONAL VERTEX SHOCKS



  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty



NOTES - IMPORTANT

  • Does NOT fit gas engine models.
  • Does NOT fit dually models.
FRONT
  • Lifted coil springs
  • Fixed upper control arms
  • Adjustable lower control arms
  • Radius arm drop brackets
  • Sway-bar link extensions
  • Track bar drop bracket
  • Stabilizer relocation brackets
  • Pitman arm
  • Brake line brackets
  • Bumpstop spacers
  • Hardware
REAR
  • 8" fabricated anti-wrap lift blocks
  • Carrier bearing drop bracket
  • U-bolts
  • Hardware
SHOCKS
  • (4) Premium N3 series
Est. Install Time 8 - 10 hours
2005-2007 4WD Ford F-250 Super Duty
2005-2007 4WD Ford F-350 Super Duty
37x13.50R17 17x9 8x170 -12 -
37x13.50R18 18x9 8x170 -12 -
37x13.50R20 20x9 8x170 -12 -
