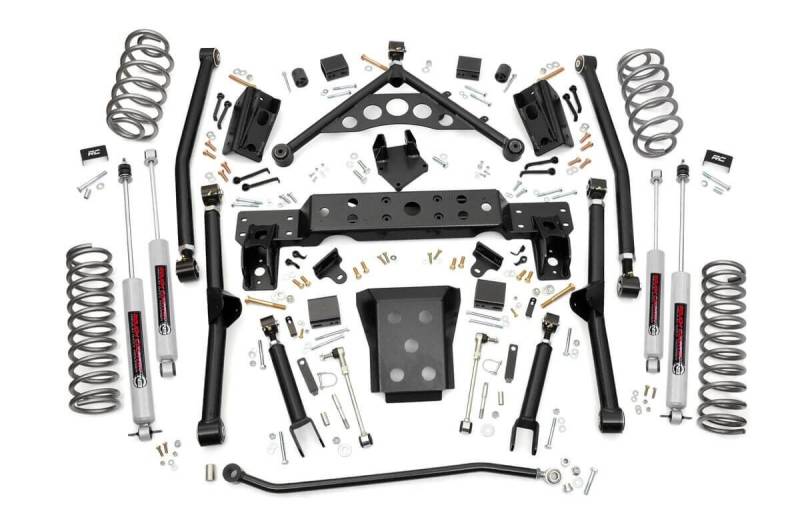

The long awaited WJ 4-inch Longarm Kit is a comprehensive package including everything needed for a great suspension lift while maintaining the vehicle's crucial center of gravity. Upgrade your WJ and gain aggressive looks, extreme flex, and enough ride height to run up to 31-inch tires. The kit includes adjustable high-clearance X-Flex upper and lower control arms with Clevite bushings, featuringX-Flex joints. The kit also includes front and rear coil springs, a front adjustable track bar with drop bracket, 1/4-inch thick steel crossmember, skid plate and sway bar disconnects. Outfitted with Rough Country's N3 shocks, this Longarm Lift Kit is a total solution comprised of top-notch components designed for the avid off-roader who wants the most out of their WJ.
This top of the line kit focuses on improving off-road handling and articulation while preventing binding and rear steer. This lift kit features high-clearance components with a front 4-link and rear y-link control arm design. This promotes extreme flex while keeping pinion angles optimized. Utilizing adjustable components, this kit can also accommodate future modifications.
FEATURES
- Aggressive appearance
- Increased ground clearance
- HD 0.25" thick crossmember
- Lower control arms feature high clearance design
- Extreme travel long arms keep optimum alignment and give optimum articulation.
- X-Flex control arm features:
- Clevite brand OEM style rubber bushings.
- Flex joints feature a massive 2.5" diameter body and 1.25" thread.
- Fully greasable.
- Upper joints pivot up to 20 degrees.
- Lower joints pivot up to 35 degrees.
NOTES - IMPORTANT
- Does NOT fit V8 models.
- Does NOT fit AWD models.
- Models equipped with a CV style front driveshaft may result in driveshaft vibration. If this occurs, replacing the driveshaft, axle yoke and / or transfer case yoke will need to be performed to rid the vehicle of driveline vibration.
FRONT
- Lifted coil springs
- Adjustable upper control arms
- Adjustable lower control arms
- Crossmember
- Transfer case skid plate
- Adjustable track bar
- Track bar bracket
- Sway-bar quick disconnects
- Bumpstop brackets
- Brake line brackets
- Hardware
REAR
- Lifted coil springs
- Adjustable y-link upper control arm
- Adjustable lower control arms
- Long arm frame brackets
- Long arm axle mount
- Sway-bar brackets
- Lower shock brackets
- Hardware
SHOCKS
SKU |
90820 |
Est. Install Time |
8-9 hours |
1999-2004 |
4WD |
Jeep |
Grand Cherokee |
265/75R16 |
Factory 16 |
5x5.0 |
- |
- |
265/70R17 |
Factory 17 |
5x5.0 |
- |
- |
265/65R18 |
Factory 18 |
5x5.0 |
- |
- |
