ROCK HARD 4X4™ OIL PAN / TRANSMISSION SKID PLATE - SHORT ARM/FACTORY SUSPENSION FOR JEEP WRANGLER JK 2/4DR 2007 - 2018

Rock Hard 4x4 is very proud to offer the Heaviest Duty Oil Pan and Transmission Skid Plate for the Jeep Wrangler JK 2/4DR 2007 - 2016.

Hardcore rock crawlers and light duty fire road explorers alike need to add the Rock Hard 4x4 skid plate system to their build list. Protect your extremely vulnerable engine oil pan from trail debris and obstacles with our 3/16" thick plate steel skid plate. Your Transmission is equally exposed and one good knock on it renders your Wrangler completely disabled. Thanks to our unique design we are also the only skid plate system to fully protect your Dual Catalytic Convertor system on 2007 - 2011 3.8L engines!

Total Weight: 57 lbs.

Our 3/16" thick skid plate is made from a solid sheet of steel then bent, formed, and hand welded into it's highly protective shape. Designed to fit both the 2007-2011 3.8L and 2012-2016 3.6L engines plus transmission and dual cat system.

Unique Design
Proven by the most hardcore Jeep JK drivers on trails like the Rubicon, Moab, Rausch Creek and more, our skid plate system's design is the key to it's popularity.

With creature comforts like laser cut access door to your oil filter to RH4x4 exclusive "rock dome" bolt head protectors for the supplied mounting hardware - our skid system is undoubtedly the industry's premium package.

Our system is cut and formed from a single sheet making it smooth and seamless. This gives you a true skid plate without rock catching and high centering flaws found in low-budget alternatives. We do more than just protect your oil pan, transmission, and dual catalytic converter system from straight on impact though - we have flared the sides of our skid plate upwards for side impact protection that also helps glide you off the obstacle rather than high center.

Mounting
RH4x4 was the first to use laser cut and precision bent drop brackets that use your frame, not motor mount, as front support locations. This means our skid transfers zero engine and transmission vibration thought your chassis. This allows your motor and transmission to continue to flex in their mounts naturally without bracing them to your frame rails - completely negating the cushion motor and transmission mounts are designed to provide. This makes for a smoother and quieter ride like factory without the creaks, ringing, vibrating, and harsh performance of inferior systems.

The rear of our skid plate mounts to your transmission cross member. Included in our RH-6000 and RH-6000-LA hardware kit are exclusive and in-house produced "rock dome" bolt head protectors. These domes keep your bolt heads safe and accessible and versus damaged and sheared off.

NOTE: Aftermarket cross members may require customer supplied bolts. The pattern is correct however some manufacturers are using different thread patterns.

With any other major vehicle upgrade does come the peace of mind of a professional installation. We've selected installers across the country that we trust to install our systems to the standards we demand. For a complete list of RH4x4 resellers and installers, please click this link: www.rockhard4x4.com/dealers.

Strength
Our skid plate system is the industry standard because of the confidence it instills in each and every customer. Each skid is laser cut from 3/16" thick steel coated in our weather and debris resistant powder coat finish. Strength is proven on virtually all Jeep enthusiast forums with glowing reviews. Since 2007 our skid plate system has been the undisputed leader in undercarriage protection.

Components
RH4x4 skid plates are very recognizable for two major reasons: beefy unmatched strength and laser precision fitment. What makes up a RH4x4 skid plate is what makes it so strong.

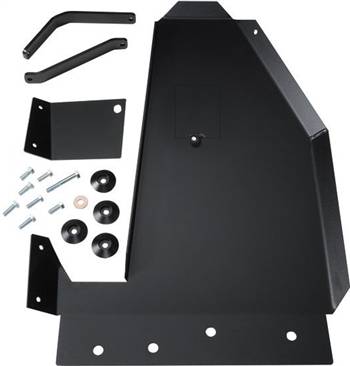

What comes in every kit:
Oil Pan/Trans/Dual Cat Skid
Support Brackets
Rock Dome Bolt Head Protectors
Hardware
Installation Instructions

Three Reasons Why:
Protects Oil Pan, Transmission, and Dual Cats
3/16" thick plate steel
Unmatched quality and fitment
