TeraFlex LJ: Pro LCG 4-Link Long Control Arm & Bracket Kit - Rear Upper Adjust (3-5” Lift)

Upgrade your LJ Wrangler Unlimited rear upper short control arm suspension to a Pro LCG Triangulated 4-Link Long Arm Suspension System with this Rear Upper Pro LCG Triangulated 4-Link Long Control Arm & Bracket Kit. Provides complete alignment adjustability for maximum performance on LJ Wrangler Unlimited models with 3-5” lifts.

On higher lifts, LCG Long Control Arms, Frame Brackets, and Rear Axle Truss converts the stock 5-link rear suspension to a triangulated 4-link suspension for increased flex while eliminating interference w/ other components. Can be added to an existing suspension lift.

These CAD-designed TeraFlex TJ/LJ: LCG Long Arm Frame Brackets and Rear Axle Truss are engineered for maximum strength. The 1/4”-thick steel brackets are CNC laser cut and precision bent for accurate fitment. Brackets locate using the factory belly pan skid plate bolt holes then stitch welded. These are the same components found in our high-end Pro LCG and/or Enduro LCG Long Arm Suspension Systems.

Requires Lower LCG Long Control Arm & Bracket Kit. Combine this kit with the Front Upper Pro LCG Long Control Arm & Bracket Kit to step up to our full Pro LCG Long Arm Suspension System.

Fits:

• LJ Wrangler Unlimited (LWB)
• 3-5” Lift

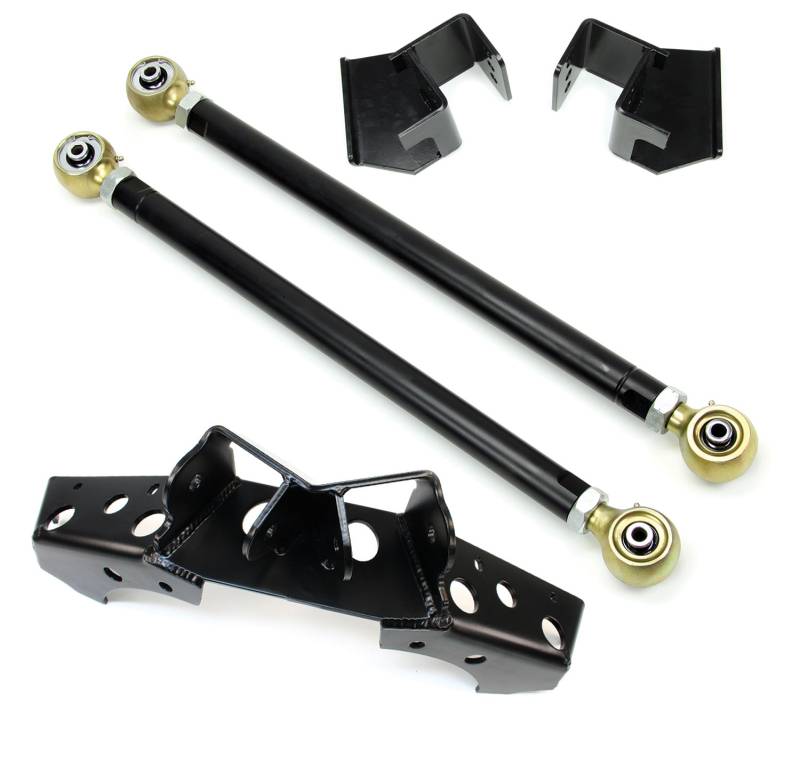

Includes:

Pro LCG 4-Link Long Control Arm Kit - Rear Upper Adjustable (# 1447707):
• Rear Upper (# 1649880) - 2

Pro LCG Long Arm Frame Brackets:
• Driver Rear Upper (# 97881)
• Passenger Rear Upper (# 97882)
• All necessary hardware

Pro LCG Triangulated 4-Link Long Arm Axle Truss - Rear Upper (# 1944044)
• All necessary hardware

Control Arm Specs:

LJ: Pro LCG 4-Link Long Control Arm & Bracket Kit - Rear Upper Adjustable (# 1444880)

• Tube Diameter & Wall: 1.75” x 0.25”
• Factory Length = 13-1/4”
• Min. Length = 31-9/16”
• Max. Length = 36-3/16”
• Both Ends = 9/16” (14mm) Bolt

Features & Benefits:

• HD 1.25” x 0.25” wall DOM (Drawn Over Mandrel) tube provides maximum strength for front upper Pro LCG Long Control Arms
• HD 1.75” x 0.25” wall DOM tube provides maximum strength for lower LCG Long Control Arms and rear upper Pro LCG Triangulated 4-Link Control Arms
• Adjustable LCG Long Control Arms optimize caster angle and tune anti-squat geometry for proper suspension alignment
• Full range of movement will not restrict articulation or flex off-road
• Zero maintenance forged threaded joints for smooth quiet flex
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Premium black e-dipped coating provides superior durability and corrosion resistance on tube and forged rod end housing
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• LCG Long Arm Frame Brackets reposition frame-end control arm mounting points to restore near factory orientation, which reduces bushing stress during droop and shock load transferred through control arms
• Pro LCG Triangulated 4-Link Frame Brackets and Rear Axle Truss converts the stock 5-link rear suspension to a triangulated 4-link suspension for increased flex while eliminating interference w/ other components
• LCG Long Arm Frame Brackets and Rear Axle Truss are constructed from CNC laser cut and precision bent 1/4” steel
• LCG Long Arm Frame Brackets locate using the factory belly pan skid plate bolt holes then stitch welded
• Same components found in our high-end Pro LCG and/or Enduro LCG Long Arm Suspension Systems
• TeraFlex Lifetime Warranty against defects

Note(s):

• Alignment required.
• Requires cutting and welding.
• Cutting/removal of factory control arm bracketry is required.
• LCG Long Control Arms must be used w/ LCG Long Arm Brackets – INCLUDED.
• Front Upper Pro LCG and Rear Upper Pro LCG Triangulated 4-Link Control Arm & Bracket Kits require Lower LCG Long Control Arm & Bracket Kit.

Install Time: 4 hours

Configurations:

Long Control Arm & Bracket Kits - Adjustable:

• TJ: LCG - Lower (# 1447700)
• LJ: LCG - Lower (# 1447780)
• TJ/LJ: Pro LCG - Front Upper (# 1443470)
• TJ: Pro LCG Triangulated 4-Link - Rear Upper (# 1444870)
• LJ: Pro LCG Triangulated 4-Link - Rear Upper (# 1444880)

Long Control Arms - Adjustable:

• TJ/LJ: LCG - Front Lower (# 1447702) - pair
• TJ/LJ: LCG - Front Lower (# 1978226) - each

• TJ: LCG - Rear Lower (# 1447702) - pair
• TJ: LCG - Rear Lower (# 1978226) - each

• LJ: LCG - Rear Lower (# 1447704) - pair
• LJ: LCG - Driver Rear Lower (# 1644781)
• LJ: LCG - Passenger Rear Lower (# 1644782)

• TJ/LJ: Pro LCG - Front Upper (# 1613801) - pair
• TJ/LJ: Pro LCG - Front Upper (# 1649839) - each

• TJ: Pro LCG Triangulated 4-Link - Rear Upper (# 1447712) - pair
• TJ: Pro LCG Triangulated 4-Link - Rear Upper (# 14477121) - each

• LJ: Pro LCG Triangulated 4-Link - Rear Upper (# 1447707) - pair
• LJ: Pro LCG Triangulated 4-Link - Rear Upper (# 1649880) - each

TJ/LJ: Long Arm Brackets:

• LCG - Frame - Lower (# 1447701) - pair
• Pro LCG - Frame - Driver Front Upper (# 9791)
• Pro LCG - Frame - Passenger Front Upper (# 9792)
• Pro LCG Triangulated 4-Link - Frame - Driver Rear Upper (# 97881)
• Pro LCG Triangulated 4-Link - Frame - Passenger Rear Upper (# 97882)
• Pro LCG Triangulated 4-Link - Axle Truss - Rear Upper (# 1944044)

Control Arm Joints:

• 4-Arm (Short/Long) Lower Joint Rebuild Kit (# 1952600)
• 8-Short Arm Joint Rebuild Kit (# 1952500)
• 8-Long Arm Joint Rebuild Kit (# 1952400)

• Small Joint (# 4116230)
• Small Joint Rebuild Kit (# 1951100)
• Small Rubber Joint (# 600453)

• Large Joint (# 4116260)
• Large Joint Rebuild Kit (# 1951000)
• Large Clevite Bushing (# 4915161)

• Large Joint Field Rebuild Tool Kit (# 1951300)
• Small Joint Field Rebuild Tool Kit (# 1951350)
