TeraFlex TJ/LJ: LCG Long Arm Frame Bracket Kit - Lower (3-5” Lift)

These CAD-designed TeraFlex TJ/LJ: LCG Long Arm Frame Brackets and Rear Axle Truss are engineered for maximum strength. The 1/4”-thick steel brackets are CNC laser cut and precision bent for accurate fitment. Brackets locate using the factory belly pan skid plate bolt holes then stitch welded. These are the same components found in our high-end Pro LCG and/or Enduro LCG Long Arm Suspension Systems.

On higher lifts, LCG Long Control Arms and Brackets reposition the frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the control arms. Can be added to an existing suspension lift.

Must be used with adjustable LCG Long Control Arms to optimize caster angle and tune anti-squat geometry for proper suspension alignment on TJ/LJ Wrangler models with 3-5” lifts.

Fits:

• TJ Wrangler (SWB)
• LJ Wrangler Unlimited (LWB)

• 3-5” Lift

Includes:

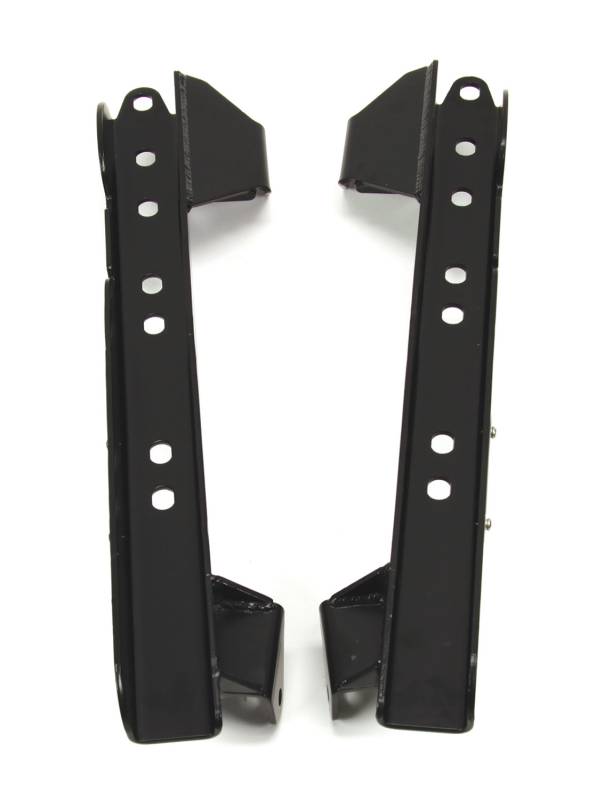

LCG Long Arm Frame Brackets:
• Driver Lower
• Passenger Lower
• All necessary hardware

Features & Benefits:

• LCG Long Arm Frame Brackets reposition frame-end control arm mounting points to restore near factory orientation, which reduces bushing stress during droop and shock load transferred through control arms
• Pro LCG Triangulated 4-Link Frame Brackets and Rear Axle Truss converts the stock 5-link rear suspension to a triangulated 4-link suspension for increased flex while eliminating interference w/ other components
• LCG Long Arm Frame Brackets and Rear Axle Truss are constructed from CNC laser cut and precision bent 1/4” steel
• LCG Long Arm Frame Brackets locate using the factory belly pan skid plate bolt holes then stitch welded
• Same components found in our high-end Pro LCG and/or Enduro LCG Long Arm Suspension Systems
• Premium black e-dipped coating provides superior durability and corrosion resistance
• TeraFlex Lifetime Warranty against defects

Note(s):

• Alignment required.
• Requires cutting and welding.
• Cutting/removal of factory control arm bracketry is required.
• LCG Long Arm Frame Brackets and Rear Axle Truss MUST be used w/ LCG Long Control Arms – NOT INCLUDED.

Install Time: XXX

Configurations:

TJ/LJ: Long Arm Brackets:

• LCG - Frame - Lower (# 1447701) - pair
• Pro LCG - Frame - Driver Front Upper (# 9791)
• Pro LCG - Frame - Passenger Front Upper (# 9792)
• Pro LCG Triangulated 4-Link - Frame - Driver Rear Upper (# 97881)
• Pro LCG Triangulated 4-Link - Frame - Passenger Rear Upper (# 97882)
• Pro LCG Triangulated 4-Link - Axle Truss - Rear Upper (# 1944044)

Long Control Arms - Adjustable:

• TJ/LJ: LCG - Front Lower (# 1447702) - pair
• TJ/LJ: LCG - Front Lower (# 1978226) - each

• TJ: LCG - Rear Lower (# 1447702) - pair
• TJ: LCG - Rear Lower (# 1978226) - each

• LJ: LCG - Rear Lower (# 1447704) - pair
• LJ: LCG - Driver Rear Lower (# 1644781)
• LJ: LCG - Passenger Rear Lower (# 1644782)

• TJ/LJ: Pro LCG - Front Upper (# 1613801) - pair
• TJ/LJ: Pro LCG - Front Upper (# 1649839) - each

• TJ: Pro LCG Triangulated 4-Link - Rear Upper (# 1447712) - pair
• TJ: Pro LCG Triangulated 4-Link - Rear Upper (# 14477121) - each

• LJ: Pro LCG Triangulated 4-Link - Rear Upper (# 1447707) - pair
• LJ: Pro LCG Triangulated 4-Link - Rear Upper (# 1649880) - each

Long Control Arm & Bracket Kits - Adjustable:

• TJ: LCG - Lower (# 1447700)
• LJ: LCG - Lower (# 1447780)
• TJ/LJ: Pro LCG - Front Upper (# 1443470)
• TJ: Pro LCG Triangulated 4-Link - Rear Upper (# 1444870)
• LJ: Pro LCG Triangulated 4-Link - Rear Upper (# 1444880)

Control Arm Joints:

• 4-Arm (Short/Long) Lower Joint Rebuild Kit (# 1952600)
• 8-Short Arm Joint Rebuild Kit (# 1952500)
• 8-Long Arm Joint Rebuild Kit (# 1952400)

• Small Joint (# 4116230)
• Small Joint Rebuild Kit (# 1951100)
• Small Rubber Joint (# 600453)

• Large Joint (# 4116260)
• Large Joint Rebuild Kit (# 1951000)
• Large Clevite Bushing (# 4915161)

• Large Joint Field Rebuild Tool Kit (# 1951300)
• Small Joint Field Rebuild Tool Kit (# 1951350)
