TRAIL-GEAR Suzuki Samurai Spring Over Axle Conversion Kit

• DOT approved extended brake lines
• 9/16" u-bolts
• CNC formed 1/4" spring perches
• Billet driveline spacers with all needed hardware

Samurais are capable and very fun, but they do have low ground clearance, which can often lead to getting stuck, and that is no fun. A spring over axle conversion is the only answer, but finding all the parts and the technical advice to complete your SOA can be cumbersome. We at Trail-Gear have put together a complete and affordable kit that is user friendly and built using the best components on the market.

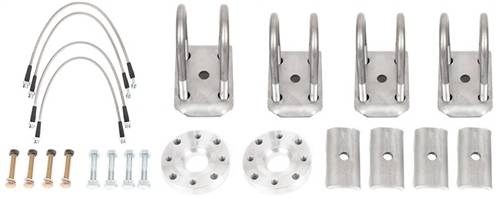

The Trail-Gear Samurai Spring Over Axle Conversion Kit comes with all the needed parts to install your spring over on both the front and rear axles. DOT approved extended brake lines and 9/16" u-bolts are included in the kit along with with laser cut, CNC formed 1/4" spring perches. This is a kit that is simply built to last. No need to take your driveline to a shop to be resized after the conversion is completed because we have also included our world famous billet driveline spacers with all needed hardware. Once the spring over conversion is completed you will be able to install larger tires and a high steer kit.

Note: Replacement shocks may be required.
