TRAIL-GEAR Toyota Full Hydraulic Steering Kit (Choose Ram) -130305,300678,300679
TG-130305-1-KIT
Pricing:
$2,655.30
Description
Toyota Full Hydraulic Steering Kit
Trail-Gear is proud to bring you the first complete Toyota Full Hydraulic Steering Kit. This kit comes with everything needed to build a fully hydraulic steering system. All mounting brackets are included and have been specifically designed for Toyota applications and ease of installation.
This kit takes all the guess work out of setting up a hydraulic steering system. The pump has an all steel housing and puts out 4.5 GPM of flow and 1650 PSI of pressure. All high pressure hoses are steel braided with crimped-on ends. This kit is ideal for use with links and also works with most leaf spring applications. Our kit is the most user friendly kit on the market, we thought of everything so you don''t have to.
If you are using our Rock Assault™ 9 Front Axle Housing, you will need to use a 10" ram for your steering setup.

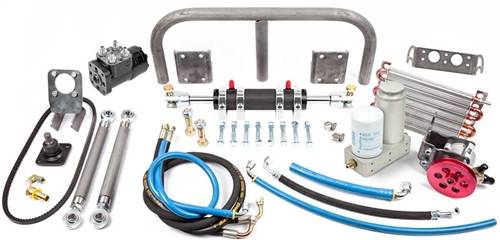

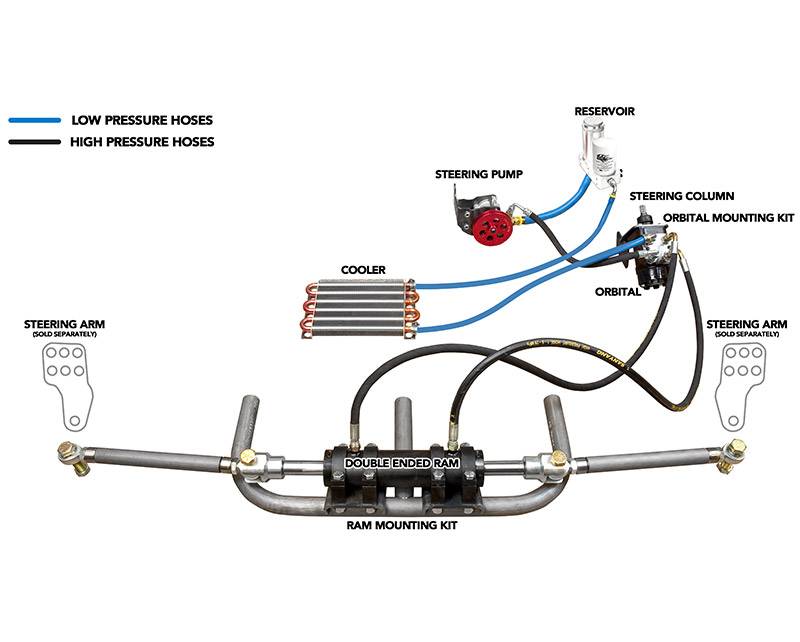

Kit Includes:
6, 8", or 10"" Double Ended Ram and Clevis Kit
Orbital (100ml, 125ml, or 160ml)
Full Hydraulic Steering Pump with Pulley
Tie Rod Kit
Double Ended Ram Mounting Kit
Steering Column
Orbital Mounting Kit
Reservoir with Filter
Reservoir Bracket
Cooler
Power steering belt
Complete hose kit
All necessary hardware
Works with most leaf spring applications, please call our technicians at 559.252.4950 to ensure compatibility before making your purchase.
Note: Never use ATF fluid, or a semi-synthetic blend. This will void the warranty. Royal Purple fully synthetic power steering fluid recommended. Ok to use standard power steering fluid or a full synthetic.
Trail-Gear is proud to bring you the first complete Toyota Full Hydraulic Steering Kit. This kit comes with everything needed to build a fully hydraulic steering system. All mounting brackets are included and have been specifically designed for Toyota applications and ease of installation.
This kit takes all the guess work out of setting up a hydraulic steering system. The pump has an all steel housing and puts out 4.5 GPM of flow and 1650 PSI of pressure. All high pressure hoses are steel braided with crimped-on ends. This kit is ideal for use with links and also works with most leaf spring applications. Our kit is the most user friendly kit on the market, we thought of everything so you don''t have to.
If you are using our Rock Assault™ 9 Front Axle Housing, you will need to use a 10" ram for your steering setup.
Kit Includes:
6, 8", or 10"" Double Ended Ram and Clevis Kit
Orbital (100ml, 125ml, or 160ml)
Full Hydraulic Steering Pump with Pulley
Tie Rod Kit
Double Ended Ram Mounting Kit
Steering Column
Orbital Mounting Kit
Reservoir with Filter
Reservoir Bracket
Cooler
Power steering belt
Complete hose kit
All necessary hardware
Works with most leaf spring applications, please call our technicians at 559.252.4950 to ensure compatibility before making your purchase.
Note: Never use ATF fluid, or a semi-synthetic blend. This will void the warranty. Royal Purple fully synthetic power steering fluid recommended. Ok to use standard power steering fluid or a full synthetic.
Specifications
Primary and secondary rod seal to insure that fluid leakage would never be an issue
Two wiper seal design
Triple Lip Piston Seal for consistent steering with no drift or fluid bypassing the piston
The bushing allows the rod to absorb much higher side loads
4340 chromoly steel piston shaft
Our Double Ended Ram have a 6", 8", or 10" stroke x 2.25" bore x 1.125” rod
The cylinder has a black zinc-plate finish while the rod has 3/4x16 female threads on each end and is made entirely out of 4340 chromoly material
The 6 inch ram and clevis kit has 6 total inches of travel and is perfect for Toyota's and narrowed Dana 44's.
The 8 inch ram and clevis kit has 8 total inches of travel and was made to work with Dana 44's and custom length Dana 60 applications.
The 10 inch ram and clevis kit has 10 total inches of travel and is used for buggies and comp rigs with up to 45 degree steering radius.
1,650 PSI of pressure at 4.5 gallons per minute
Kit Includes:
6, 8", or 10"" Double Ended Ram and Clevis Kit
Orbital (100ml, 125ml, or 160ml)
Full Hydraulic Steering Pump with Pulley
Tie Rod Kit
Double Ended Ram Mounting Kit
Steering Column
Orbital Mounting Kit
Reservoir with Filter
Reservoir Bracket
Cooler
Power steering belt
Complete hose kit
All necessary hardware
Two wiper seal design
Triple Lip Piston Seal for consistent steering with no drift or fluid bypassing the piston
The bushing allows the rod to absorb much higher side loads
4340 chromoly steel piston shaft
Our Double Ended Ram have a 6", 8", or 10" stroke x 2.25" bore x 1.125” rod
The cylinder has a black zinc-plate finish while the rod has 3/4x16 female threads on each end and is made entirely out of 4340 chromoly material
The 6 inch ram and clevis kit has 6 total inches of travel and is perfect for Toyota's and narrowed Dana 44's.
The 8 inch ram and clevis kit has 8 total inches of travel and was made to work with Dana 44's and custom length Dana 60 applications.
The 10 inch ram and clevis kit has 10 total inches of travel and is used for buggies and comp rigs with up to 45 degree steering radius.
1,650 PSI of pressure at 4.5 gallons per minute
Kit Includes:
6, 8", or 10"" Double Ended Ram and Clevis Kit
Orbital (100ml, 125ml, or 160ml)
Full Hydraulic Steering Pump with Pulley
Tie Rod Kit
Double Ended Ram Mounting Kit
Steering Column
Orbital Mounting Kit
Reservoir with Filter
Reservoir Bracket
Cooler
Power steering belt
Complete hose kit
All necessary hardware
Vehicle Type
1979-1995 Toyota Pickup (All Engines)
1985-1995 Toyota 4Runner (All Engines)
1985-1995 Toyota 4Runner (All Engines)
