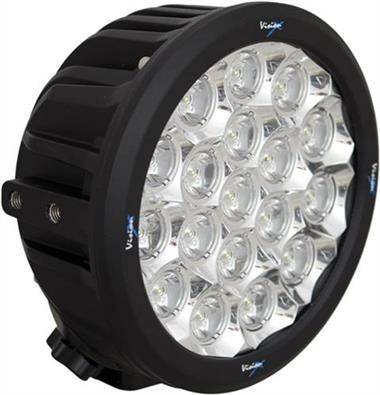

Vision X 6" TRANSPORTER XTREME 18 5W LED 10 Degree NARROW      -CTL-TPX1810

VIS-CTL-TPX1810
Integrated electronic thermal management (ETM) with PWM integrated dimming circuitry. The LED is driven to 90% efficiency and defined optics optimize distance and depth for clean light output. Includes an integrated Deutsch connector with plug-and-play harness. The extruded 6061 aluminum housing keeps weight low and has integrated mounting system. Dimensions of the light bar: 6.73” x 7.18” x 4.56”
Pricing: $599.00
Qty:
Free Shipping

Description

Commercial Truck Lighting Transporter
Series

Why Transporter Series

The Transporter
Series takes the traditional housing style of an HID light and puts in
high-powered LEDs. It was designed with off road and trucking applications in
mind, and features a die-cast housing and IP Rating of 68 to stand up to the
harshest condition. And the Transporter Series features 5 watt LEDs, for an
output of up to 8,874 lumens.

Ultimate LED Lighting System for Truck and Transport

Highest Output LED Lamp


The Transporter features 5 watt LED technology
with 493 lumens per LED for the ultimate light output.


Die-Cast Aluminum Housing

The durable die-cast aluminum housing provides strength and
protection against the worst weather conditions so that you have light even in
the harshest environments.
font-family:"Arial","sans-serif";color:black"">

Proven Mounting System

The Transporter Series uses a single-stud mount system with
knurled aiming knobs that allow for 15° adjustability.

Prime Drive - The Smart LED Lamp

Electronic Thermal Management


ETM monitors the heat output of the LEDs and
makes use of integrated Pulse Width Modulation circuitry in order to maintain
safe operating temperatures in order to prolong the LED life span to its full
50,000 hour potential.


Pulse Width Modulation

The Transporter utilizes integrated Pulse Width Modulation
(PWM) dimming circuitry to manage heat levels. PWM works by flashing the LED at
a frequency faster than the human eye can detect, reducing the time that the
LED is operating while still delivering 100% light output.


Efficient Circuitry

The Transporter is driven to 90% efficiency for less wasted
energy and more light output.


Pure Optics

With 90% optically pure Vision X optics, you can be sure that
you are getting th most distance and most accuracy out of each LED.

"

Features

    • Clear lens
    • 10 degree beam
    • Universal
    • Black aluminum housing
    • Unbreakable polycarbonate lens
    • 50,000 hour lifespan
    • 6.73" round
    • 18 LED's
    • 90 watts
    • 5298 lumens
    • Sold individually

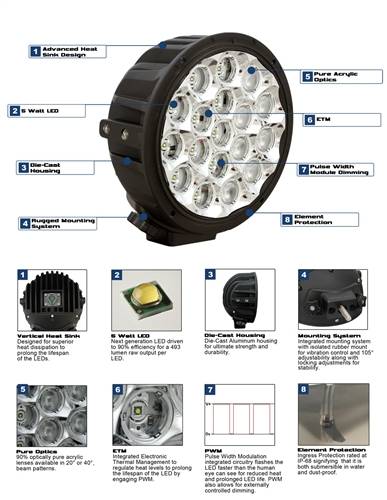

    Key Features

    Integrated Electronic Thermal Management (ETM)
    New Generation LED is Driven to 90% Efficiency
    PWM Integrated Dimming Circuitry
    Patent Pending Integrated Mounting System
  • Manufacturer Notes

    PRODUCT DETAILS

    PART#

    CTL-TPX1810

    PART # (STOCKCODE)

    9111018

    UPC

    8.87E+11

    SPECIFICATIONS

    WARRANTY

    Extended

    RAW LUMENS

    8,874 Lm

    EFFECTIVE LUMENS

    5298.90 Lm

    WATTS

    90

    WEIGHT

    6.17

    LIFESPAN

    50,000 Hours

    IMAGES

    TECHNICAL DETAILS

    DIMENSIONS

    6.73” x 7.18” x 4.56”

    INPUT VOLTAGE

    9-32V DC

    OPTIC EFFICIENCY

    90%

    DRIVEN AT

    90%

    AMP DRAW (12V DC)

    7.50A

    IP RATING

    IP-68

    VIBRATION RATING

    15.6G

    OPERATING TEMPERATURE

    -40 Celsius ~ +80 Celsius

    ADDED FEAUTRES

    • Clear, Red, Blue, and Yellow Protective PC Covers Available

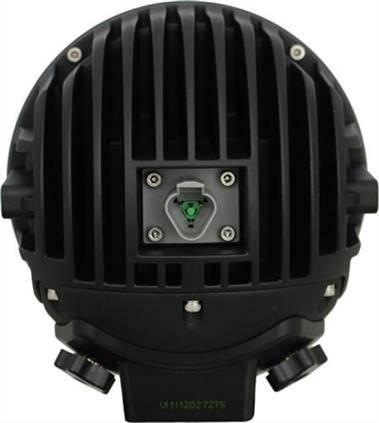

    • Integrated Deutsch Connector with Plug-and-Play Harness

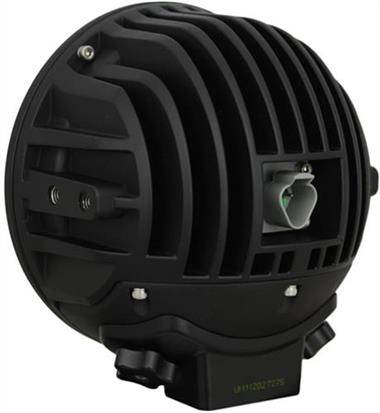

    • Die-Cast Aluminum Housing
    • Polycarbonate Lens
    • Patent Pending

    ADVANCED SPECIFICATIONS

    Packaged Length: 12
    Packaged Width: 12
    Packaged Height: 10
