Why
Xmitter
Bar was the original Vision X LED Bar. The Xmitter has been tested and proven
by the best, including the US Border Patrol and NASA. The Xmitter is the best
LED bar for applications where the most light is needed without all the frills,
such as off-roading, commercial, and recreational use.

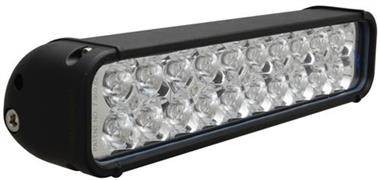

The Original Vision X LED Bar
Powerful Resume
The Xmitter LED Bar has been tested and proven on the dunes,
the trails, and beyond. The Xmitter LED bar technology has been used by
off-road racers, the United States Border Patrol, NASA, and others because it
has been proven as powerful and durable in any application.
Multi Voltage
Electronics
Since its introduction, we have added multi-voltage
elctronics in order to increase lighting output, now taking input voltage of
9-42 volts.

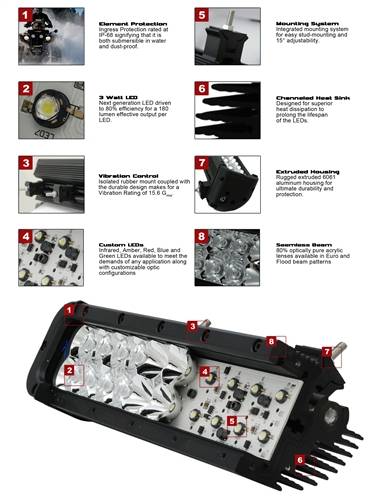

Durable and Patented Design
Extruded 6061 Aluminum
The Xmitter features a 6061 extruded aluminum housing for
ultimate strength and durability.
IP-67 Rated
The Xmitter has achieved an ingress protection rating
of IP-67, signifying that it is dust-proof and water spray resistant.

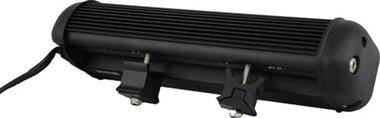

Proven Mounting System
The Xmitter utilizes the Vision X signiture stud mounting
system that allows for 15° of adjustability and helps to control vibration
through the use of isolated rubber in the mount.
Key
PRODUCT DETAILS | |
PART# | XIL-200 |
PART # (STOCKCODE) | 4006300 |
UPC | 8.38E+11 |
SPECIFICATIONS | |
WARRANTY | Extended |
RAW LUMENS | 3,600 Lm |
EFFECTIVE LUMENS | 2,200 Lm |
WATTS | 60 |
WEIGHT | 5 |
MOUNTING DEPTH | 1.20" |
LIFESPAN | 50,000 Hours |
IMAGES | |
TECHNICAL DETAILS | |
DIMENSIONS | 11.8” x 3” x 2.76” |
INPUT VOLTAGE | 9-42V DC |
DRIVEN AT | 80% |
AMP DRAW (12V DC) | 5.00A |
IP RATING | IP-67 |
VIBRATION RATING | 15.6G |
CERTIFICATIONS | CE |
OPERATING TEMPERATURE | -40 Celsius ~ +80 Celsius |
ADDED FEAUTRES |
• Weatherproof Deutsch Connector with Plug-and-Play • Billet Clamp Tube Frame Mounts Available • Extruded 6061 Aluminum Housing • Polycarbonate Lens • Pat. 7,950,821 |
