Why Optimus

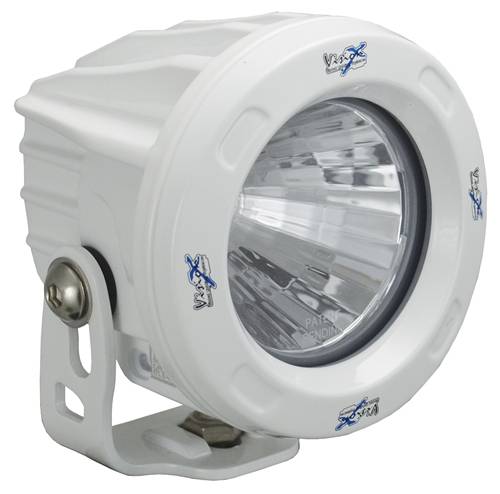

The Optimus Series
are LED Driving Lights, advancing lighting technology to the next level.
Utilizing Vision X Lighting's all new proprietary IRIS Reflector Technology,
the Optimus series provides the ultimate focus for long range lighting by
producing 693 ft. of usable light from a single 3.5"" tall, 10-watt LED.
Compared to a standard 55 watt low beam headlight reach of 88 ft. and a
standard 65 watt high beam reach of 153 ft, the Optimus propels light further
than any single 10-watt LED light fixture in existence. Optimus lights also
feature Vision X Lighting's Prime Drive technology for integrated thermal
management and dimming capabilities.
Compact, Bold Design
Small Doesn't
Mean Weak
The new Optimus Prime doesn't sacrifice light output to
achieve an ultra-compact housing. Actually, the opposite. The Optimus Prime
outperforms traditional Halogen Off Road Lighting solutions in both distance
and output, all while fitting within a housing that doesn't look bulky and in
the way. So put away the huge, awkward looking lights, and get the driving
lights that will amaze you every time you light them up.
Distance

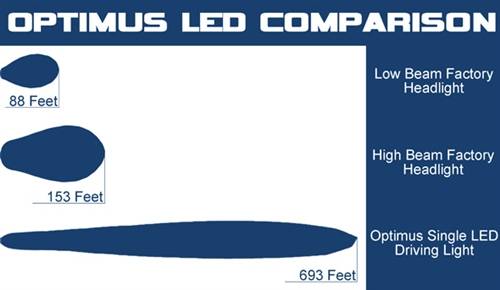

The Single Optimus Prime
throws 1 lux of light 693 feet. For comparison, a motorcycle headlight low beam
measures 1 lux at 88 feet, and high beam 1 lux at 153 feet. The Optimus Prime
is truly ""lighting evolved"".
Prime Drive
The More
Powerful and Long Lasting LED
The Optimus
Prime with Prime Drive drives the LED more efficiently while managing heat levels. This means more light
from the LED and a longer lifespan. This is advanced LED technology in action.
Electronic Thermal Management
ETM monitors the heat output of the LEDs and makes use of
integrated Pulse Width Modulation circuitry in order to maintain safe operating
temperatures in order to prolong the LED life span to its full 50,000 hour
potential.
Pulse Width Modulation
The Optimus Prime utilizes integrated Pulse Width
Modulation (PWM) dimming circuitry to manage heat levels. PWM works by flashing
the LED at a frequency faster than the human eye can detect, reducing the time
that the LED is operating while still delivering 100% light output.
SPECIFICATIONS |
|
WARRANTY |
Extended |
AVAILABLE
HOUSING COLOR |
Black, White, Silver,
Chrome |
MOUNTING
DEPTH |
1.00" |
LED
LIFESPAN |
50,000 |
TECHNICAL
DETAILS |
|
HEIGHT |
3.07" |
DEPTH |
3.80" |
OPTIC
PURITY |
90% |
DRIVEN
AT |
90% |
INPUT
VOLTAGE |
11-32V DC |
IP
RATING |
IP-68 |
VIBRATION
RATING |
15.6G |
OPERATING
TEMPERATURE |
-40 Celsius ~ +80
Celsius |
ADDED
FEAUTRES |
• Weatherproof Deutsch
Connector |
