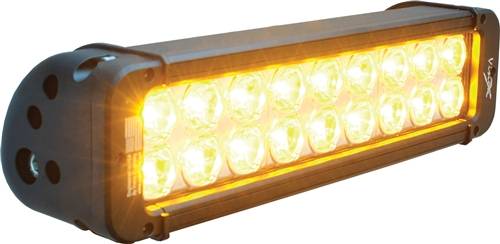

Vision X 11" XMITTER PRIME AMBER LED BAR BLACK 18 5W LED'S 10 NARROW     -XIL-P1810A

(0) Reviews: Write first review
VIS-XIL-P1810A

The Xmitter Prime Bar
achieves the farthest lighting distance in the Vision X lineup. This is due to
the 3-watt LEDs that are placed much closer together on the circuit board than
10-watt LEDs allowing for greater optical control and therefore greatest distance.
The Xmitter Prime also makes use of Prime Drive Technology which manages heat
levels to prolong the life of the LEDs.

"
Pricing: $711.25
Qty:

Description

The Xmitter Prime Bar
achieves the farthest lighting distance in the Vision X lineup. This is due to
the 3-watt LEDs that are placed much closer together on the circuit board than
10-watt LEDs allowing for greater optical control and therefore greatest distance.
The Xmitter Prime also makes use of Prime Drive Technology which manages heat
levels to prolong the life of the LEDs.

"

Features

  • Key

  • Features

    Integrated Electronic Thermal Management (ETM)
    New Generation LED is Driven to 90% Efficiency
    Defined Optics Optimize Distance and Depth
    Advanced Heat Sink Designed to prolong the life
  • of the LEDs

    • System Contents

  • INCLUDED

  • •Xmitter Prime LED

  • Light Bar
  • • Wiring Harness
  • • Installation Instructions
  • • Adjustment Allen Wrench
  • • Vision X Decal

    • Manufacturer Notes

    SPECIFICATIONS

    WARRANTY

    Extended

    AVAILABLE HOUSING COLOR

    Black or White

    MOUNTING DEPTH

    1.50"

    LED LIFESPAN

    50,000

    TECHNICAL DETAILS

    HEIGHT

    2.82"

    DEPTH

    3.75"

    OPTIC PURITY

    90%

    DRIVEN AT

    90%

    INPUT VOLTAGE

    10-32V

    IP RATING

    IP-68

    VIBRATION RATING

    15.6G

    OPERATING TEMPERATURE

    -40 Celsius ~ +80 Celsius

    ADDED FEAUTRES

    • Weatherproof Deutsch Connector with Plug-and-Play Harness
    • Billet Clamp Tube Frame Mounts Available
    • Extruded 6061 Aluminum Housing
    • Polycarbonate lens
