Zone Offroad 4.5" Suspension System 2014-2018 Chevy/GMC Silverado/Sierra 1500 -C27N - C28N

FMVSS No.126 (ESC system test) Compliant - With the popularity of Zone's 4.5" lift kit for the 2007-2013 GM trucks, the engineers at Zone Offroad Products have designed the new 2014-18 kits to retain many of the great features customers have comes to expect with fitment for the new electronic power steering on the 2014-17 trucks.

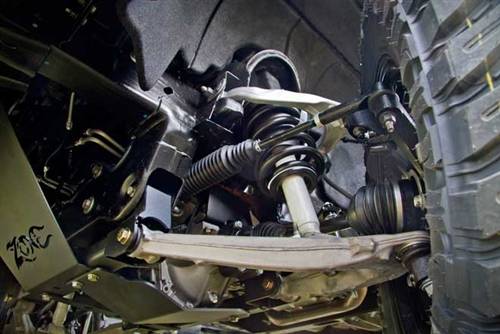

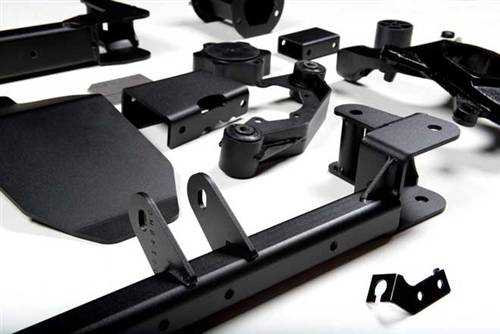

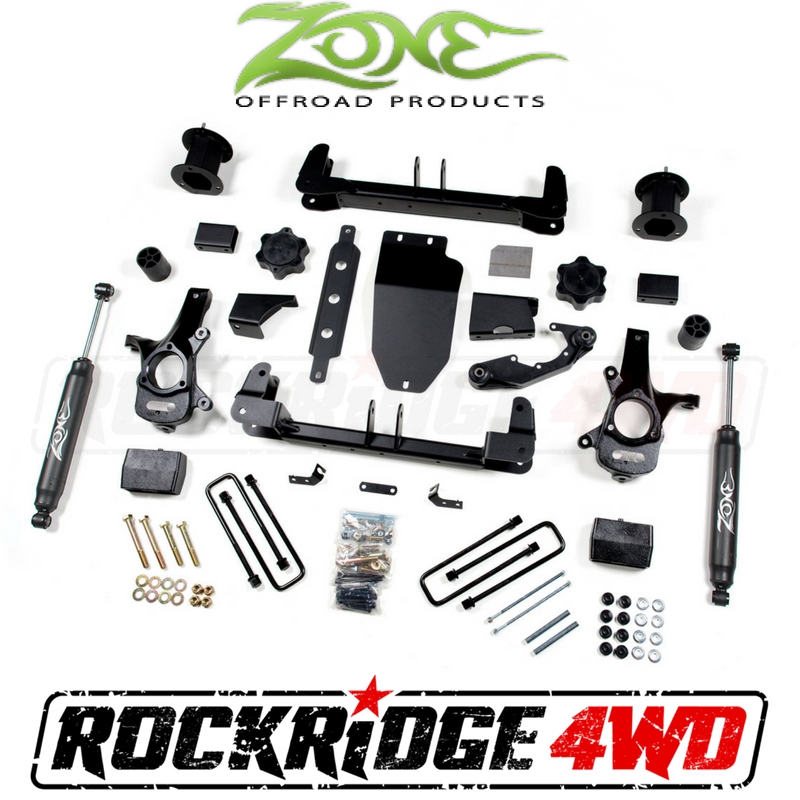

The system includes a pair of fully boxed heavy duty crossmembers and robust ductile iron steering knuckles engineered to work with the redesigned steering. A 3-piece differential relocation system is utilized to correct front pinion angle with the center differential brace tying front and rear crossmembers together for a sturdy differential mount. This coupled with the differential skid plate and crossmember brace create an incredibly strong front subframe designed to correct suspension geometry while increasing ground clearance.

To retain factory ride quality a pair of bolt-on 4.5" strut spacers are used to provide lift. These install easily without the need to disassemble the factory strut. Also included in the kit are a pair of CV spacers, brake line brackets, sway bar relocation, and all the necessary hardware to complete the install.

To lift the rear and level the stance a 4" tapered block is utilized along with longer u-bolts, brake line bracket and your choice of hydro or nitro shocks.

As with all Zone Offroad Products, this 4.5" lift kit for the new 2014-18 Chevy/GMC 1500 trucks is backed by a limited lifetime warranty.

Featured Technology & Benefits
FMVSS No.126 (ESC system test) Compliant
Over 98% Made in the USA - not a cheap import

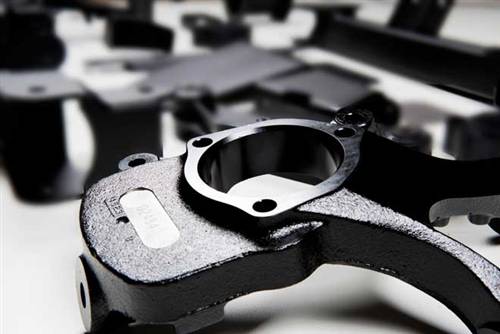

Ductile Iron, CNC machined steering knuckles maintain OE steering and ball joint geometry and allow fitment of 17" wheels
Heavy duty boxed one piece crossmembers that maintain a clean factory look
Differential skid plate and support strut included for added protection when hitting the trails
Multi-point differential mounting system corrects drive line angles for proper geometry
Weld-in control arm pocket plate included
Solid cast iron rear blocks, not fabricated blocks
Works with factory Stabilitrak System
Available with Zone Offroad Hydraulic or Nitro shocks

The NHTSA's Federal Motor Vehicle Safety Standard (FMVSS) No.126 requires all new passenger vehicles to include Electronic Stability Control (ESC) systems that meet certain standards that can be tested through a comprehensive series of evasive maneuvers. Aftermarket products must meet these standards as well.

Zone Offroad Products is leading the industry by independently testing all suspension kits to verify the kits are fully compliant with the stability control system requirements set by Federal Motor Vehicle Safety Standard (FMVSS) No. 126.

Important Notes!
*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit (#C27). Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit (#C28). Be sure to verify which factory control arms your truck has before ordering your kit by referecing our help image below (click image for larger view):

All wheel drive models require drive line modification
Frame bracket modification and minor welding required
To reduce trimming required with 20" wheels, 5.75" backspacing recommended
Will not fit models equipped with magnetic ride control.
Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference

Quick Specs

Front Lift Height: 4.5
Front Lift Method: Spacer
Rear Lift Height: 4?
Rear Lift Method: Block Kit
Install Time Hrs: 8
Difficulty Level 1-5: 4
Wheel Size: 17x9
Back Spacing: 5?
Max Tire Size: 33 x 12.50
Wheel Size: 18x9
Back Spacing: 5?
Max Tire Size: 33 x 12.50
Wheel Size: 20x9
Back Spacing: 5.75?
Max Tire Size: 35x12.50 (tight)
