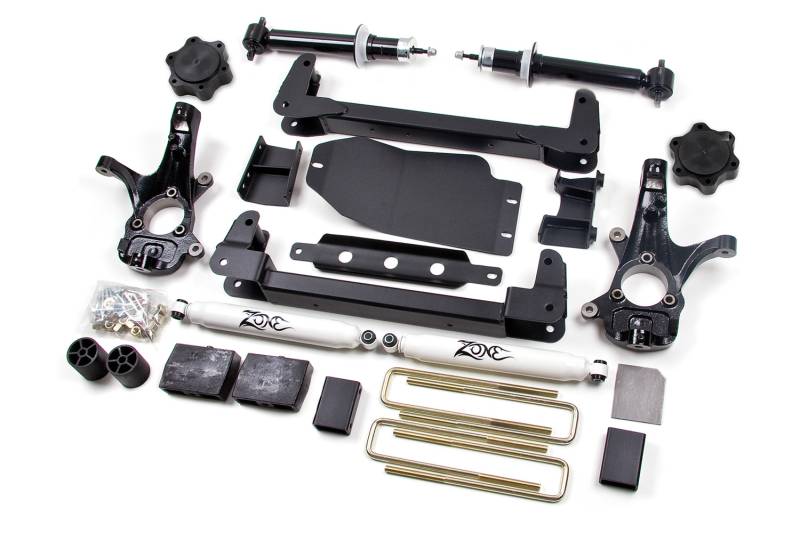

Zone Offroad 4.5" IFS Suspension Lift Kit System for 07-13 Chevy / GMC 1/2 Ton Pickup Silverado / Sierra 4WD - C8

This 4.5" suspension lift kit system for your 2007-13 Chevrolet 1500 Silverado & GMC 1500 Sierra 4WD pickups.

This 4.5" system will give you an offroad worthy truck that you can still use as a daily driver. Not only is this system over 90% Made in the USA, this system has many advantages over the competition including new coil over struts instead of strut spacers.
By replacing the struts, Zone Offroad enhances the valving to control the unsprung weight of a 33" tire for a drastic increase in ride and handling performance over simple strut spacers. The crossmembers are made from 1/4" thick steel and maintain a clean appearance. To gain clearance for the relocated differential, like most kits on the market, the driver's side rear crossmember must be cut, but unlike some kits on the market, Zone Offroad includes a weld-in plate to maintain the control arm pocket's structural integrity. In addition to a heavy duty differential skid plate that locks the two crossmembers together an additional strut bar is added on the passenger side to add rigidity and additional protection.
The CNC machined ductile iron steering knuckles ensure proper steering and control arm geometry and do not limit you to 18" or larger wheels or require you to cut off the upper control arm droop limiter like the competition. By retaining the factory droop limit, you don't need to worry about excessive ball joint or steering component wear and be certain the system works with the trucks Stabilitrack System.
The differences don't end there, Zone Offroad only uses solid cast rear lift blocks as opposed to fabricated blocks. If you need additional rear height, Zone offers a add-a-leaf to fight spring wrap and yield additional height.
Combine all of these factors and you can lock in the Zone 4.5" system as the best value out there! Your search has ended.

Featured Technology & Benefits
Over 90% Made in the USA - not a cheap import
Ductile Iron, CNC machined steering knuckles maintain OE steering and ball joint geometry and allow fitment of 17" wheels
Includes coil over struts with enhanced valving to control 33" tires
Heavy duty boxed one piece crossmembers that maintain a clean look
Differential skid plate and support strut included for off-road protection
Multi-point differential mounting system corrects drive line angles
Weld-in control arm pocket plate included
Rear solid cast iron blocks vs. fabricated blocks
Works with factory Stabilitrak System
Available with Zone Offroad Hydraulic or Nitro shocks

Important Notes!
All wheel drive models require front driveline modification.
Will not fit 2007 Classic models.
Strut compressor required for installation.
Frame bracket modification and minor welding required.
To reduce trimming required 20" wheels with 5 1/2 to 5 3/4" backspacing recommended.
Add-A-Leaf C6159 recommended for a tail high stance.
Will not fit 2009-12 two-mode hybrid models with electronic power steering (eps).

This product fits the following applications:

07-13 Chevy 1500 Pickup 4WD
07-13 GMC 1500 Pickup 4WD

Quick Specs

Front Lift Height: 4 1/2?
Front Lift Method: IFS System
Rear Lift Height: 4?
Rear Lift Method: Block Kit
Install Time Hrs: 8
Difficulty Level 1-5: 4
Wheel Size: 17x9
Back Spacing: 5?
Max Tire Size: 33 x 12.50 x 17
Wheel Size: 18x9
Back Spacing: 5?
Max Tire Size: 33 x 12.50 x 18
Wheel Size: 20x9
Back Spacing: 5.75?
Max Tire Size: 33 x 12.50 x 20
