Zone Offroad 5" Suspension Lift Kit System for 10-13 Dodge Ram 2500 / 3500 Pickup 4WD - D16 / D17 / D18

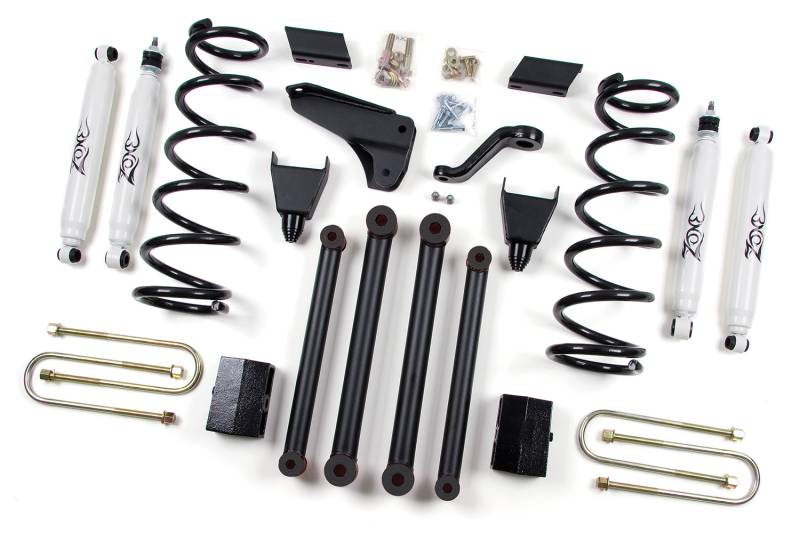

This Zone Offroad 4-link system replaces the weak upper and lower factory control arms with greasable DOM tubular arms. The arms mount in the factory control arm pockets for a completely bolt on easy installation that aligns to factory specs. Zone Offroad has engineered their coil springs for a comfortable ride on both gas and diesel trucks. Custom valved hydraulic shocks are included for a great ride, or choose the black nitrogen gas charges shock for that performance handling feel. To correct the steering geometry and keep your axle centered, the kit includes a dropped pitman arm and 1/4" thick fabricated track bar bracket that you will not be disappointed with! The kit also includes sway bar drop brackets and if you get serious, taller bump stops. The rear is lifted with 3" blocks to give your truck a more level stance and make for a quick installation.

Featured Technology & Benefits
Heavy duty greasable control arms included
New extended length bump stop mounting brackets
Track Bar Relocation to properly center your axle
Pitman Arm included to maintain steering geometry
Completely Bolt on System

Important Notes!
2013 Ram 3/4 Ton: Only works with 4 link equipped front suspension models.
This truck was produced with different rear axles. Be sure to measure the diameter of your rear axle before ordering.
This system will not fit dually applications due to the rear u-bolt size.
2-piece rear driveshaft requires carrier bearing drop kit D5505.
Gas models may sit approximately 1/2" higher than the advertised lift height.
Kit includes a 3" rear block kit. Measure your truck before ordering to determine the stance of your truck with the lift installed.
Powerwagon models came factory with a 2" taller ride height so the net lift gain will be 3" over the factory Powerwagon. Powerwagon models require sway bar link kit D5301.

This product fits the following applications:

10-13 Dodge/Ram Ram 2500 4WD
10-12 Dodge/Ram Ram 3500 4WD

Quick Specs

Front Lift Height: 5?
Front Lift Method: Coil Springs
Rear Lift Height: 3?
Rear Lift Method: Block Kit
Install Time Hrs: 6
Difficulty Level 1-5: 2
Wheel Size: 17 X 9
Back Spacing: 5?
Max Tire Size: 36 X 12.50
