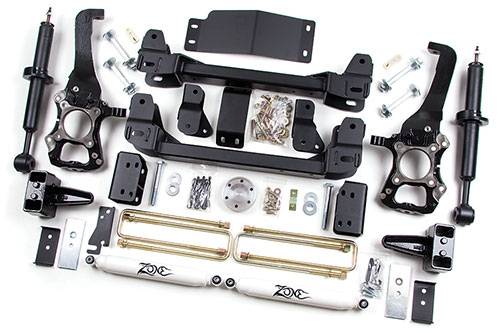

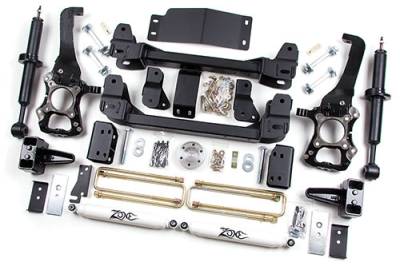

Zone Offroad 6" Suspension Lift Kit System for 09-13 Ford F150 4WD - F10

Choose the Zone Offroad 6" Suspension System to lift your 2009-2013 Ford F150 and clear up to a 37" tire. Competitors will tell you how they maintain the factory ride, but Zone Offroad has stepped up the game by including new coil-over struts custom valved for larger tires, improved ride, and optimal handling.

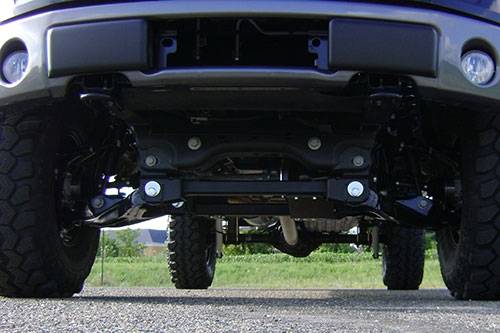

A 3-point differential mounting system drops and rotates the front differential to bring the CV shafts and driveshaft back to factory operating angles. Visually compare the Zone Offroad porterhouse knuckles to the chuck roast of the competition. Salivate over the fully cast, CNC machined, and resonant frequency tested knuckles that correct the tie rod and ball joint geometry with no track width change. Heavy main crossmembers are included with your meal and are locked solid with a differential skid plate. Choose your side of rear shock, and we'll fill in the rest with a 5" dual pin block kit that offsets the axle closer to the center of the wheel well compared to a standard setup.

This kit is all inclusive, so don't look anywhere else, install a Zone Offroad system on your F150 and have no regrets.

The NHTSA's Federal Motor Vehicle Safety Standard (FMVSS) No.126 requires all new passenger vehicles to include Electronic Stability Control (ESC) systems that meet certain standards that can be tested through a comprehensive series of evasive maneuvers. Aftermarket products must meet these standards as well.

Zone Offroad Products is leading the industry by independently testing all suspension kits to verify the kits are fully compliant with the stability control system requirements set by Federal Motor Vehicle Safety Standard (FMVSS) No. 126.

Featured Technology & Benefits
Custom Valved Replacement Coil-over Strut
CNC Machined Steering Knuckles correctly drilled for the application
Heavy 1/4" thick crossmembers
No Track Width Change
Differential Skid Plate Included

Important Notes!
AWD models will require front driveshaft modification
Will not work with 17" wheels
If using 18x9 wheels with 5.5" backspace, fit the wheels before mounting to check for proper tie rod clearance. Wheel manufacturing variances may affect this clearance.
Vehicles equipped with factory powersteps will require E-Brake Relocation Bracket part # F5608.
Models equipped with a 2 piece rear driveshaft may require carrier bearing drop kit part # D5405
Although rare, rear driveshaft extension part # F5601 may be required
Kit includes a 5" rear block kit (#F2619) that typically nets a slight tail high stance. A 4" rear block kit (#F2419) is available in the options if a more level stance is preferred.
Will not fit Raptor models

This product fits the following applications:

09-13 Ford F150 4WD

Quick Specs

Front Lift Height: 6?
Front Lift Method: IFS w/Struts
Rear Lift Height: 5?
Rear Lift Method: Block & U-bolt Kit
Install Time Hrs: 8
Difficulty Level 1-5: 3
Wheel Size: 18x9
Back Spacing: 5?
Max Tire Size: 37 x 12.50
Wheel Size: 18x9
Back Spacing: 4.5?-5?
Max Tire Size: 35 x 13.50
Wheel Size: 20x9
Back Spacing: 5?-5.5?
Max Tire Size: 37x12.50
