Zone Offroad 3" Jeep Cherokee XJ 84-01 Suspension Lift Kit with Rear Leaf Springs By Zone Offroad  - J21N / J22N

ZNJ21N/J22N
Pricing: $559.65
5 1

Customize Your Item

- Sway-Bar and Accessories -
 * required
- Transfer Case Drop -
 * required
- Gas Shock Upgrade -
 * required
- Shock Boot Selection -
 * required
- Axle Type Selection -
 * required
- Accessories -
 * required
- Steering Stabilizer -
 * required
- FOX IFP 2.0 Shock Upgrade -
 * required
Qty:
Free Shipping

Description

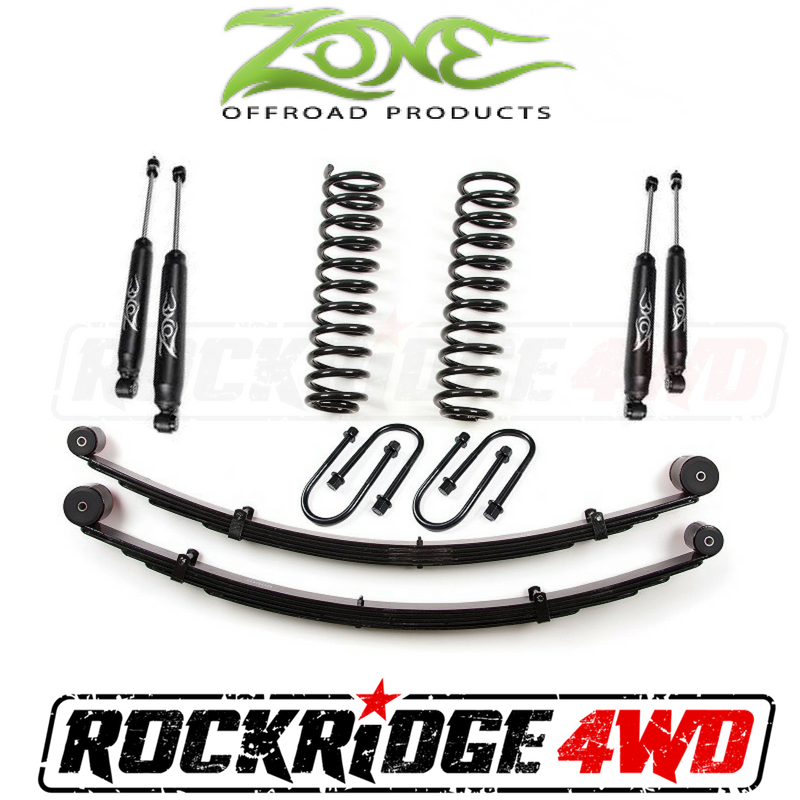

New front coil springs are supplied that are capable of handling anything! Since we design our coil springs for off road use, there is no need for bump stop extensions. Our coils can be smashed to the bottom and will always come back! No, that doesn't mean they are stiff. The key is using the correct size wire and quality material with the correct spring rate to offer the perfect ride and still hold up over time.

The rear is lifted via new Zone Offroad leaf springs. Many hours of development and testing have finally produced a capable spring that we are proud to introduce to our lineup. The new springs are a 5 leaf pack with anti-friction pads and center leaf spacer plates between each leaf. This design greatly decreases leaf pack internal friction. These springs are designed to give 3" of lift and are also set up to give the max amount of compression travel before the shackle is limited by the rear portion of the body. This allows the springs to flatten out as much as possible, which translates to increased wheel travel. These are designed to flex, but can still hold up and handle your load of gear.

Zone hydraulic shocks are included in the kit or choose to upgrade to the gas charged Nitro shocks for added handing control.

Featured Technology & Benefits
Front coil springs designed to give a full 3" of lift while maintaining an O.E. style ride
No bump stops are included because our springs are designed for extreme travel.
Replacement Rear Leaf Springs that will ride great and replace the tired factory XJ springs.
New rear U-bolts are included with high nuts and washers
New NITRO front and rear shocks are included that are valved specifically for your XJ

Important Notes!
The XJ was produced with different possible rear axles. You will have to identify your rear axle before being able to complete an order. The easiest way to tell the difference is to measure the I.D. of your rear u-bolts. The Chrysler rear end uses a 3" I.D. u-bolt and the Dana 35 rear axle requires a 2-3/4" I.D. u-bolt.
Though not always required, optional 1" transfer case drop kit (J5006) recommended when using stock driveline.

This product fits the following applications:

84-01 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
84-01 Jeep Cherokee XJ w/ Dana 35 4WD Gas

Quick Specs

Front Lift Height: 3?
Front Lift Method: Coil Springs
Rear Lift Height: 3?
Rear Lift Method: Leaf Springs
Install Time Hrs: 5
Difficulty Level 1-5: 3
Wheel Size: 15? x 8?
Back Spacing: 3.5?-4?
Max Tire Size: 31? x 10.50?

Features

  • Front coil springs designed to give a full 3" of lift while maintaining an O.E. style ride
  • No bump stops are included because our springs are designed for extreme travel.
  • Replacement Rear Leaf Springs that will ride great and replace the tired factory XJ springs.
  • New rear U-bolts are included with high nuts and washers
  • New front and rear shocks are included that are valved specifically for your XJ
  • Quick Specs

    Installation skill level: 3 of 5
    Estimated install time: 5 hrs
    Max tire size: 31" x 10.50"
    Wheel size: 15" x 8"
    Back spacing: 3.5"-4"

    IMPORTANT FITMENT NOTES:

    The XJ was produced with different possible rear axles. You will have to identify your rear axle before being able to complete an order. The easiest way to tell the difference is to measure the I.D. of your rear u-bolts. The Chrysler rear end uses a 3" I.D. u-bolt and the Dana 35 rear axle requires a 2-3/4" I.D. u-bolt.

    Product Warranty

    To the original retail purchaser, Zone Offroad Products guarantees all its products are free from defects in material and workmanship for as long as that purchaser owns the vehicle on which such products were originally installed. Warranty coverage does not include consumer opinions about such areas as ride comfort, fitment and design.

    Products that wear out or fail due to the use of larger wheels or tires are not covered under this warranty by Zone OffRoad Products. Products installed on a vehicle used in any form of competition or racing are not covered by this warranty. The warranty on commercial application vehicles shall extend only 1 year. No warranty is available on items subject to normal wear and replacement.

    Shock oil seals are subject to wear over time, and use. Therefore are not covered under warranty. However leaking shock seals less than one year from date of purchase, free from contamination, damage, or abnormal seal wear due to misuse can be considered for Warranty.

    This Limited Lifetime Warranty does not apply to products characterized by one or more of the following:

    Products that have been subject to abuse, neglect, accident, fire, improper installation or adjustment, and corrosion.
    Products that have been modified or altered outside of or beyond Zone OffRoad Products specifications.
    Products used in application other than those recommended in the current Zone OffRoad Products catalog or web site or in the instructions accompanying the Zone OffRoad Products product.
    Products that are used for competition or racing activities. This Limited Lifetime Warranty does not include polyurethane components, product finish and conditions caused by normal wear and use.
    In a situation where a Zone OffRoad Products product is found to contain a defect in material or workmanship within the stated warranty period (unless caused by one or more of the above stated conditions), Zone OffRoad Products, at its option, will either replace the product or repair the product. To make a claim under this Limited Lifetime Warranty, purchaser must:

    Contact the original place of purchase for further instruction. A Return Merchandise Authorization (RMA) number is required for warranty claims. The RMA number must be displayed on the outside of the product's package. If originally purchased through ZoneOffroad.com, please call 888-998-9663 or email sales@zoneoffroad.comfor further instruction.
    Include the original purchase receipt (or copy) indicating the place of purchase, date of purchase, and amount paid,
    Return the product, freight prepaid, as instructed by the original place of purchase. Zone Offroad is not responsible for freight charges.
    NOTICE: If a replacement part is needed before the part in question can be returned, you must first purchase the replacement part. Then, if the part in question is deemed warrantable, you will be credited/refunded.

    Freight charges, installation cost, labor cost, damage to related components, cost incurred due to down time of vehicle, normal wear and tear, lost profits and incidental or consequential damages are not covered under this lifetime warranty.

    This Limited Lifetime Warranty gives you specific legal rights, and you may also have other rights, which may vary from state to state. There are no warranties expressed or implied (including any implied warranties of merchantability and fitness), which extend beyond this Limited Lifetime Warranty described herein.

    NOTICE: Zone OffRoad Products strongly recommends installation of products be done by a certified mechanic. If this does not occur be certain the person(s) installing the product read understand and follow all instructions and warnings pertaining to the application before installation. Installation instructions are also available prior to your purchase.

    WARNING: Zone OffRoad Products does not recommend the use of a body lift in conjunction with a suspension lift 'Kit' or 'System'.

    PRODUCT SAFETY WARNING
    Installation of suspension lift kits or any other lifting kits or devices will raise the center of gravity. For this reason, Zone OffRoad Products urges that extreme caution be used when encountering driving conditions which may cause vehicle imbalance. Furthermore, the driver's field of vision and judgment will not be as good due to the height of the vehicle. Due to the installation of larger tires, the speedometer will read slower than the actual speed being traveled and more distance will be required to stop the vehicle. It is the owner's responsibility to caution and warn any potential driver of the vehicle about these driving and handling conditions.

    Zone OffRoad Products will not be held liable or responsible for damages or personal injuries resulting from the use of lifting devices and/or related products. The tires and rims should be changed to sufficiently increase the vehicle's total overall width and stability to help accommodate lifting devices.

    Zone OffRoad Products also recommends that the steering system on lifted vehicles be appropriately corrected to reduce steering stress and angles. Once completed, the vehicle should be inspected by a professional mechanic including such areas as the steering system, brake system, speedometer re calibration, and clearance, for tire and suspension travel and tightness of all installed products. Every Zone OffRoad Products suspension kit includes a "Driver Warning" decal and the literature explaining this information which should be read and understood completely before driving, and the decal should be placed in a position clearly visible by the driver and all occupants.

    NOTICE: Most states have some type of law limiting vehicle height. The amount of lift allowed, and how the lift can be achieved, varies greatly. Several states offer exemptions for farm and commercial registered vehicles. It is the vehicle owner's responsibility to check state and local laws to ensure that their vehicle will be in compliance.

    Zone OffRoad Products reserves the right to make changes in design, materials, specifications and product changes as deemed necessary without prior notice and without assuming and obligation to modify any product previously manufactured. Obligation or liabilities will not be assumed with respect to similar products.

    All Zone OffRoad Products material is copyrighted.
