Zone Offroad 4.5" Jeep Cherokee XJ 84-01 Suspension System - J8N / J9N

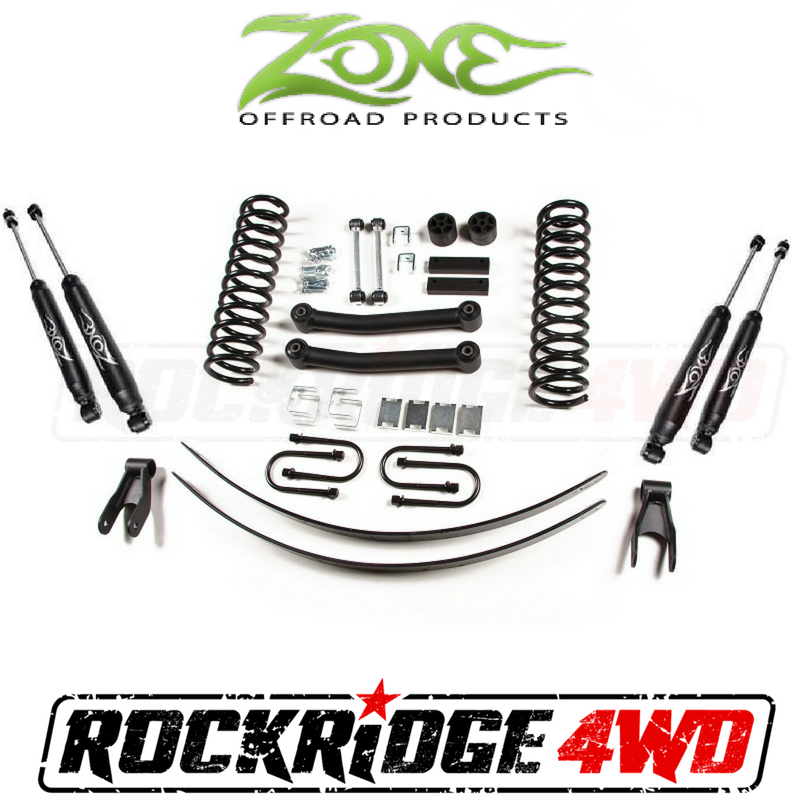

The Zone Offroad 4.5" 84-01 Jeep Cherokee lift includes new front coil springs capable of handling anything! Since we design our coil springs for off road use, there is only a 2" bump stop extension supplied to drastically increase wheel travel. Our coils can be smashed to the bottom and will always come back! No, that doesn't mean they are stiff. The key is using the correct size wire with the correct spring rate to offer the perfect ride and still hold up over time. Unlike many inexpensive kits on the market, our springs are made in the USA!

This system also comes with extended sway bar links to reduce body roll and brake line relocation brackets to make the job easy to do at home. New heavy duty lower control arms are supplied to correct alignment as well as axle location. The lower control arms are made from heavy wall tube and include factory like rubber bushings to absorb the road and offer increased flexibility.

The rear is lifted via a new long add-a-leaf that's been designed and testing to hold up over the long haul without creating a harsh ride. Unlike many companies (that we won't name), our system comes with NEW REAR U-BOLTS! You never want to re-use a u-bolt! In addition to the add-a-leaf kit, a new greasable extended shackle is supplied to allow your springs to really flex.

New Zone NITRO shocks are included in the kit that are valved specifically for the XJ.

Featured Technology & Benefits
Front coil springs designed to give a full 4.5" of lift while maintaining an factory style ride
Only 2" bump stop extensions are included because our springs are designed for extreme travel.
A transfer case drop is included to correct the driveline angle while maintaining as much ground clearance as possible.
New extended sway bar links are supplied with urethane mounts for long term performance
Front and Rear brake line relocation brackets are included.
Front lower control arms are included that include factory like rubber bushings
Long, thin add-a-leafs for the rear that offer a smooth ride as well as hold up over time
New rear U-bolts are included with high nuts and washers
Extended length shackles are also supplied for the rear to allow your springs to really flex!
New front and rear shocks are included that are valved specifically for your XJ

Important Notes!
The XJ was produced with different possible rear axles. You will have to identify your rear axle before being able to complete an order. The easiest way to tell the difference is to measure the I.D. of your rear u-bolts. The Chrysler rear axle uses a 3" I.D. u-bolt and the Dana 35 rear axle requires a 2-3/4" I.D. u-bolt.


This product fits the following applications:

84-01 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas

Quick Specs

Front Lift Height: 4 1/2"
Front Lift Method: Coil Springs
Rear Lift Height: 4 1/2"
Rear Lift Method: Add-A-Leafs & Shackles
Install Time Hrs: 6-8
Difficulty Level 1-5: 3
Wheel Size: 15" x 8"
Back Spacing: 4.75?
Max Tire Size: 32" x 11.50"
