Zone Offroad 5" Suspension Lift Kit System 07-15 Toyota Tundra -T1

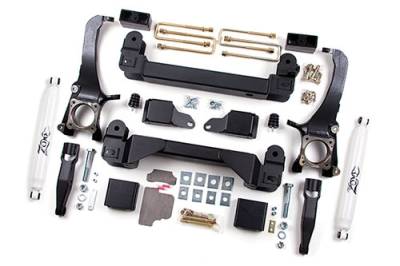

We all know the new Tundra has some serious power. Now Zone Offroad Products offers a suspension to make your Tundra into an offroad machine. New CNC machined ductile iron knuckles are included to correct steering geometry and ease installation. The heavy duty, boxed crossmembers have integrated differential mounts to lock everything together. The lower strut mounts make for an easy installation with no disassembly of the strut required.

Featured Technology & Benefits
Ductile Iron, CNC machined steering knuckles maintain factory steering geometry
No disassembly of the strut required
Easy install with detailed instructions
Maintains factory ride
Heavy duty boxed one piece crossmembers
Multi-point differential mounting system corrects drive line angles
Rear block kit for easy installation

Important Notes!
***Will NOT work on 2015 TRD Pro Models.***
***Will work with Bilstein (yellow) factory front struts on 2014-2015 models.***
Welding required
Stock 18" wheels can not be installed. factory 20" wheels with more than 6.25" backspacing can not be installed.
Vehicles equipped with a two pice rear driveshaft and carrier bearing will need the carrier bearing drop kit (part # T5409)
2WD models may require rear driveline modification

This product fits the following applications:

07-15 Toyota Tundra 2WD
07-15 Toyota Tundra 4WD

Quick Specs

Front Lift Height: 5?
Front Lift Method: IFS System
Rear Lift Height: 3?
Rear Lift Method: Block Kit
Install Time Hrs: 8 Hrs
Difficulty Level 1-5: 3
Wheel Size: 18x9
Back Spacing: 5.5?
Max Tire Size: 35 x 12.50
Wheel Size: 20x9
Back Spacing: 5.5? - 6.25?
Max Tire Size: 35 x 12.50
