Zone Offroad 3-1/2" Combo Suspension Lift Kit for 04-12 Chevy / GMC Colorado / Canyon - C1355

Zone Offroad has developed a comprehensive 3.5" lift kit that combines the Zone 1.5" body lift and Zone 2" front and rear lift kit. The benefit? A package priced kit that is nearly the height of a 4" suspension system and below the cost of a 3" body lift. Not only does it avoid the frame to body gap caused by taller body lifts, but it has the capability to clear 32's or even 33" tires with trimming that is outlined in the instructions.

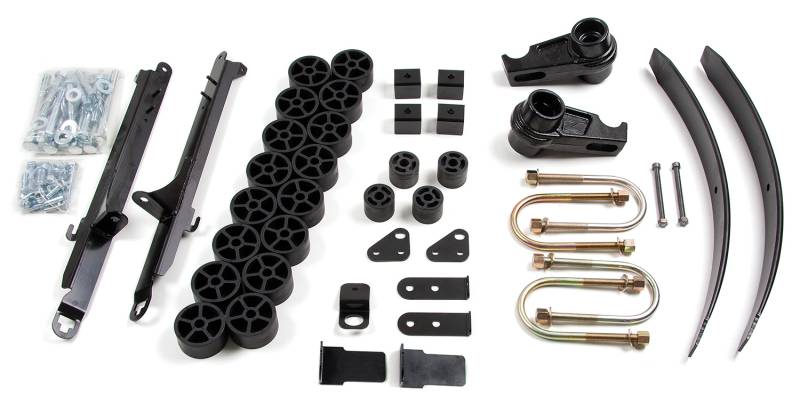

The body lift includes class 10.9 zinc plated body hardware, crush proof body lift blocks, fully integrated radiator relocation mounts, tow hook relocation and front bumper relocation. The radiator relocation utilizes a complete replacement set of radiator mounts that eliminate the need to modify the steel core support or fan shroud. This ensures proper airflow through the radiator and no loss of core support structural strength. Based on model year, Zone offers two rear bumper bracket kits that relocate the bumpers to maintain the factory relationship with the body while still leaving the factory receiver hitch in the stock location and functional.

Zone Offroad torsion bar keys are made in the USA and are 100% resonant frequency tested to ensure a solid casting. This easy to install torsion bar key leveling kit is designed to lift the front of your Chevrolet Colorado or GMC Canyon 2 inches. The kit includes front shock spacers to not only compensate for the added lift, but gain wheel travel by allowing the suspension to fully droop to the factory frame limiter. The rear is lifted with a pair of add-a-leafs for added capacity and reduced axle wrap. Zone Offroad rear shocks are available in the above upgrade section.

Featured Technology & Benefits
Body Lift Features
Class 10.9 zinc plated hardware
Fully integrated radiator relocation mounts
Front bumper 1.5" spacers and detailed trimming instructions
Tow hook relocation & reinforcement included
Suspension Lift Features
100% resonant frequency tested torsion keys
Includes front shock spacers
Add-a-leaf will lift the rear while reducing unwanted spring wrap and improved towing or hauling peformance.
Optional custom valved rear shocks available in the accessories

Important Notes!
For automatic transmission models only
Works with all cab configurations
Trimming of front bumper plastic valance or frame required for front bumper relocation
Bumper hitch not for towing after lifting rear bumper, factory/aftermarket receivers are not affected by lift
Radiator & condenser brackets not designed for V8 models.
Welding optional and required only if front factory tow hooks are retained.

This product fits the following applications:

04-12 Chevy Colorado 4WD
04-12 GMC Canyon 4WD

Quick Specs

Front Lift Height: 3.5?
Front Lift Method: Torsion Bar Keys & Body Lift
Rear Lift Height: 3?
Rear Lift Method: Add-A-Leafs & Body Lift
Install Time Hrs: 4-5
Difficulty Level 1-5: 3
Wheel Size: 16x8
Back Spacing: 5?
Max Tire Size: 32x11.50
