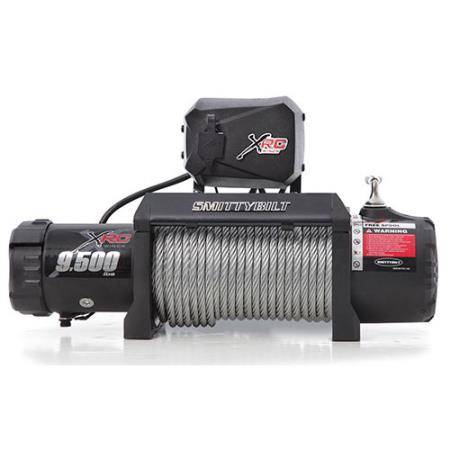

Smittybilt XRC 9.5 Gen2 9,500 lb Winch IP67

The new Smittybilt XRC winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranging from 9,500lb to 17,500 lbs capacities, Smittybilt's XRC Series winches can handle any situation you can get into. Every XRC winch features a Series Wound 6.6 HP motor and a 3-Stage Planetary Gear System with revised gear ratios for increased pulling power and lightning-fast line speeds.

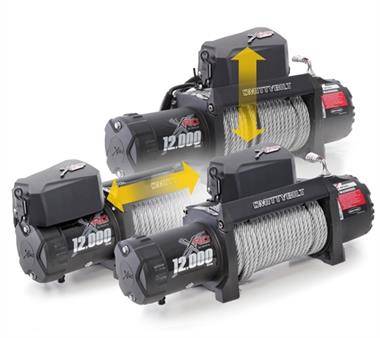

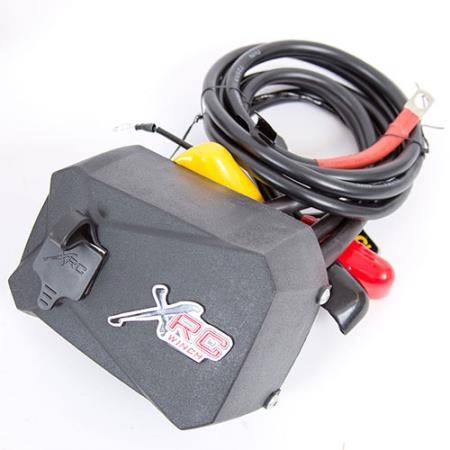

Every winch is finished in a rugged UV-Resistant matte black coating with stainless steel hardware and oversized aluminum crossbars to provide you with a great looking system that will last you a lifetime. Every XRC winch includes a heavy duty winch controller, four-way roller fairlead, forged steel tow hook, and a redesigned solenoid box that can be mounted in 3 different positions for maximum versatility. If you're looking for a winch equipped with a synthetic winch rope, look to the XRC Comp Series for the ultimate in pulling power and performance. A Smittybilt XRC winch is a complete recovery system with the muscle and reliability to bail you out of any situation. Winch includes a Lifetime Mechanical Warranty and 3 Year Electrical Warranty.

Details:

• Waterproofing: IP67 Rating
• Fairlead: 4-Way Roller
• Rated Line Pull: 9,500Lbs (4,309kgs) single-line

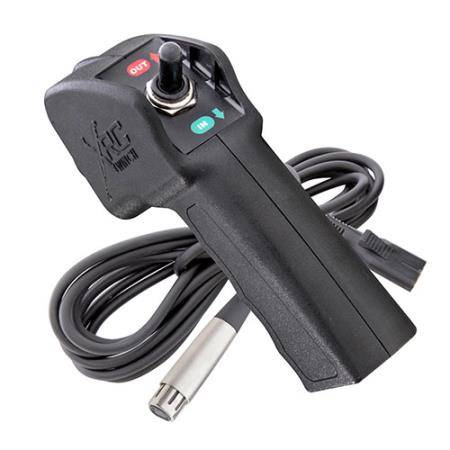

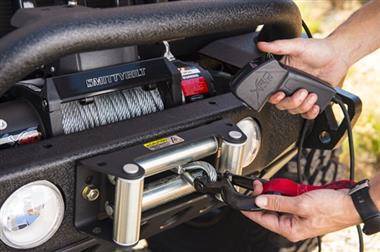

• Remote Control: Included
• Motor: 6.6hp Series Wound
• Recommended Battery: 650CCA Minimum for Winching
• Control: Remote Switch, 12â?? (3.7m) lead
• Battery Leads: 25mm, 72" (1.83m)
• Gear Train: 3-Stage Planetary
• Gear Ratio: 161.28:1
• Finish: Textured Black
• Weight: 78.0 lbs (35.0 k)
• Clutch: Sliding Ring Gear Mounting
• Bolt Pattern: 10.0 " x 4.5 "
• Brake: Automatic In-Drum
• Overall Dimensions (L x W x H): 22.3" x 5.4" x 9.4"
• Drum Size: Diameter 2.5"
• Cable Type: Wire Rope
• Cable: 93.5' 5/16" Diameter
