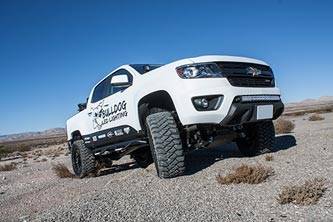

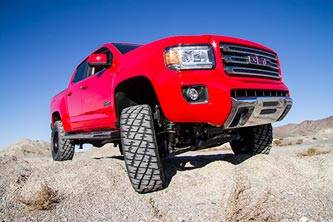

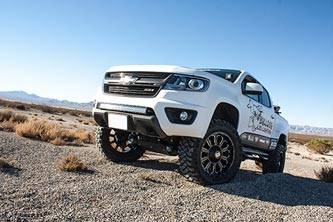

BDS 5.5" Performance Suspension System featuring Fox 2.5 Remote Reservoir Coil-overs for 2015-19 Chevy/GMC Colorado/Canyon 4WD trucks - 722F

BDS raises the bar once again with new 5.5" Performance Coilover Systems for the 2015-2019 Colorado/Canyon. Designed around the tried-and-true steering knuckle and crossmember technology, these kits provide enough lift fit 33" tires while maintaining the OE suspension geometry for smooth handling and ride characteristics. Along with the rugged, high clearance design to maximize ground clearance, this new system has passed the National Highway Traffic Safety Administration's Federal Motor Vehicle Safety Standard (FMVSS) No.126 and has been independently certified to not adversely affect the vehicles factory installed electronic stability control system with the lift installed. That combined with BDS No Fine Print Warranty and a 5-year 60,000-mile drivetrain warranty gives you the peace of mind wherever and however you use and abuse your truck.

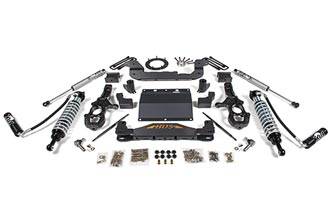

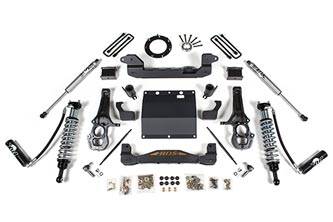

This system uses a pair of heavy duty 1/4" steel high clearance crossmembers to reposition the lower control arms and work in unison with the massive ductile cast iron extended steering knuckles. The crossmembers utilize the factory alignment eccentrics and tie together with a full-width skid plate. The skid plate protects vital front end components for offroad use and ties the crossmembers together for an extremely rigid sub-frame. The front differential is relocated to keep CV axle angles at a minimum and function properly with the supplied transfer case indexing ring. This allows for the use of the factory front driveline once lifted. Front bump stop extension and sway bar links are included as well as new heavy duty Moog tie rod ends to properly set alignment without trimming the inner tie rods.

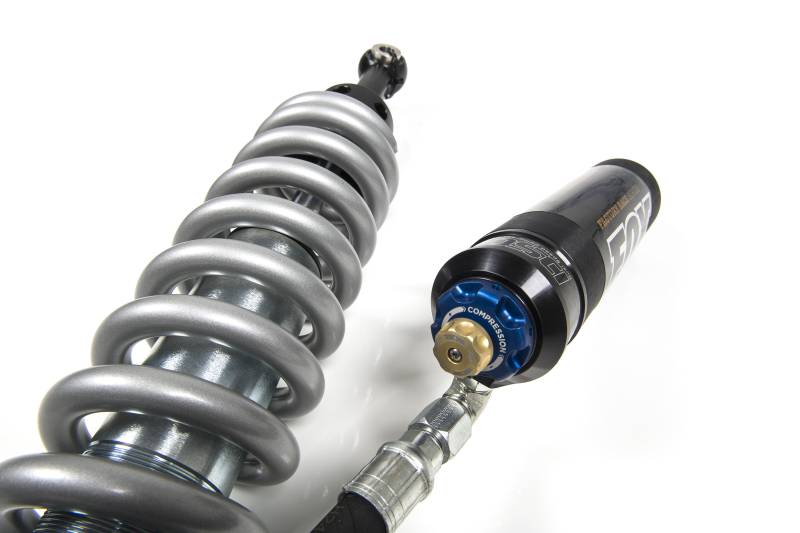

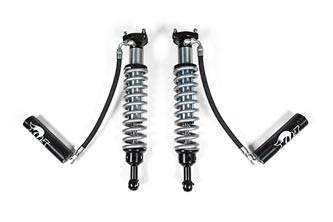

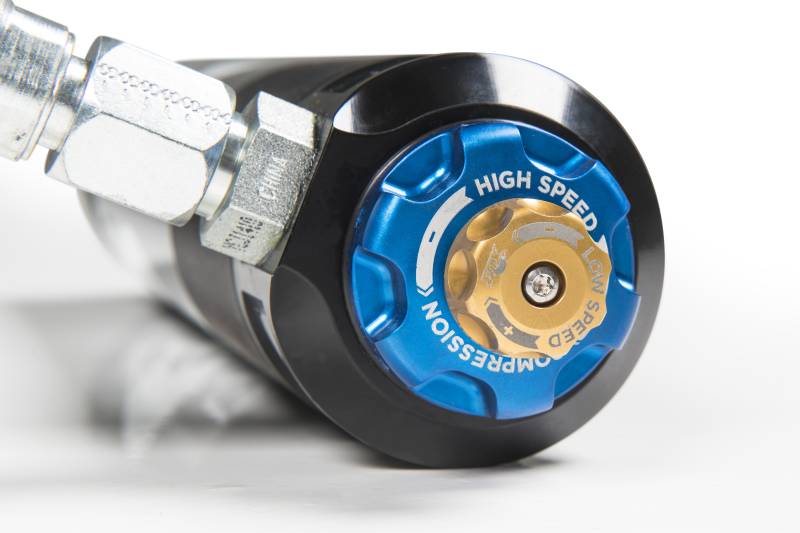

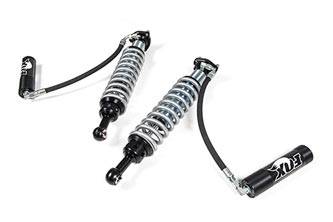

In place of the factory struts this system uses precision tuned FOX 2.5 remote reservoir coil-overs to achieve superior on and offroad performance. The included Fox 2.5 Coil-Overs can also be upgraded to the DSC (dual speed compression) adjuster equipped coil-overs (more info below) for the ability to perfectly fine tune the ride quality and handling of your Fox coil-overs.

Finishing off this new 5.5" coilover system, a 4" rear block/u-bolt kit sets the new ride height and levels the stance. Specially tuned FOX 2.0 series IFP gas shocks are supplied to compliment the front coilovers and improve the Colorado/Canyon's performance on or offroad.
