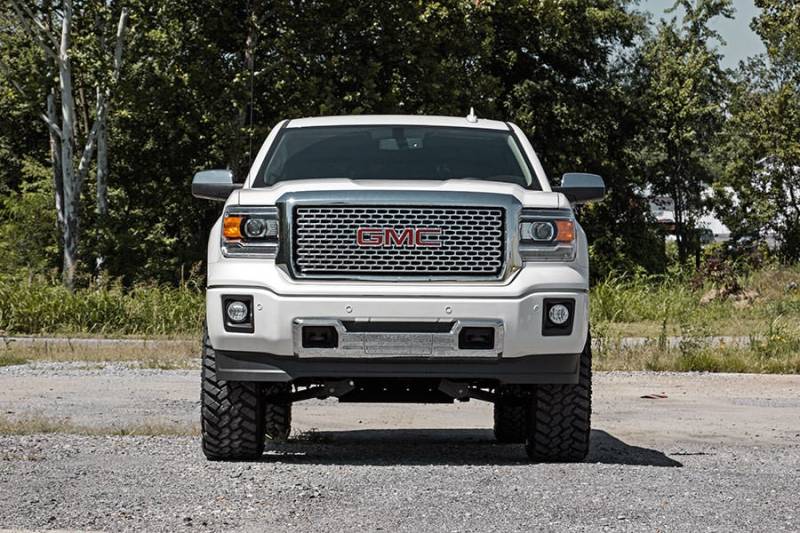

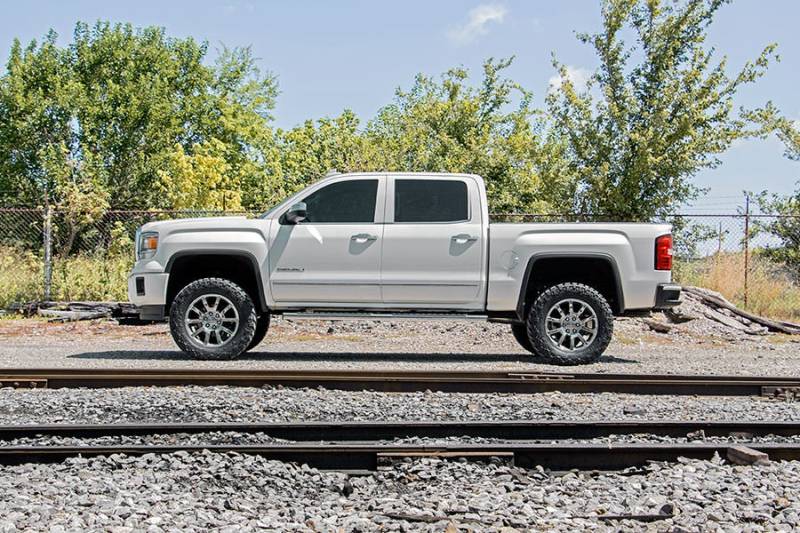

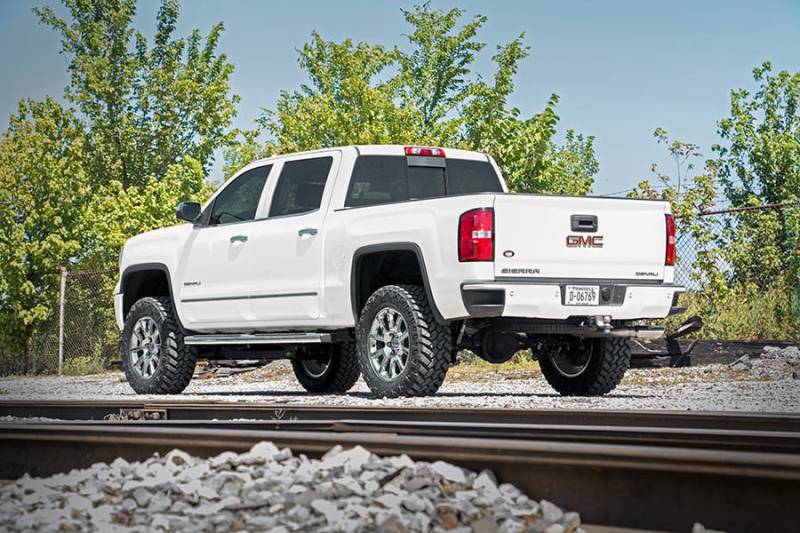

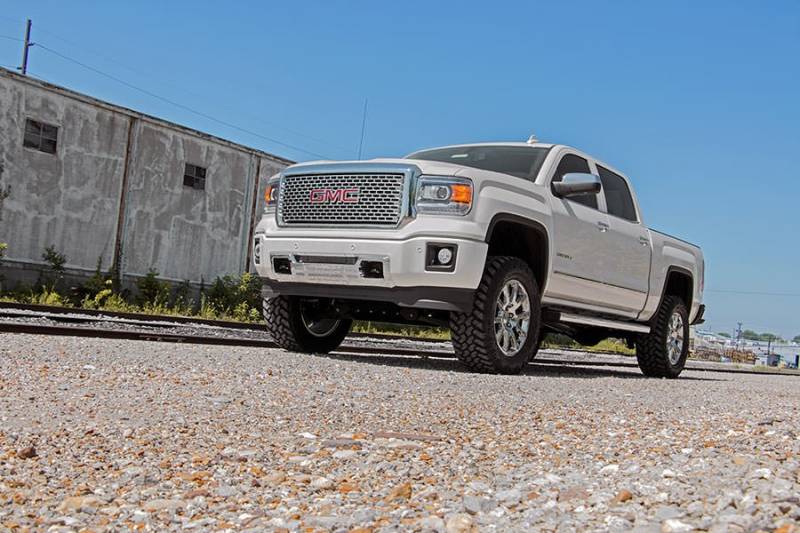

There’s no better way to deck out that new truck you worked so hard for than with the aggressive stance and jaw-dropping ride height of Rough Country's 7-inch Suspension Lift for GMC Sierra Denali 1500 Pickups equipped with Magnetic Ride Control. This massive lift is designed to retain your stock track width! This affords your truck the ability to run up to an impressive 35-inch tire on factory 20-inch wheels, and gives you a nearly limitless choice in aftermarket wheels and tires that other kits just can't fit.
This kit ships with EVERYTHING you need to give your new truck the aggressive stance and capabilities it deserves; stout upper strut spacers, a beefy front and rear skid plate, our heavy duty front and rear crossmembers, and a set of differential and sway-bar drop brackets - all designed by our in-house Research and Development team with 100% laser-cut materials for the best possible fit on your vehicle. This whopping 7-inch Lift also comes with a set of rear 6-inch fabricated anti-wrap lift blocks that offer a huge boost while helping combat dreaded axle wrap issues on inferior big lifts. Includes Rough Country's Lifetime Replacement Warranty.
FEATURES
- Increased ground clearance
- Maintains stock track width.
- Can run factory 20-inch wheels.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
NOTES - IMPORTANT
- Requires cutting and drilling.
- ONLY fits GMC Denali models with Magnetic Ride Control.
- Must know if Stock Upper Control Arms are Cast Aluminum or Cast Steel.
- Does NOT fit models with Stock Stamped Steel upper control arms
- If wider than 35x12.50 tires are used, offset wheels will be required and trimming may be required.
- 18-inch or larger wheels are required.
- Please view installation instructions for complete information on proper tire/wheel combinations.
- If truck is equipped with a mass damper on the front differential, the damper must be removed.

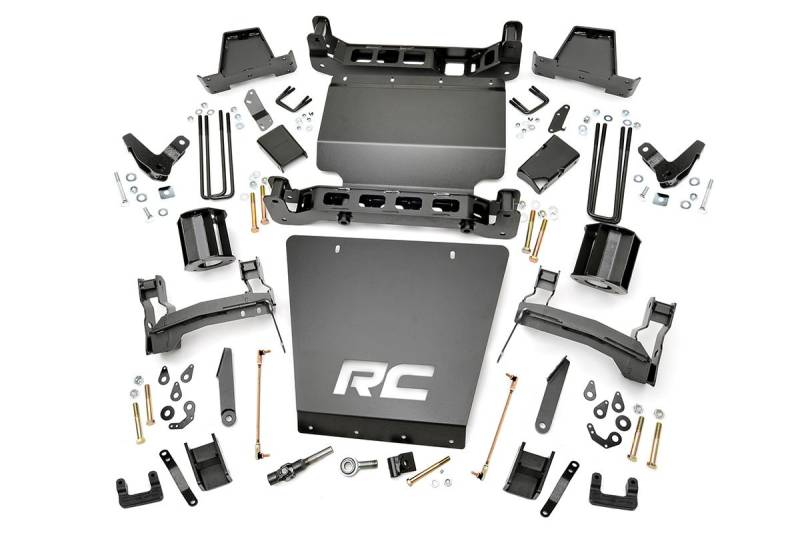

FRONT
- Upper strut spacers
- Lower strut spacers
- Front crossmember
- Rear crossmember
- Control arm drop brackets
- Differential drop brackets
- Sway-bar drop brackets
- Steering extension
- Steering brace
- Front skid plate
- Lower skid plate
- Hardware
REAR
- Fabricated anti-wrap lift blocks
- Brake line relocation brackets
- U-bolts
- Hardware
Est. Install Time |
8-10 hours |
2014-2016 |
4WD |
GMC |
Sierra 1500 |
295/60R20 |
Factory 20 |
6x5.5 |
- |
0.25" Spacer |
295/70R18 |
Factory 18 |
6x5.5 |
- |
0.25" Spacer |
315/65R18 |
18x9 |
6x5.5 |
+12 |
- |
315/65R18 |
18x9 |
6x5.5 |
+18 |
- |
315/70R17 |
17x9 |
6x5.5 |
+12 |
- |
315/70R17 |
17x9 |
6x5.5 |
+18 |
- |
35x12.50R20 |
20x9 |
6x5.5 |
+12 |
- |
35x12.50R20 |
20x9 |
6x5.5 |
+18 |
- |
