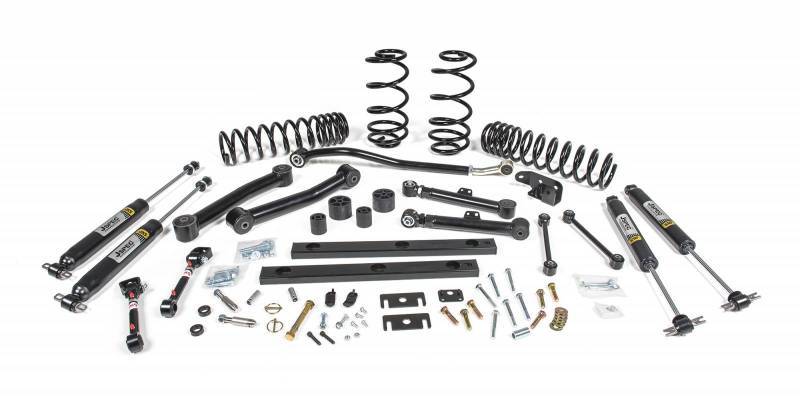

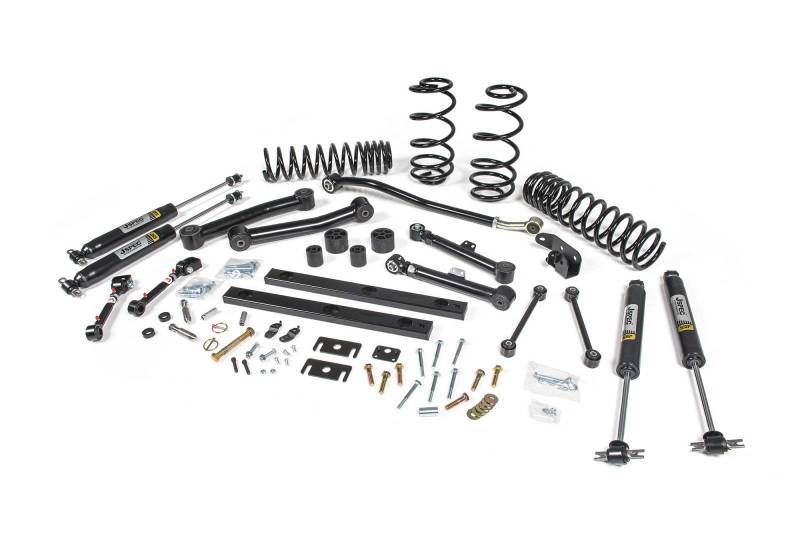

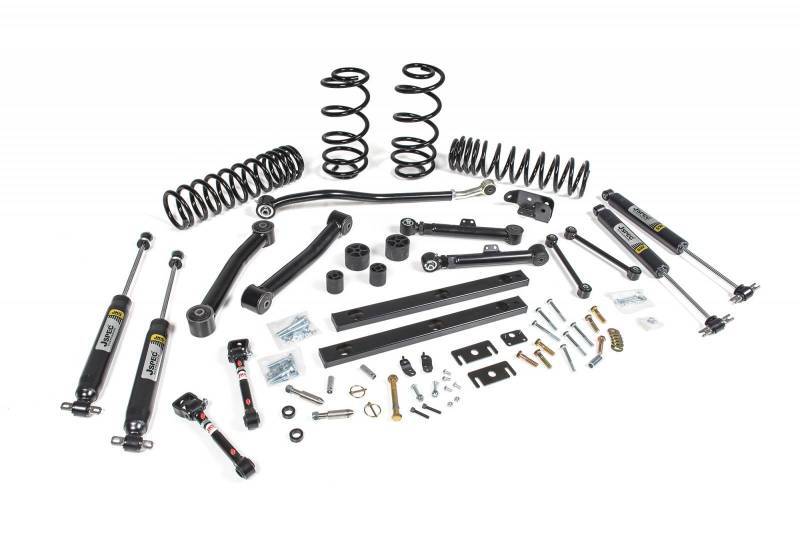

JSPEC 3" Suspension System Jeep Wrangler TJ 97-06 *CHOOSE YEAR*

Description
Now TJ owners can enjoy the benefits of a complete JSPEC suspension system outfitted with the most popular JKS suspension components. This is the most the best riding, most complete 3” lift system available on the market today. Why buy a base kit and continue to add parts when you can get it all in a complete system?

Front and Rear Dual Rate Coil Springs
At the heart of any true Jeep suspension "system" are properly designed coil springs. Not everyone does the same thing with their Jeep, therefore you need a system that adapts to different terrain as well as on and off road situations. By developing tuned sets of dual rate coils springs, JSpec coils provide the best performance in any situation. Whether loaded down with gear for a week long expedition, running light for some rock-crawling fun or loaded with a few friends for a trip to the beach, JSpec coils will provide the ride you want with the performance you need.

JSpec Front and Rear Shocks
A great set of coil springs are useless unless you have a set of shocks to control them. For the TJ, we wanted to be able to provide a shock that capitalizes on the JSpec spring’s ride characteristics without breaking the bank, so we created the JSpec Gas shocks. The JSpec shocks are valved specifically to work with the JSpec dual rate springs, giving maximum performance in the widest variety of terrains.

For the ultimate in handling and control, check out the Fox 2.0 Performance Series upgrade!

JKS Adjustable Front Track Bar
When you think of adjustable Jeep track bars you think JKS. For years, Jeepers the world over have trusted JKS adjustable track bars for their strength, fit, function and durability. For those reasons it is a "no-brainer" that a JKS front adjustable track bar be an integral part of the JSpec TJ suspension systems. The adjustable track bar dwarfs the factory component, offering fine adjustability of the front axle position to compensate for the additional lift height provided by the JSpec coil springs. Factory style rubber bushings are used at the axle end of the bar for quiet and compliant function, with our own spherical urethane misalignment joint on the frame for the best street ride and off road performance. The 1-1/4"-12 threaded adjustable end provides fine-tune adjustability and superior strength when combined with the 1-1/2" x 1/2" wall DOM tube, CNC formed track bar. Adding an adjustable track bar versus a relocation bracket also keeps the TJ’s steering angles in-phase to provide great handling and keep bump steer in check.

JKS Front Sway Bar Quicker Disconnects and Rear Sway Bar Links
The flag-ship JKS Manufacturing product is the Quicker Disconnect. JKS was the originator of the sway bar disconnect concept. That original concept was perfected with the Quicker Disconnect design which still remains the best sway bar disconnect on the market today. Adjustable length and greasable with JKS-exclusive poly-flex ball, high-misalignment ends, the Quicker Disconnect is everything you want in a sway bar disconnect. Stainless steel mounting studs provide an anchoring point for each end of the links and allow for easy removal and installation.

JKS supplies fixed rear sway bar links to correct rear sway bar angle.

Front Line Relocation
How much can you say about brake line relocation? Well, it is a necessity anytime a TJ is lifted, especially with longer travel shocks. In most kits on the market these items are an after-thought but not in the JSpec kits. The JKS brake line brackets included in the TJ JSpec suspension systems utilize the factory brake line mounting holes and locating tabs. This ensures that the brackets won't rotate and eventually come loose. The brackets were designed specifically to work with the shock lengths used with each JSPEC Suspension System. The result is just enough length at full axle droop with minimal modifications to the factory routing.

Rear Track Bar Bracket
As with the front suspension, the rear requires modification to the factory track bar setup to compensate for the new ride height. While the front gets a new track bar, the rear is treated with a track bar relocation bracket. By raising the track bar mount position at the axle we flatten the track bar angle and make a slight adjustment to the roll-center height which helps with handling and body roll.

Front and Rear Bump Stop Extensions
The front and rear bump stop extensions, like brake line relocation brackets, are another component set that usually doesn't get much attention with most lift "kits" on the market. The bump stop extensions in the TJ JSpec suspension systems were made specifically to maximize suspension travel while maintaining save compression limits for both the coil springs and shocks.

Control Arms
When lifting a TJ over 2” a proper suspension system must provide control arms to make it right for a couple of reasons. First, while they work well, the TJ lower control arms cannot handle extreme abuse, especially in the front. Second, they’re extremely short and don’t give you much room to adjust your caster and axle alignment, even with eccentric alignment bolts. That’s why we include a pair of our robust J Link front lower control arms. Their 2” x .250” construction is nearly indestructible, and high quality Clevite® rubber bushings provide great flex while maintaining OEM street manners. Upgrade to matching J Link rear lower control arms for the ultimate, off road ready set up!

A proper 3” system also requires adjustable upper control arms to correct pinion angles, so we include our J Flex upper control arms in the 3” TJ JSpec system. Adjustable arms allow fine tuning of caster and axle placement to eliminate driveline vibrations. Utilizing the same high quality construction of our J Link lowers, the J Flex arms are finished off with our adjustable, Forged Flex ends for the ultimate in strength, adjustability and flex!
