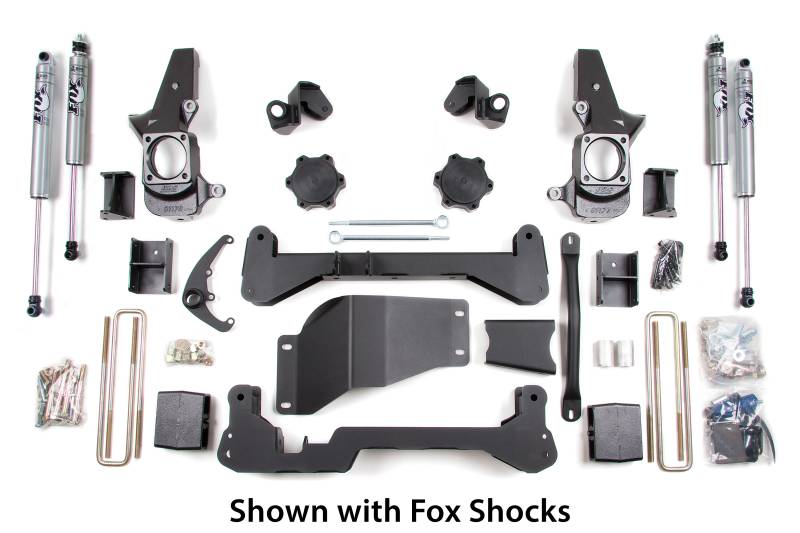

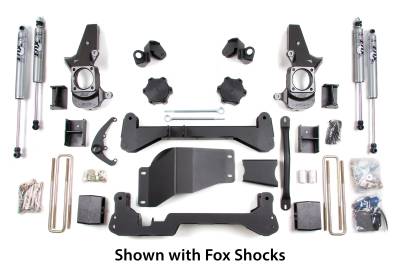

BDS Suspension Chevrolet/GMC 4WD 4-1/2" Lift Kit for 2001-2006 1500 HD Silverado/Sierra 1/2 ton pickup, 2001-2010 2500 HD Silverado/ Sierra 3/4 ton pickup, 2001-2006 2500 NON-HD Silverado/ Sierra 3/4 ton pickup, Avalanche, Suburban, and Yukon XL 2500 3/4

This unique High Clearance suspension lift kit utilizes high arched crossmembers that blend perfectly with the angle of the factory installed lower control arms for a completely integrated look while lifting your vehicle a full 4-1/2" dramatically increasing ground clearance at the front crossmembers and improving operating geometry. A front differential skid plate comes standard, for increased off road protection.

The rear is lifted with a tapered 3" block for easy installation.

This highly customizable kit gives you the choices you need to build your rig your way. Standard or narrow track knuckle kits, gas shocks, and dual steering stabilizers are just a few of the options and upgrades available for this 4-1/2" Chevy/GMC suspension lift kit.

Tire & Wheel Combinations

2001-2007 Classic Body Style

33" x 12.50" w/16 x 8 and 4-1/2" back spacing

35" x 12.50" w/17 or 18 x 9 and 5.5" back spacing

35" x 12.50" w/20 x 9 and 5.75" back spacing

2007-2010 New Body Style

33" x 12.50" w/16 x 8 and 4-1/2" back spacing

33" x 12.50" w/17 or 18 x 9 and 5.5" back spacing

33" x 12.50" w/20 x 9 and 5.75" back spacing

Important Kit Notes

• 1. Torsion Bar tool required to load/unload the torsion bars.
• 2. Some welding required.
• 3. Requires frame bracket modification and differential mount modification.
• 4. Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4" to 8" of lift.
• 5. 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
• 6. Gas models require exhaust modification.
• 7. Narrow track knuckle will slightly increase turning radius.
• 8. For tail high stance use #119157 add-a-leaf with the block kit or #069207 with leaf spring kit.

• Tire & Wheel Combinations

*Trimming may be required*

• Est. Installation: 8-10 hours
• Difficulty Level (easy 1 - 5 complicated): 4

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

Vehicle Fitment Information

• 2001 Chevy / GMC 1 Ton Pickup 4WD
• 2002 Chevy / GMC 1 Ton Pickup 4WD
• 2003 Chevy / GMC 1 Ton Pickup 4WD
• 2004 Chevy / GMC 1 Ton Pickup 4WD
• 2005 Chevy / GMC 1 Ton Pickup 4WD
• 2006 Chevy / GMC 1 Ton Pickup 4WD
• 2007 Chevy / GMC 1 Ton Pickup 4WD
• 2008 Chevy / GMC 1 Ton Pickup 4WD
• 2009 Chevy / GMC 1 Ton Pickup 4WD
• 2010 Chevy / GMC 1 Ton Pickup 4WD
• 2001 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
• 2002 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
• 2003 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
• 2004 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
• 2005 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
• 2006 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
• 2001 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
• 2002 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
• 2003 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
• 2004 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
• 2005 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
• 2006 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
• 2007 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
• 2008 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
• 2009 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
• 2010 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
• 2001 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
• 2002 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
• 2003 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
• 2004 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
• 2005 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
• 2006 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
• 2001 Chevy / GMC Avalanche 2500 4WD
• 2002 Chevy / GMC Avalanche 2500 4WD
• 2003 Chevy / GMC Avalanche 2500 4WD
• 2004 Chevy / GMC Avalanche 2500 4WD
• 2005 Chevy / GMC Avalanche 2500 4WD
• 2006 Chevy / GMC Avalanche 2500 4WD
• 2001 Chevy / GMC Suburban 3/4 Ton 4WD
• 2002 Chevy / GMC Suburban 3/4 Ton 4WD
• 2003 Chevy / GMC Suburban 3/4 Ton 4WD
• 2004 Chevy / GMC Suburban 3/4 Ton 4WD
• 2005 Chevy / GMC Suburban 3/4 Ton 4WD
• 2006 Chevy / GMC Suburban 3/4 Ton 4WD
• 2001 Chevy / GMC Yukon XL 3/4 Ton 4WD
• 2002 Chevy / GMC Yukon XL 3/4 Ton 4WD
• 2003 Chevy / GMC Yukon XL 3/4 Ton 4WD
• 2004 Chevy / GMC Yukon XL 3/4 Ton 4WD
• 2005 Chevy / GMC Yukon XL 3/4 Ton 4WD
• 2006 Chevy / GMC Yukon XL 3/4 Ton 4WD
