4" Coilover Conversion 4-Link Suspension System - 11-16 Ford F250/F350 4WD Diesel - 590F

DIESEL ONLY
BDS Suspension 4" Coilover Conversion 4-Link System

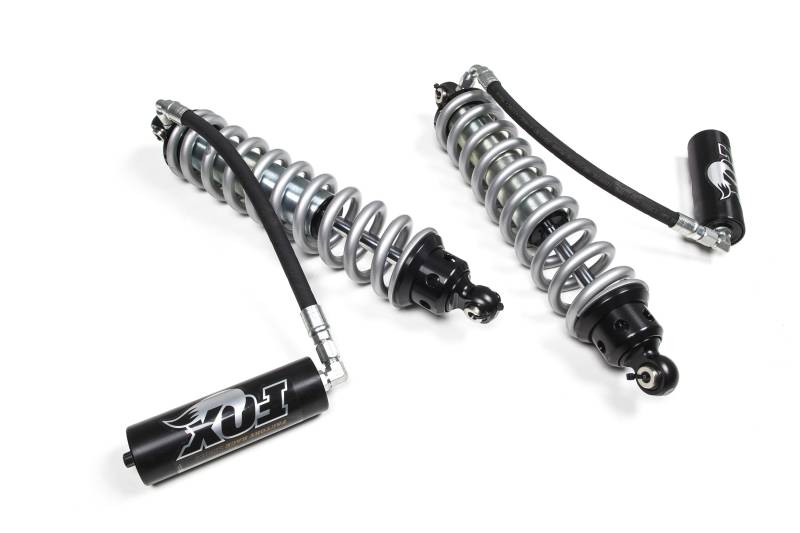

If you're looking for a kit to outperform on the trail and on the street then the BDS coilover conversion 4-link systems is for you. This system uses a pair of precision tuned FOX 2.5 factory series remote reservoir coilovers for superior dampening capabilities and fade free performance when your blazing a trail on the harshest of terrains. While utilizing a pair of specially tuned FOX 2.5 factory series remote reservoir coilovers designed for the weight of the Powerstroke diesel Super Duty, the coilovers come prebuilt for 4" of lift and ready to install right out of the box. They use a smooth bore and honed seamless alloy body, 7/8" hardened steel carbon shaft, Eibach coil springs, 6061-T6 billet aluminum ends and specially formulated race proven oil. The threaded body is easily adjustable to dial in ride height to compensate for accessories like heavy winch bumpers. Also included are heavy duty upper and lower mounting brackets that bolt into the factory coil bucket and lower axle mount for easy installation with no welding required. The upper brackets integrate a mount to secure the remote reservoir. An auxiliary FOX 2.0 gas shocks is used up front to further improve dampening capability.

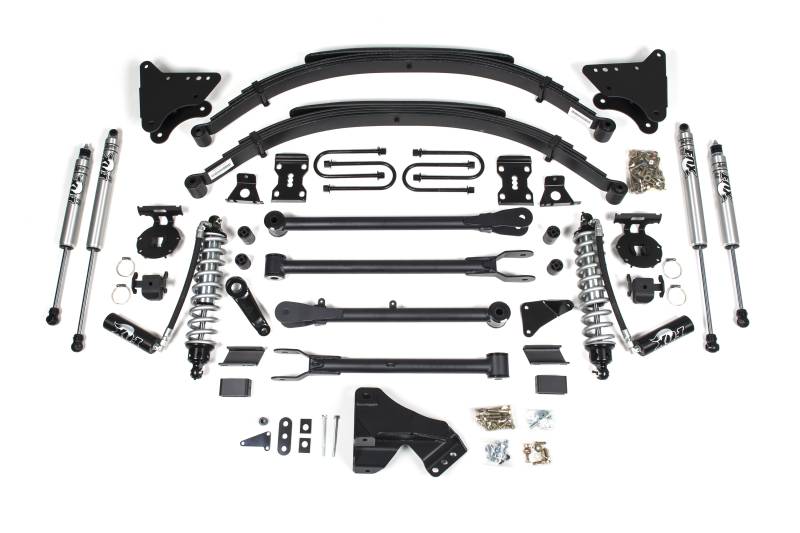

Upgrading the factory stamped steel radius arms this system converts over to a true 4-link design to improve drivability, performance and strength. The heavy duty 1/4" thick steel frame mounted 4-link brackets bolt into factory holes to allow the four massive tubular control arms to be installed. These arms are build from 2" OD x .250" wall tubing with large greaseable bushings. 4-link design optimizes the front suspension geometry and reduces caster change through wheel travel to less than 1-degree.

Also included up front of this system is a forged drop pitman arm and front track bar relocation bracket to correct steering and track bar angles as well as to center the axle under the vehicle. Front bump stop extensions, sway bar drops, and brake line relocation brackets round out the front of this system. In the rear, this kit lifts and level the stance using your choice of a replacement rear lift block or GlideRide leaf springs. The leaf springs use a 5-leaf design with built in overload leaf to assist when carrying heavy loads. New black e-coated u-bolts, brake line brackets and Fox 2.0 performance gas shocks are supplied to round out the rear of the 4" coilover conversion 4-link system.

As with all BDS lift kits this performance coilover system is backed by Factory Protection Plus offing BDS's No Fine Print Warranty and 5-year, 60,000-mile drivetrain protection.

Tire & Wheel Combinations
35" x 12.50" w/17 x 9 and 4.5" back spacing
35" x 12.50" w/18 x 9 and 4.5" back spacing
35" x 12.50" w/20 x 9 and 4.5" back spacing
Est. Installation: 9 hours
Difficulty Level (easy 1 - 5 complicated): 3

Important Kit Notes
1. Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8" block for level to tail high stance. Single add-a-leaf kit # 113218 recommended for more level stance - Dual add-a-leaf kit # 113209 recommended for tail high stance. (Add-A-Leafs do not apply to rear leaf spring equipped systems).
2. If equipped with 2-piece driveshaft, a driveshaft alignment kit (#123402) may be required.
3. Although extremely rare, front and/or rear driveline vibration may occur.
4. If equipped with rear sway bar, #123009 required.
5. U-bolts will not work on dually.
