Trail Gear Suzuki Jimny Extended Brake Line Kit - 304147-3-KIT

Suzuki Jimny Extended Brake Line Kit
Our DOT approved Jimny Extended Brake Line Kits are suitable for all Suzuki Jimny JB23/33/43 models with up to 3.5” [90mm] of lift. These brake lines are constructed from extruded PTFE (Teflon) hose with permanently crimped zinc-plated steel fittings.The brake hose is protected from debris and abrasion by a braided stainless steel wire cover. A clear PVC outer jacket provides additional protection against debris, abrasion, and corrosion.
These extended brake lines are a direct fit and exceed all requirements of the Department of Transportation Motor Vehicle Standard MVSS-106. They come in a complete set of two front brake lines and one rear brake line along with four copper sealing washers and a mounting clip.

Specifications
Exceeds all requirements of the Department of Transportation Motor Vehicle Standard MVSS-106.
Provided with (4) copper sealing washers, (1) mounting clip, and installation instructions.

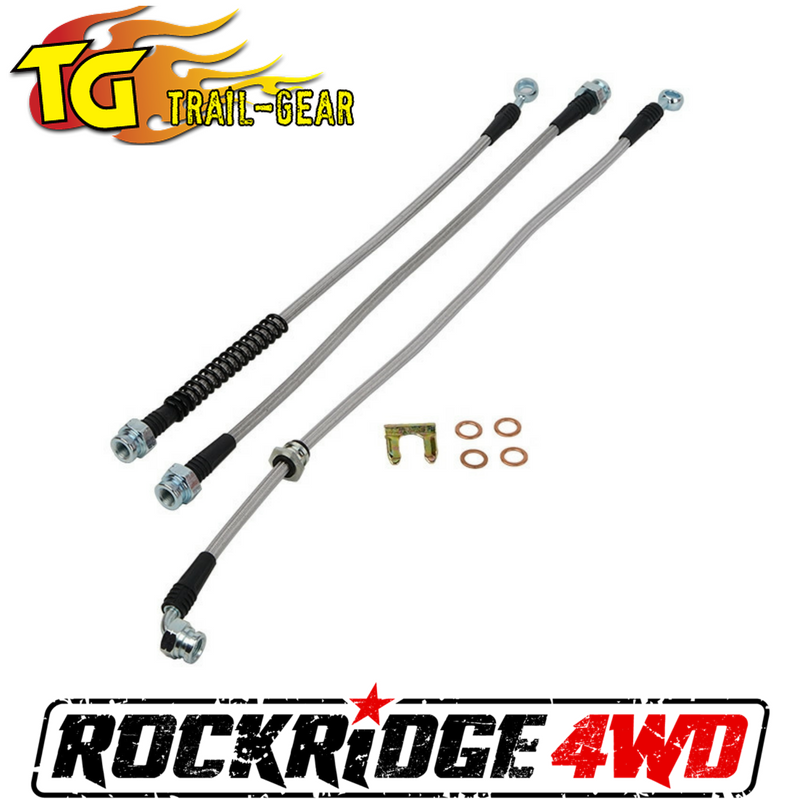

Set of (2) front brake lines and (1) rear brake line.
Clear PVC outer jacket.
Braided stainless steel wire cover.
Permanently crimped zinc-plated steel fittings.
PTFE (Teflon) hose.
DOT approved extended brake lines, suitable for lifts up to 3.5” [90mm].

Application Data
2000-2015 Suzuki Jimny JB43
1998-2005 Suzuki Jimny JB33
1998-2015 Suzuki Jimny JB23
