Zone Offroad 4" Suspension System 2016 Toyota Tacoma 4WD - T8N

ZNT8N
Pricing: $1,241.70

Customize Your Item

- Shock Options -
 * required
- Shock Boots -
 * required
Qty:
Free Shipping

Description

Zone Offroad's 2016 Toyota Tacoma 4wd 4" Suspension System gives current model owners a complete and affordable system to clear up to 33" tires, including everything needed to properly outfit your new truck for safe, reliable performance where ever your journey may lead you.

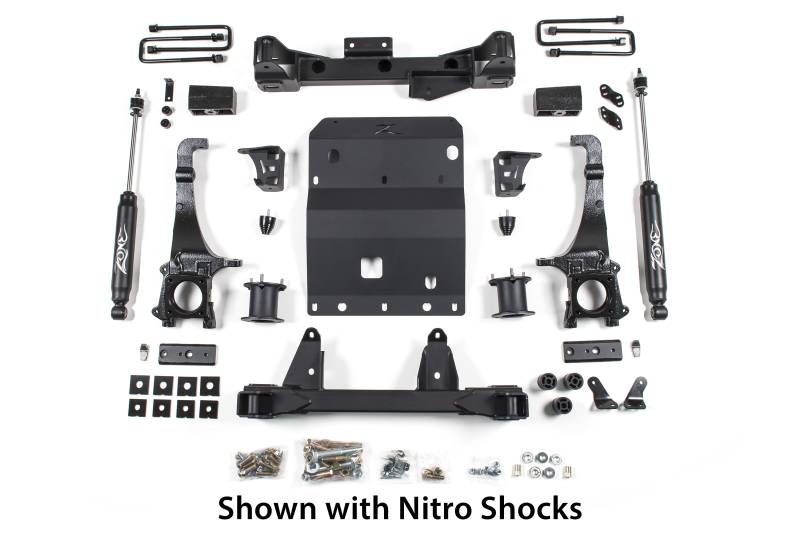

Up front the kits include a pair of heavy duty 1/4" thick crossmembers, full width differential skid plate, and multipoint differential relocation brackets to create a strong subframe. These combined with the ductile iron steering knuckles all the system to work with the factory ESC System parameters to keep you safe on the road. Finishing off the front of this kit are a pair of top mounted strut spacers, new bump stops, sway bar relocation brackets and all the hardware needed to install. In the rear of these kits is a block kit to level the stance, new u-bolts, brake line extension and your choice of Zone hydro or nitro gas shocks.

Choose your Tacoma suspension lift from Zone Offroad simply because it provides the best parts for the least amount of your hard earned cash with excellent customer service to back it up.

Featured Technology & Benefits
Heavy Duty 1/4" Boxed Front & Rear Crossmembers

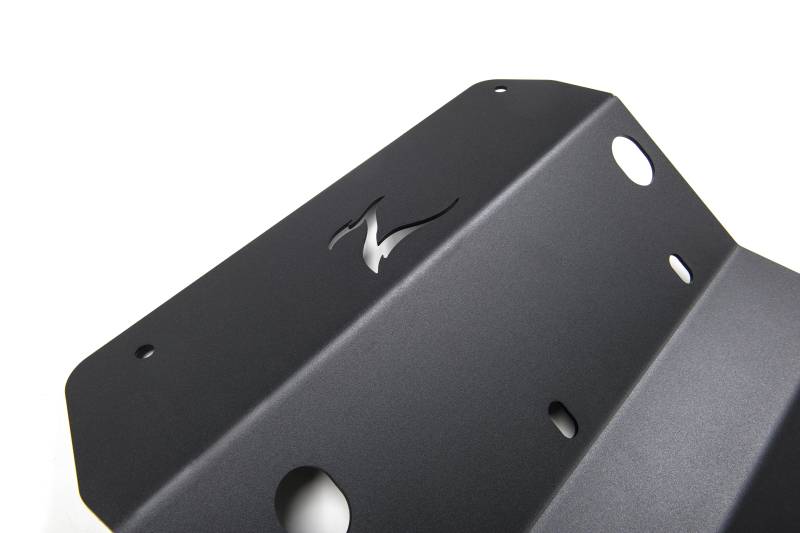

Full Width Belly Pan For Differential Protection And A Strong Sub-Frame
Solid Extended Ductile Iron Steering Knuckles
Stout Strut Spacers To Maintain Factory Struts And OE Ride Quality/Handling
Durable Black Powder Coat Finish
Over 90% Made In The USA

Important Notes!
Minor welding required (steering stops)
Requires frame bracket modification
Stock wheels cannot be reinstalled. 18" or larger wheels must be used.
System will work on 2wd PreRunner models
33x12.50 tires require trimming

Quick Specs

Front Lift Height: 4?
Front Lift Method: Strut Spacers
Rear Lift Height: 3?
Rear Lift Method: Block Kit
Install Time Hrs: 6-8
Difficulty Level 1-5: 4
Wheel Size: 18x9 min.
Back Spacing: 4.5?
Max Tire Size: 33x12.50 *notes

16 Toyota Tacoma 4WD

Vehicle Type

16 Toyota Tacoma 4WD
