Longfield Suzuki Samurai Inner Axle Shafts, 33 to 22 spline - 304063-3-304064-3

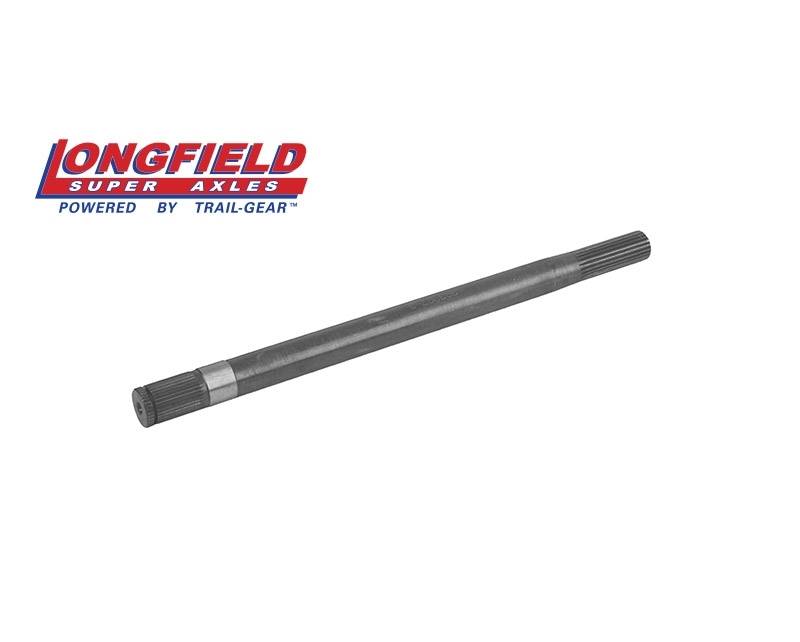

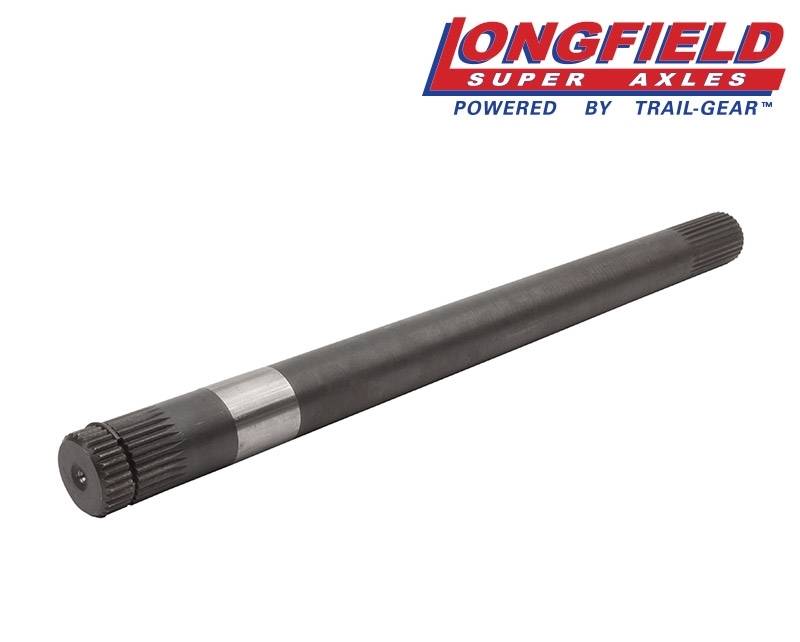

Longfield™ Suzuki Samurai Front Axle Shafts

These 4340 chromoly steel front axle shafts are a great alternative for those who want axles that are stronger than stock but don’t want the hassle of purchasing and installing 26-spline side gears in their front differential. The shafts are 22-spline on the differential side for easy installation into stock differentials. The birfield side of the axle shaft has been upgraded to 33-splines to better distribute the torque loading.
Note: These shafts will not work with stock Samurai birfields
If you live outside of the USA, please click "INTERNATIONAL INQUIRY" to receive a free quote with shipping.
Available Options:

Longfield™ Suzuki Samurai Front Axle Shaft, Long Side (33 to 22-Spline), 304063-3
Longfield™ Suzuki Samurai Front Axle Shaft, Short Side (33 to 22-Spline), 304064-3

Axle Shaft Dimensions
4340 Chromoly steel
Fully machined and polished seal surface
33-spline at the birfield and 22-spline at the differential

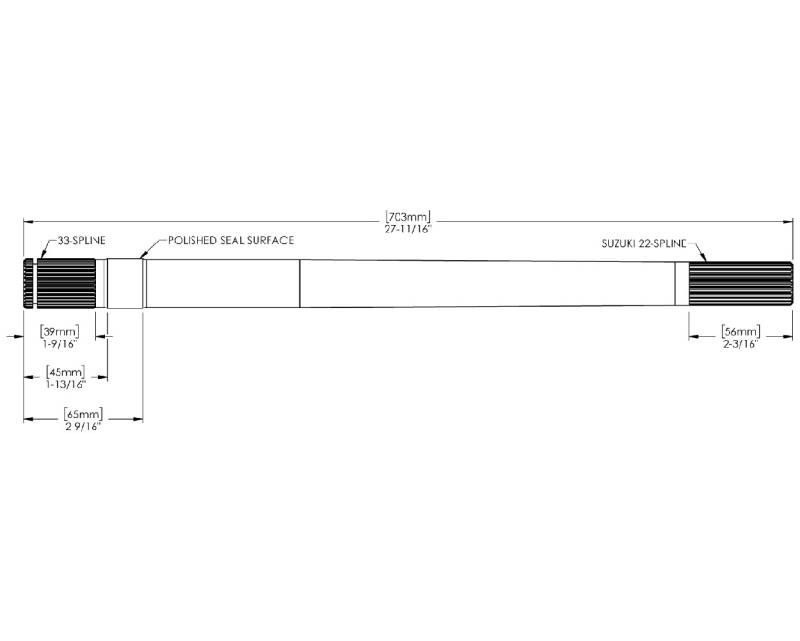

Long side length: 27-11/16" (703 mm)

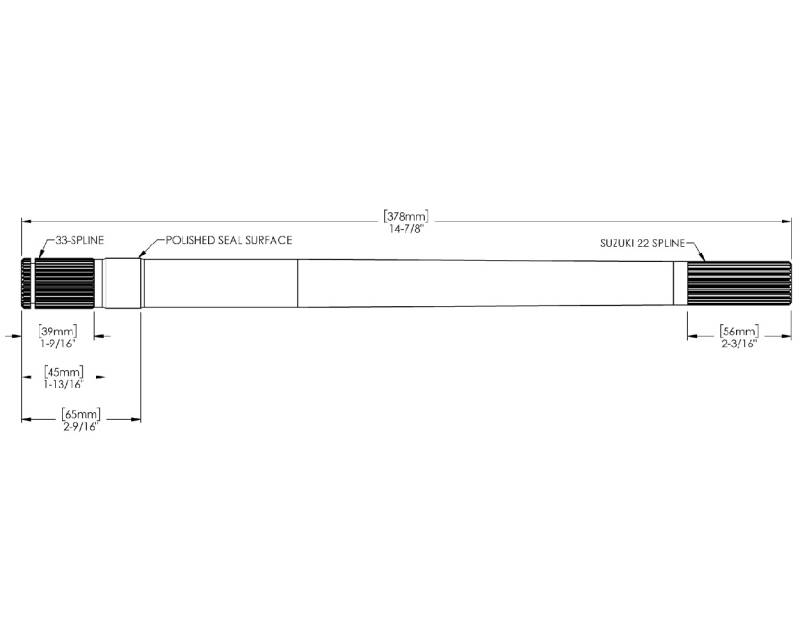

Short side length: 14-7/8" (378 mm)

Application Data

1986-1995 Suzuki Samurai
1993-1995 Suzuki Jimny JB31
