ROUGH COUNTRY 5 INCH LIFT KIT CHEVY/GMC 1500 (14-18)

RC-29130
Pricing: $1,249.95

Customize Your Item

- Select Configuration -
 * required
Qty:
Free Shipping

Description

What better way to deck out that brand new 2014-up GM 1500 you worked so hard for than with the aggressive stance and jaw-dropping ride height of Rough Country's brand-new 5-inch Suspension Lift for 2014 Chevy / GMC 1500 Pickups? This massive lift is designed to retain your stock track width! This affords your truck the ability to run up to an impressive 33-inch tire on factory 20-inch wheels, and gives you a nearly limitless choice in aftermarket wheels and tires that other kits just can't fit.

This kit ships with EVERYTHING you need to give your new truck the aggressive stance and capabilities it deserves; Stout upper strut spacers, a beefy front and rear skid plate, our Heavy Duty Front and Rear Crossmembers, and a set of differential and sway-bar drop brackets - all designed by our in-house Research and Development team with 100% laser-cut materials for the best possible fit on your vehicle.

Also included are a set of our Nitrogen charged N3 Shocks! Offering the best in balanced performance for on and off-road use, these shocks feature a 10-stage velocity sensitive valving custom tuned for this specific application. That means these shocks are specifically valved for use with this vehicle and lift combo, giving you unparalleled performance for any driving situation.

FEATURES

    • Increased ground clearance.
    • Maintains factory track width.
    • Can run factory 20-inch wheels.
    • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.



OPTIONAL N3 LOADED STRUTS



  • Includes pre-loaded coil
  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Engineered for lifted applications
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty





OPTIONAL V2 MONOTUBE SHOCKS



  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty



NOTES - IMPORTANT

  • Requires cutting and drilling.
  • Does NOT fit Hybrid eAssist models.
  • Does NOT fit GMC Denali models with Magnetic Ride Control.
  • If wider than 33x12.50 tires are used, offset wheels will be required and trimming may be required.
  • If truck is equipped with a mass damper on the front differential, the damper must be removed.

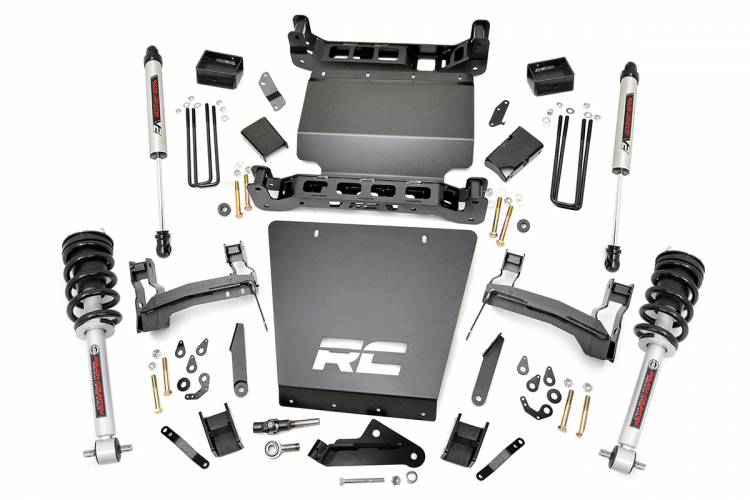

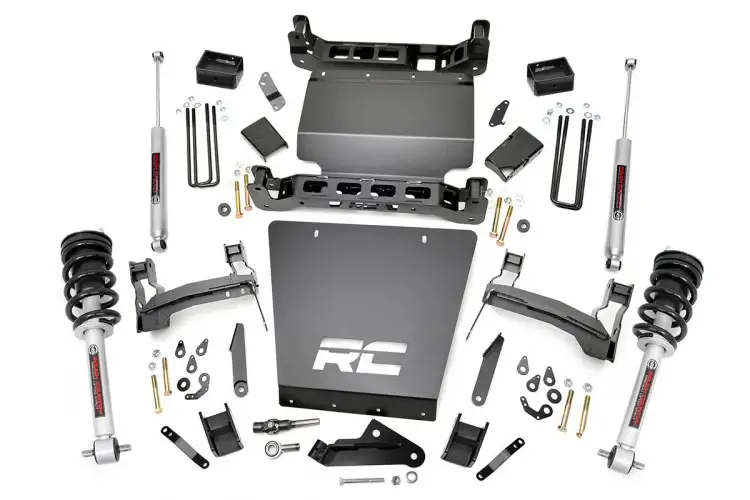

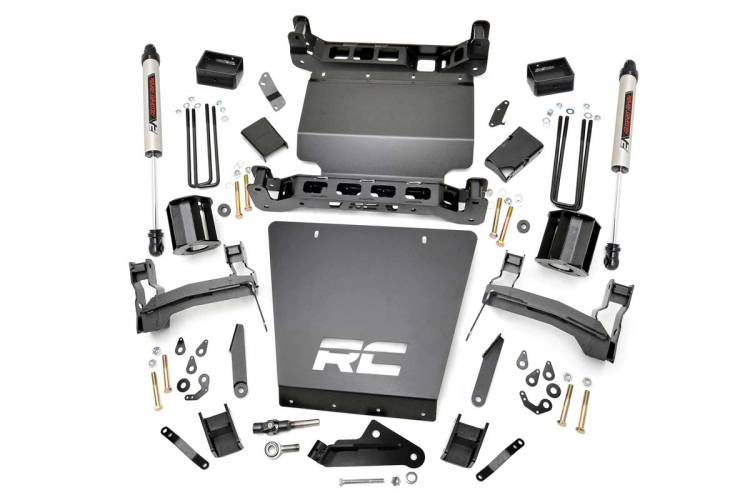

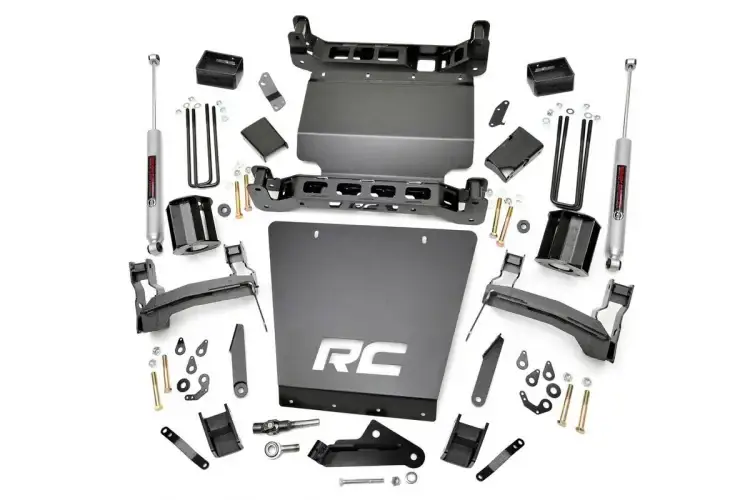

FRONT
  • Upper strut spacers
  • Optional: [+$220] - (2) Premium N3 Series Lifted Struts
  • Front crossmember
  • Rear crossmember
  • Control arm drop brackets
  • Differential drop brackets
  • Sway-bar drop brackets
  • Steering extension
  • Steering brace
  • Front skid plate
  • Lower skid plate
  • Hardware
REAR
  • Fabricated lift blocks
  • Brake line relocation brackets
  • U-bolts
  • Hardware
SHOCKS
  • (2) Premium N3 series [rear]
Est. Install Time 8-10 hours
2014-2018 4WD Chevy Silverado 1500
2014-2018 4WD GMC Sierra 1500
295/70R17 Factory 17 6x5.5 - -
305/70R17 17x9 6x5.5 +12 -
305/70R17 17x9 6x5.5 +18 -
33x12.50R17 17x9 6x5.5 +0 -
33x12.50R17 17x9 6x5.5 +1 -
33x12.50R17 17x9 6x5.5 +12 -
33x12.50R17 17x9 6x5.5 +18 -
285/65R18 Factory 18 6x5.5 - -
305/65R18 18x9 6x5.5 +12 -
305/65R18 18x9 6x5.5 +18 -
33x12.50R18 18x9 6x5.5 +0 -
33x12.50R18 18x9 6x5.5 +1 -
33x12.50R18 18x9 6x5.5 +12 -
33x12.50R18 18x9 6x5.5 +18 -
295/55R20 Factory 20 6x5.5 - 0.25" Spacer
305/55R20 20x9 6x5.5 +12 -
305/55R20 20x9 6x5.5 +18 -
33x12.50R20 20x9 6x5.5 +0 -
33x12.50R20 20x9 6x5.5 +1 -
33x12.50R20 20x9 6x5.5 +12 -
33x12.50R20 20x9 6x5.5 +18 -
