What better way to deck out that brand new 2014-up GM 1500 you worked so hard for than with the aggressive stance and jaw-dropping ride height of Rough Country's brand-new 7-inch Suspension Lift for 2014-up Chevy / GMC 1500 Pickups? This massive lift is designed to retain your stock track width! This affords your truck the ability to run up to an impressive 35-inch tire on factory 20-inch wheels, and gives you a nearly limitless choice in aftermarket wheels and tires that other kits just can't fit.
This kit ships with EVERYTHING you need to give your new truck the aggressive stance and capabilities it deserves; Stout upper strut spacers, a beefy front and rear skid plate, our Heavy Duty Front and Rear Crossmembers, and a set of differential and sway-bar drop brackets - all designed by our in-house Research and Development team with 100% laser-cut materials for the best possible fit on your vehicle. This whopping 7-inch Lift also comes with a set of rear 6-inch fabricated anti-wrap lift blocks that offer a huge boost while helping combat dreaded axle wrap issues on inferior big lifts.
Also included are a set of our Nitrogen charged N3 Shocks! Offering the best in balanced performance for on and off-road use, these shocks feature a 10-stage velocity sensitive valving custom tuned for this specific application. That means these shocks are specifically valved for use with this vehicle and lift combo, giving you unparalleled performance for any driving situation.
FEATURES
- Increased ground clearance
- Maintains stock track width.
- Can run factory 20-inch wheels.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
OPTIONAL N3 LOADED STRUTS
- Includes pre-loaded coil
- Maintains smooth, factory-like ride
- Increased ground clearance
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty

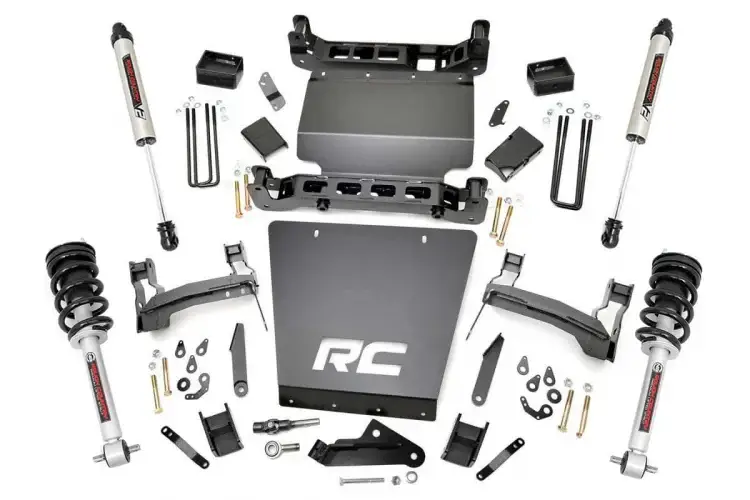

OPTIONAL V2 MONOTUBE SHOCKS
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty

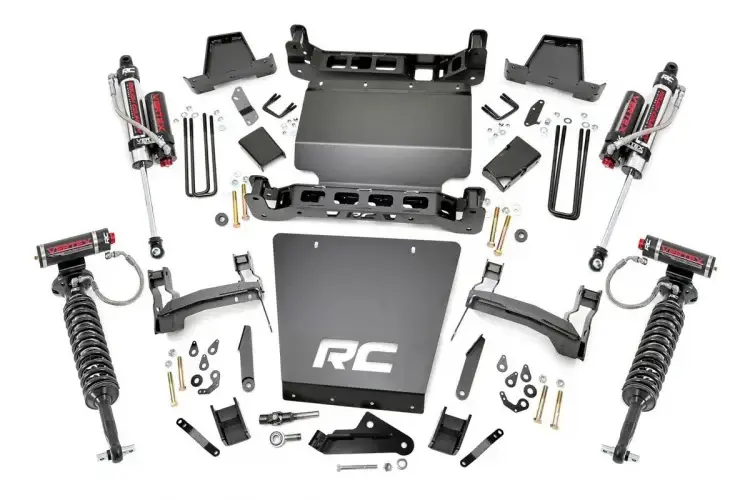

OPTIONAL VERTEX
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
NOTES - IMPORTANT
- Requires minor cutting and drilling.
- Does NOT fit models with stamped steel control arms.
- Does NOT fit Hybrid eAssist models.
- Does NOT fit GMC Denali models with Magnetic Ride Control.
- IMPORTANT! - Installation of larger tires will require a Rough Country Speedometer Calibrator 90009.
- If truck is equipped with a mass damper on the front differential, the damper must be removed.

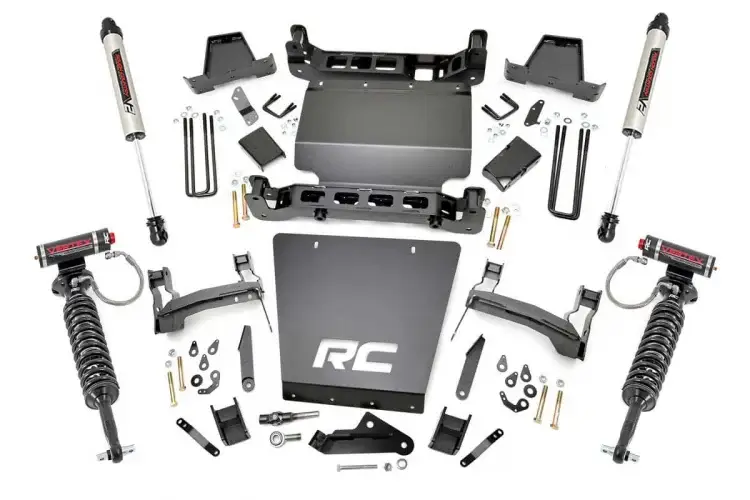

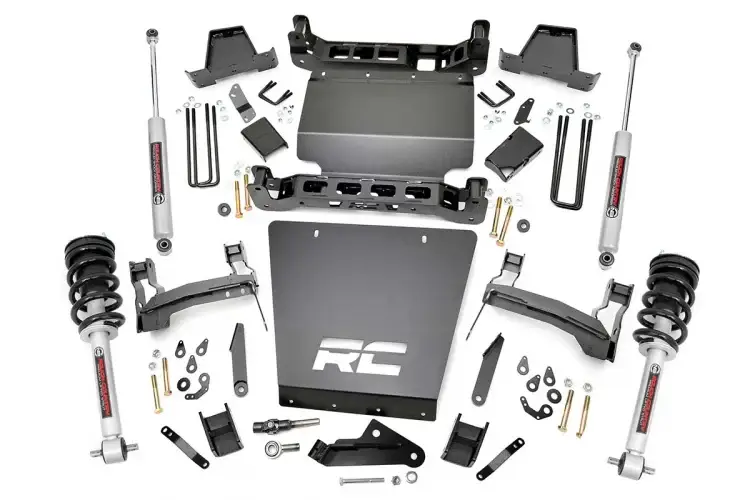

FRONT
- Upper strut spacers
- Lower strut spacers (Aluminum kits ONLY)
- Front crossmember
- Rear crossmember
- Control arm drop brackets
- Differential drop brackets
- Sway-bar drop brackets
- Steering extension
- Steering brace
- Front skid plate
- Lower skid plate
- Hardware
REAR
- Fabricated anti-wrap lift blocks
- Brake line relocation brackets
- U-bolts
- Hardware
SHOCKS
- (2) Premium N3 series [rear]
Est. Install Time |
8-10 hours
|
2014-2016 |
4WD |
Chevy |
Silverado 1500 |
2014-2016 |
4WD |
GMC |
Sierra 1500 |
295/70R18 |
Factory 18 |
6x5.5 |
- |
0.25" Spacer |
295/60R20 |
Factory 20 |
6x5.5 |
- |
0.25" Spacer |
35x12.50R17 |
17x9 |
6x5.5 |
+12 |
- |
35x12.50R17 |
17x9 |
6x5.5 |
+18 |
- |
35x12.50R18 |
18x9 |
6x5.5 |
+12 |
- |
35x12.50R18 |
18x9 |
6x5.5 |
+18 |
- |
35x12.50R20 |
20x9 |
6x5.5 |
+12 |
- |
35x12.50R20 |
20x9 |
6x5.5 |
+18 |
- |
35x12.50R20 |
20x10 |
6x5.5 |
-18 |
Minor Trimming |
35x12.50R20 |
20x10 |
6x5.5 |
-19 |
Minor Trimming |
35x12.50R20 |
20x10 |
6x5.5 |
-24 |
Minor Trimming |
35x12.50R20 |
20x10 |
6x5.5 |
-25 |
Minor Trimming |
35x12.50R22 |
22x10 |
6x5.5 |
-18 |
Minor Trimming |
35x12.50R22 |
22x10 |
6x5.5 |
-19 |
Minor Trimming |
35x12.50R22 |
22x10 |
6x5.5 |
-24 |
Minor Trimming |
35x12.50R22 |
22x10 |
6x5.5 |
-25 |
Minor Trimming |
