Zone Offroad 6" Suspension System 13-17 Dodge Ram 1500 - D40/D41

Zone Offroad 6" Lift Kit System fits 2013 -2017 Dodge Ram 1500 4WD Gas/Diesel.

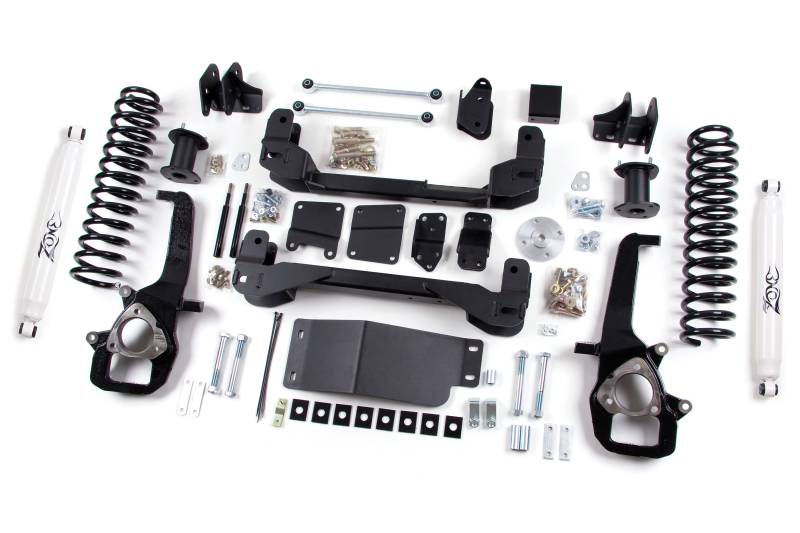

The main components of the Zone Offroad 2013 - 2016 Dodge 1500 6" Suspension Lift Kit System are front and rear crossmembers, strut spacers, and sway bar links that work together with the new extended steering knuckles and replacements tie rod ends. These components are designed to maintain proper handling characteristics and work with the factory traction control system. Unique to this system from the 09-11 models is an all new differential relocation system specifically designed for 2012 front differential housing. A differential skid plate is included for added strength and protection for trips off the beaten path.

Since many of the vehicles tested by Zone Offroad had a significant tail high stance from the factory this 6" lift kit system comes standard with 3" rear coil springs to help level the vehicle. Zone Offroad also offers a 5" rear lift depending on your desired stance. It's best to measure your truck before ordering to determine how much rear lift is needed to give your truck the attitude you intend to. Both the 3 and 5 inch rear lift systems include upper control arm relocation brackets to avoid unwanted pinion movement under load.

Make your 2013-16 Dodge Ram 1500 4WD stand out with a brand new, quality, yet affordable 6" suspension lift from Zone Offroad and be glad you did.

The NHTSA's Federal Motor Vehicle Safety Standard (FMVSS) No.126 requires all new passenger vehicles to include Electronic Stability Control (ESC) systems that meet certain standards that can be tested through a comprehensive series of evasive maneuvers. Aftermarket products must meet these standards as well.

Zone Offroad Products is leading the industry by independently testing all suspension kits to verify the kits are fully compliant with the stability control system requirements set by Federal Motor Vehicle Safety Standard (FMVSS) No. 126.

Featured Technology & Benefits
Front top strut spacer and preload spacer
Maintains handling and ride charateristics and works with factory stability control
3" or 5" rear lift option
Differential skid plate included
CNC machined steering knuckles

Important Notes!
Will not fit Mega Cab models.
Not recommended for AWD models.
Will not fit adjustable air suspension equipped models
These trucks are typically between 1" and 3" tail high from the factory. Please measure your trucks factory ride heights first and order the appropriate rear lift height.
TRX models will achieve approximately 1" of additional lift. This lift is not recommended for use on the TRX models due to possible CV shaft vibration caused by the additional lift. Instead, consider our 4" lift system for about 5" of lift or replace the TRX struts with standard struts for use with this system.

This product fits the following applications:

14-17 Dodge/Ram Ram 1500 4WD Diesel
13-17 Dodge/Ram Ram 1500 4WD Gas

Quick Specs

Front Lift Height: 6?
Front Lift Method: Upper Strut Mounts
Rear Lift Height: 3? / 5?
Rear Lift Method: Coil Springs
Install Time Hrs: 8-10
Difficulty Level 1-5: 3
Wheel Size: 17 x 9
Back Spacing: 4.5?
Max Tire Size: 37x12.50
Wheel Size: 18x9
Back Spacing: 5?
Max Tire Size: 37x12.50
Wheel Size: 20x9
Back Spacing: 5?
Max Tire Size: 37x12.50
